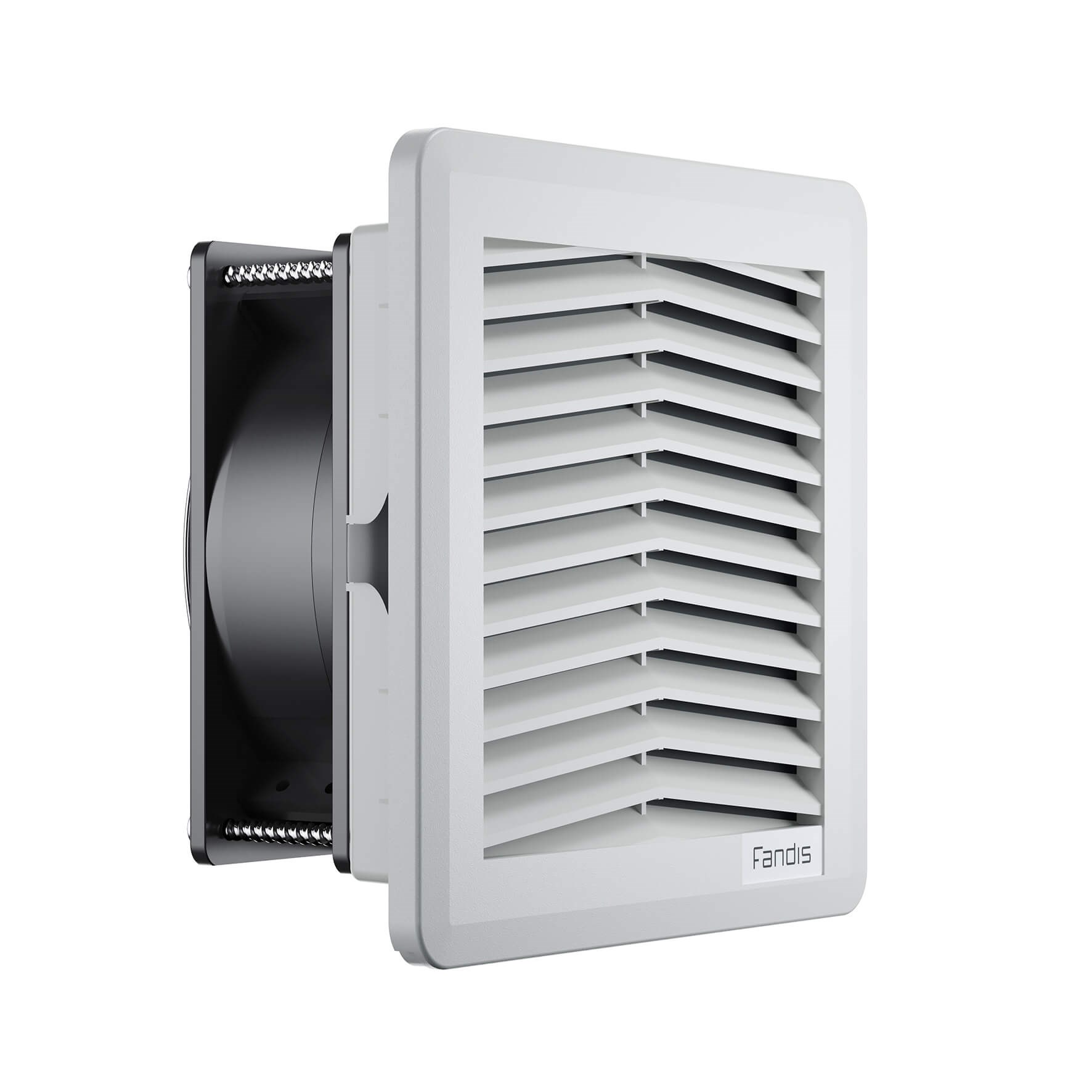

Fandis FF12A230UFR Fan Filter 47cu-m/h 52cu-m/h 230VAC IP54 150W 150H RAL7035 Light Grey

Product Code: FF12A230UFR

  • Airflow options: 47 or 52 cu-m/h
  • Power efficient at 17-18 W
  • Durable ABS casing, IP54 protection
  • Quiet operation: 46-49 dBA noise level
  • Standards: cCSAus, CE, cULus, UKCA
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Fan Filter
Brand FANDIS
Air Flow 47 cu-m/h, 52 cu-m/h
Airflow with Exhaust Filter 37 cu-m/h, 41 cu-m/h
Bearing Type Ball
Casing Material ABS
Colour Light Grey RAL 7035
Degree of Protection IP54
Height 150 mm
Length 150 mm
Noise Level 46 dBA, 49 dBA
Nominal Frequency 50/60 Hz
Operational Temperature -10 to 55 deg C
Rated Current 0.11 A, 0.1 A
Rated Operational Voltage 216-244 VAC
Rated Power 18 W, 17 W
Rated Voltage 230 VAC
Standards and Approvals cCSAus, CE, cULus, cURus, UKCA
Width 150 mm
Wire Cross Section 14-20 AWG

Description

<p>The Fan Filter Unit in question is a reliable choice for industrial and commercial settings, designed to meet the demands of various technical requirements. With its compact dimensions—150 mm in width, height, and length—it fits seamlessly into tight spaces without compromising performance.</p><p>This unit offers two airflow options: 47 cu-m/h and 52 cu-m/h, providing flexibility depending on your application needs. When paired with an exhaust filter, the airflow adjusts to 37 cu-m/h or 41 cu-m/h. This versatility ensures that the unit can adapt to different environments while maintaining efficiency.</p><p>Operating at a rated voltage of 230 VAC and supporting a range from 216-244 VAC, this fan filter unit is built for stability across varying power conditions. Its power consumption is efficient at either 18 W or 17 W with corresponding current ratings of 0.11 A and 0.1 A respectively, making it energy-conscious without sacrificing functionality.</p><p>For those concerned about durability in challenging environments, this unit boasts an IP54 degree of protection. This means it&amp;#39;s safeguarded against dust ingress as well as water splashes from any direction—ideal for harsher operational settings.</p><p>Noise levels are kept to a minimum with readings between 46 dBA and 49 dBA ensuring that operations remain unobtrusive—a key consideration for workplaces sensitive to noise pollution.</p><p>Constructed from ABS material in Light Grey RAL 7035, it not only provides robustness but also blends aesthetically within most industrial setups. The use of ball bearings further enhances longevity by reducing friction during operation which translates into lower maintenance needs over time.</p><p>Temperature resilience is another highlight; this unit operates efficiently between -10&amp;#176;C to +55&amp;#176;C catering to diverse climatic conditions found across Australian industries.</p><p>Installation flexibility is supported by accommodating wire cross sections ranging from 14-20 AWG allowing for straightforward connectivity during setup processes. </p><p>Compliance with standards such as cCSAus CE cULus cURus UKCA underscores its commitment to safety quality assurance giving you peace of mind regarding regulatory adherence both locally internationally.</p><p>In summary this Fan Filter Unit combines practicality reliability backed by comprehensive certifications making it suitable choice whether you&amp;#39;re upgrading existing systems or planning new installations where consistent air filtration matters most.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
