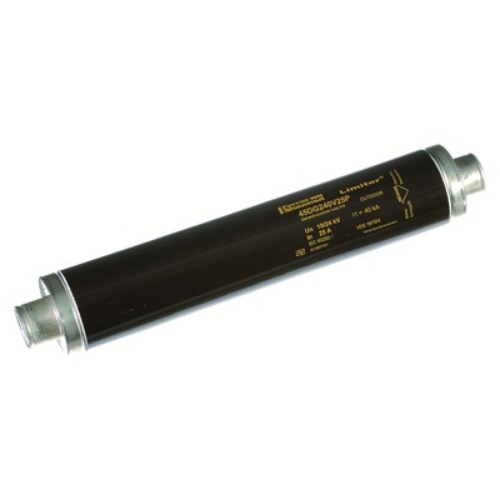

Mersen 45DB240V25P HV Fuse-Link 25A 24 kV 56mm Dia x 442mm L 63kA Medium Striker Striker 80N

Product Code: 45DB240V25P

  • 25 A, 24 kV HV fuse link
  • High breaking capacity of 63 kA
  • Ceramic body with silver-plated copper terminals
  • Striker indicator for easy status check
  • Clip mounting for secure installation
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Indication Striker 80N
Rated Current (A) 25
Rated Voltage AC (V) 24000
Weight (kg) 2.3
Breaking Capacity AC (kA) 63
Fuse Size (mm) 56D x 442L
Minimum Breaking Capacity (A) 93
Power Dissipation at In (W) 89
Clearing I²t at Rated Voltage (kA²s) 6
Product Type HV Fuse-Link
Brand MERSEN
Body Material Ceramic
Body Style Cylindrical
Breaking Capacity 63 kA
Connection/Terminal Material Silver Plated Copper
Contact Material Silver-Plated Copper
Fuse Size 56 mm Dia x 442 mm L
Indicators Striker 80N
Insulation Material Ceramic
Material Ceramic
Mounting Type Clip
Power Dissipation 89 W
Rated Current 25 A
Rated Voltage 24 kV
Standards and Approvals IEC 60282-1, VDE 0670 part 4, DIN 43625
Terminal Type Cylindrical
Weight 5.071 lb
