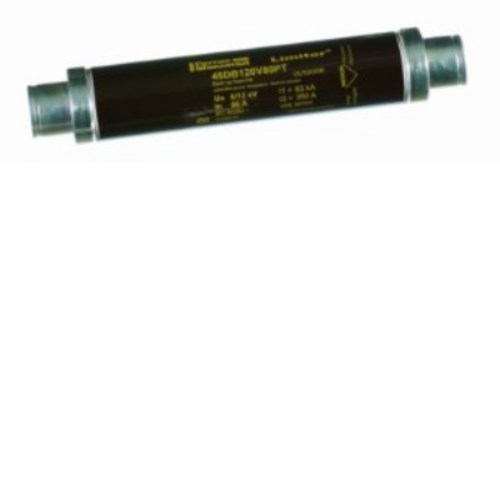

Mersen 45DB120V4P HV Fuse-Link 4A 12 kV 56mm Dia x 292mm L 63kA Medium Striker Striker 80N

Product Code: 45DB120V4P

  • Rated for 12 kV and 4 A applications
  • High breaking capacity of 63 kA
  • Compact size: 56 mm diameter, 292 mm length
  • Durable ceramic body with silver-plated copper terminals
  • Equipped with an 80N striker indicator
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Indication Striker 80N
Rated Current (A) 4
Rated Voltage AC (V) 12000
Weight (kg) 1.7
Breaking Capacity AC (kA) 63
Fuse Size (mm) 56D x 292L
Minimum Breaking Capacity (A) 22
Power Dissipation at In (W) 6
Clearing I²t at Rated Voltage (kA²s) 0.7
Product Type HV Fuse-Link
Brand MERSEN
Body Material Ceramic
Body Style Cylindrical
Breaking Capacity 63 kA
Connection/Terminal Material Silver Plated Copper
Contact Material Silver-Plated Copper
Fuse Size 56 mm Dia x 292 mm L
Indicators Striker 80N
Insulation Material Ceramic
Material Ceramic
Mounting Type Clip
Power Dissipation 6 W
Rated Current 4 A
Rated Voltage 12 kV
Standards and Approvals IEC 60282-1, VDE 0670 part 4, DIN 43625
Terminal Type Cylindrical
Weight 3.748 lb
