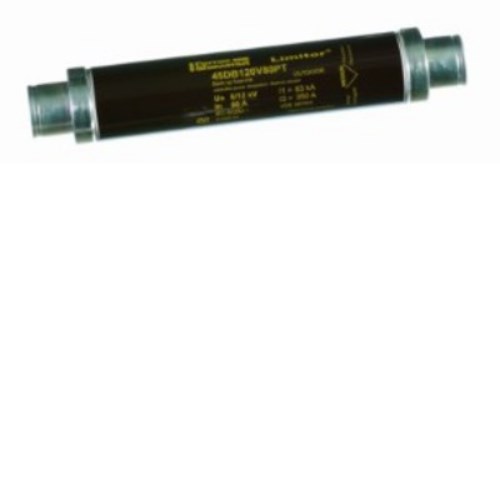

Mersen 45DB120V50P HV Fuse-Link 50A 12 kV 56mm Dia x 292mm L 63kA Medium Striker Striker 80N

Product Code: 45DB120V50P

  • Rated for 12 kV & 50 A
  • High breaking capacity of 63 kA
  • Striker indicator with 80N force
  • Durable ceramic body material
  • Silver plated copper terminals
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Indication Striker 80N
Rated Current (A) 50
Rated Voltage AC (V) 12000
Weight (kg) 1.7
Breaking Capacity AC (kA) 63
Fuse Size (mm) 56D x 292L
Minimum Breaking Capacity (A) 160
Power Dissipation at In (W) 70
Clearing I²t at Rated Voltage (kA²s) 50
Product Type HV Fuse-Link
Brand MERSEN
Body Material Ceramic
Body Style Cylindrical
Breaking Capacity 63 kA
Connection/Terminal Material Silver Plated Copper
Contact Material Silver-Plated Copper
Fuse Size 56 mm Dia x 292 mm L
Indicators Striker 80N
Insulation Material Ceramic
Material Ceramic
Mounting Type Clip
Power Dissipation 70 W
Rated Current 50 A
Rated Voltage 12 kV
Standards and Approvals IEC 60282-1, VDE 0670 part 4, DIN 43625
Terminal Type Cylindrical
Weight 3.748 lb
