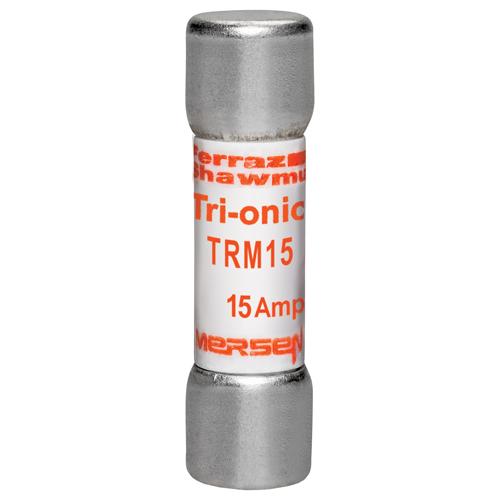

Mersen TRM15 Time Delay Midget Fuse 15A 250VAC 10mm Dia 38mm L 100kA Ferrule 10 in Dia x 38mm L Clip Mount

Product Code: TRM15

  • Rated for 15 A, 250 VAC
  • Clip mounting for easy installation
  • High breaking capacity of 100 kA
  • Tin plated copper terminals
  • Compact design: 10 mm dia x 38 mm length
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Body Size (mm) 10 x 38
Functionality Time Delay
Rated Current (A) 15
Rated Voltage AC (V) 250
Interrupting Rating AC (kA) 10
Product Type Time Delay Midget Fuse
Brand MERSEN
Body Material GMG
Body Size 10 in Dia x 38 mm L
Body Style Ferrule
Breaking Capacity 100 kA
Connection/Terminal Material Tin Plated Copper
Diameter 10 mm
Insulation Material GMG
Interrupt Rating 10 kA
Length 38 mm
Mounting Type Clip
Rated Current 15 A
Rated Frequency 50/60 Hz
Rated Voltage 250 VAC
Terminal Type Ferrule
Weight 0.013 lb

Description

The TRM time-delay midget ferrule type fuses are designed to protect small motors, small transformers, and other high inrush loads. They are also suitable for various 250 volt applications. These fuses have a voltage rating of 250VAC and a rated current of 15A. They can interrupt short circuit currents up to 10kA. Additionally, they are UL listed to standard 248-14.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
