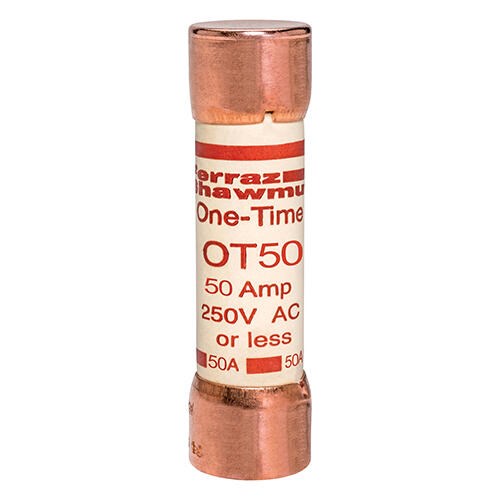

Mersen OT50 Fast-Acting General Purpose Fuse 50A 250VAC/DC Class K5 0.81 in Dia x 3 in L Ferrule Terminal

Product Code: OT50

  • Rated 50A for robust performance
  • Supports 250 VAC/VDC applications
  • Compact size: 0.81 in Dia x 3 in L
  • High breaking capacity of 50 kA
  • Easy clip mounting system
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Body Size (mm) 21 x 76
Functionality General Purpose
Rated Current (A) 50
Rated Voltage AC/DC (V) 250
Interrupting Rating AC (kA) 50
Interrupting Rating DC (kA) 20
Product Type Fast-Acting General Purpose Fuse
Brand MERSEN
Body Material Paper
Body Size 0.81 in Dia x 3 in L
Body Style Ferrule
Breaking Capacity 50 kA
Connection/Terminal Material Copper
Fuse Class Class K5
Insulation Material Paper
Mounting Type Clip
Rated Current 50 A
Rated Frequency 50/60 Hz
Rated Voltage 250 VAC/VDC
Terminal Type Ferrule
Weight 0.073 lb

Description

The One-Time OT general purpose fuses offer affordable protection for feeder and branch-circuits that supply lighting, heating, and other non-motor loads. These fuses have a voltage rating of 250V AC/DC and a rated current of 50A. They are capable of safely interrupting short circuit currents up to 50kA/AC and 20kA/DC in all ratings.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
