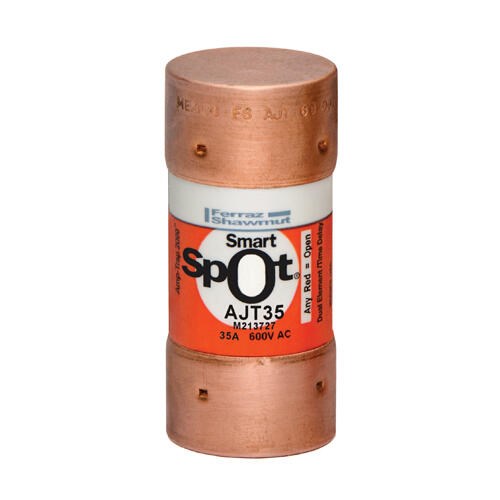

Mersen AJT35 Power Fuse 35A 600/400VAC/DC Class J 27mm Dia x 60.5mm L Ferrule Terminal Class J 200kA

Product Code: AJT35

  • Rated for 35 A current
  • Supports up to 600/400 VAC/VDC
  • High breaking capacity of 200 kA
  • Compact size: 27 mm Dia x 60.5 mm L
  • Clip mounting with ferrule terminals
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Rated Current (A) 35
Rated Voltage DC (V) 500
Rated Voltage AC (V) 600
Body Size (mm) 27 x 60
Functionality Time Delay
Interrupting Rating AC (kA) 200
Interrupting Rating DC (kA) 100
Product Type Time Delay Power Fuse
Brand MERSEN
Body Material GMG
Body Size 27 mm Dia x 60.5 mm L
Body Style Ferrule
Breaking Capacity 200 kA
Connection/Terminal Material Tin Plated Copper
Fuse Class Class J
Insulation Material GMG
Mounting Type Clip
Rated Current 35 A
Rated Frequency 50/60 Hz
Rated Voltage 600/400 VAC/VDC
Terminal Type Ferrule
Weight 0.0757 kg

Description

AJT Time delay Class 'J' ferrule type fuses are designed to handle typical motor and transformer inrush currents. They have time-delay characteristics and provide superior current-limiting ability. These fuses have a voltage rating of 600VAC/500VDC and a rated current of 35A.
