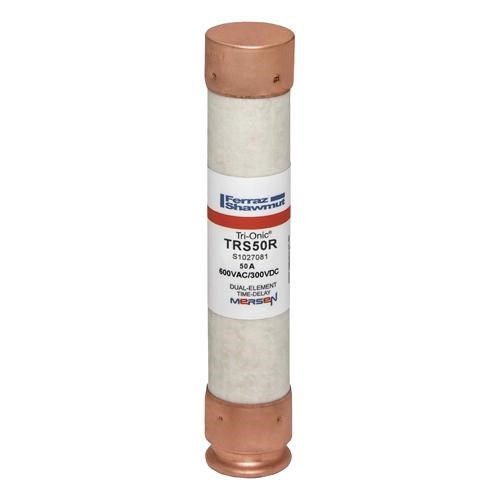

Mersen TRS50R Time Delay Current-Limiting Fuse 50A 600/300VAC/DC 27mmDia 139mm L Class RK5 200kA Clip Mount Ferrule

Product Code: TRS50R

  • Rated for 50 A current
  • Supports 600/300 VAC/VDC
  • High breaking capacity of 200 kA
  • Compact size: 139 mm length, 27 mm diameter
  • Easy clip mounting system
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Rated Current (A) 50
Rated Voltage DC (V) 300
Rated Voltage AC (V) 600
Body Size (mm) 27 x 139
Functionality Time Delay
Interrupting Rating AC (kA) 200
Interrupting Rating DC (kA) 20
Product Type Time Delay Current-Limiting Fuse
Brand MERSEN
Body Material Poly Tube
Body Size 1.06 in Dia x 5.5 in L
Body Style Ferrule long
Breaking Capacity 200 kA
Connection/Terminal Material Copper
Diameter 27 mm
Fuse Class Class RK5
Insulation Material PolyTube
Length 139 mm
Mounting Type Clip
Rated Current 50 A
Rated Frequency 50/60 Hz
Rated Voltage 600/300 VAC/VDC
Terminal Type Ferrule
Weight 0.319 lb

Description

The TRS-R current-limiting time-delay rejection ferrule type fuses are designed to provide overcurrent protection for motors, transformers, service entrance equipment, feeders, and branch-circuits. These fuses have a time-delay characteristic that can safely handle the harmless starting currents and inrush currents typically associated with motors and transformers. They have a voltage rating of 600VAC and a rated current of 50A.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
