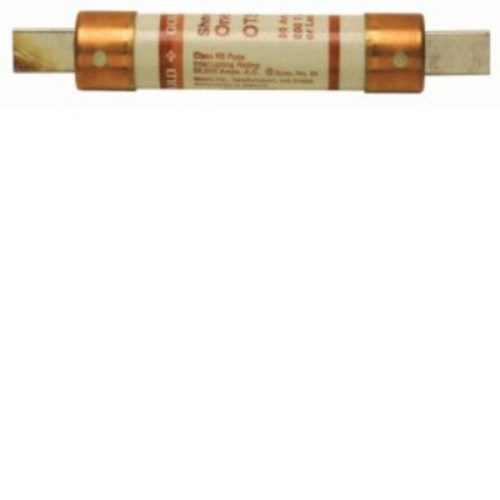

Mersen OTS110 Fast-Acting General Purpose Fuse 110A 600/300VAC/DC Class K5 1.81 in Dia x 9.63 in L Blade Terminal

Product Code: OTS110

  • Rated for 110 A current
  • Voltage: 600/300 VAC/VDC
  • Breaking capacity of 50 kA
  • Clip mounting for easy install
  • Class K5 fuse with blade terminals
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Rated Current (A) 110
Rated Voltage DC (V) 300
Rated Voltage AC (V) 600
Body Size (mm) 46 x 174
Functionality General Purpose
Interrupting Rating AC (kA) 50
Interrupting Rating DC (kA) 20
Product Type Fast-Acting General Purpose Fuse
Brand MERSEN
Body Material Poly Tube
Body Size 1.81 in Dia x 9.63 in L
Body Style Blade
Breaking Capacity 50 kA
Connection/Terminal Material Tin Plated Copper
Fuse Class Class K5
Insulation Material PolyTube
Mounting Type Clip
Rated Current 110 A
Rated Frequency 50/60 Hz
Rated Voltage 600/300 VAC/VDC
Terminal Type Blade
Weight 1.46 lb

Description

The One-Time OTS general purpose fuses offer affordable protection for feeder and branch-circuits that supply power to lighting, heating, and other non-motor loads. These fuses have a voltage rating of 600VAC/300VDC and a rated current of 110A. They are UL listed to standard 248-14.
