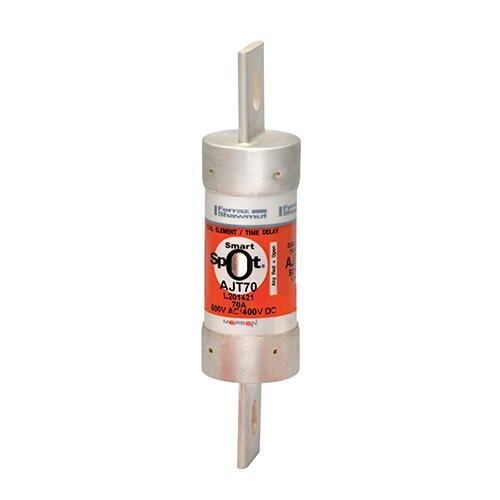

Mersen AJT70 Power Fuse 70A 600/400VAC/DC Class J 27mm Dia x 117.6mm L Blade Terminal Class J 200kA

Product Code: AJT70

  • Rated for 70 A, 600/400 VAC/VDC
  • High breaking capacity of 200 kA
  • Versatile clip or bolted mounting
  • Durable GMG body and insulation
  • Silver plated copper terminals
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Rated Current (A) 70
Rated Voltage DC (V) 500
Rated Voltage AC (V) 600
Body Size (mm) 29 x 67
Functionality Time Delay
Interrupting Rating AC (kA) 200
Interrupting Rating DC (kA) 100
Product Type Time Delay Power Fuse
Brand MERSEN
Body Material GMG
Body Size 27 mm Dia x 117.6 mm L
Body Style Bolted Tag
Breaking Capacity 200 kA
Connection/Terminal Material Silver Plated Copper
Fuse Class Class J
Insulation Material GMG
Mounting Type Clip, Bolted
Rated Current 70 A
Rated Frequency 50/60 Hz
Rated Voltage 600/400 VAC/VDC
Terminal Type Blade
Weight 0.1093 kg

Description

AJT Time delay Class 'J' ferrule type fuses are designed to handle typical motor and transformer inrush currents. They have time-delay characteristics and provide superior current-limiting ability. These fuses have a voltage rating of 600VAC/500VDC and a rated current of 70A.
