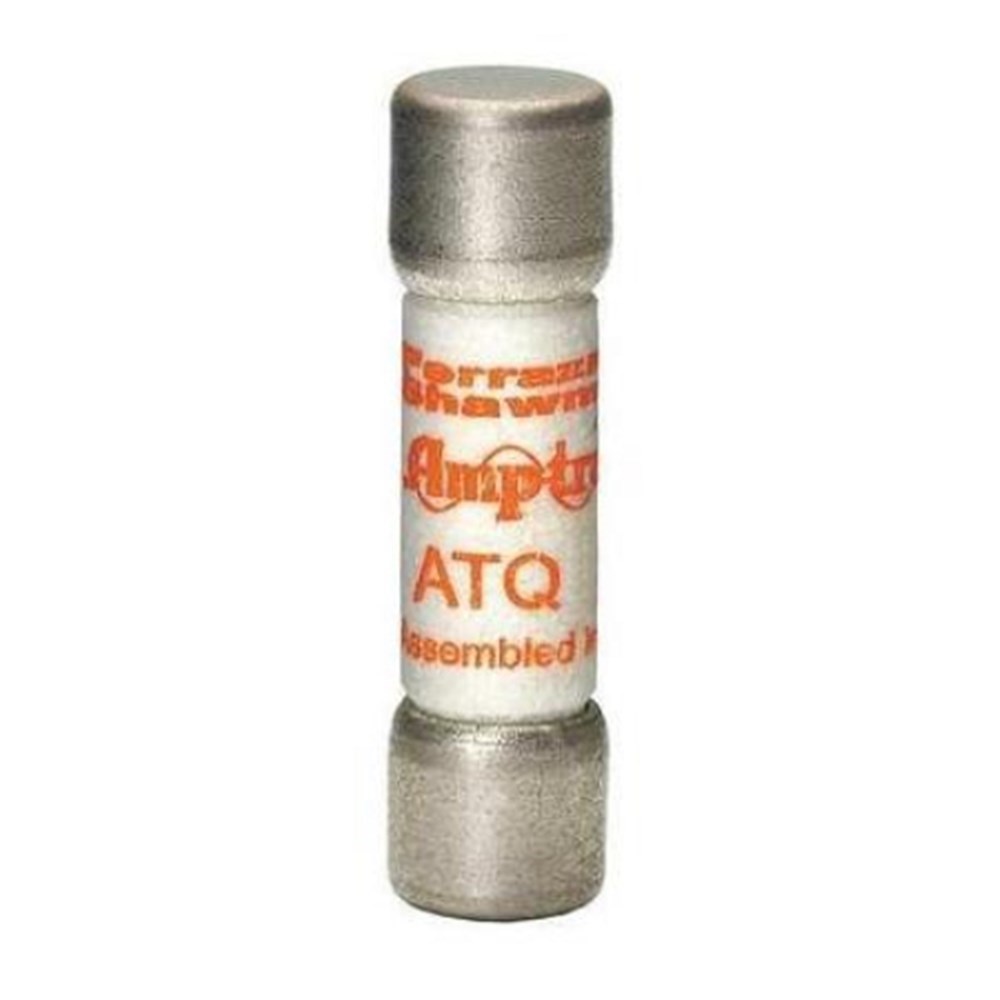

Mersen ATQ8 Time Delay Midget Fuse 8A 500VAC 0.41 in Dia 1.5 in L 10kA Interrupt Ferrule

Product Code: ATQ8

  • Rated for 8 A current
  • Supports up to 500 VAC
  • Compact, 1.5 in length
  • Clip mounting type
  • Tin plated copper terminals
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Body Size (mm) 10 x 38
Functionality Time Delay
Rated Current (A) 8
Rated Voltage AC (V) 500
Interrupting Rating AC (kA) 10
Product Type Time Delay Midget Fuse
Brand MERSEN
Body Material GMG
Body Style Ferrule
Connection/Terminal Material Tin Plated Copper
Diameter 0.41 in
Insulation Material GMG
Interrupt Rating 10 kA
Length 1.5 in
Mounting Type Clip
Rated Current 8 A
Rated Frequency 50/60 Hz
Rated Voltage 500 VAC
Terminal Type Ferrule
Weight 0.014 lb

Description

ATQ midget time-delay ferrule type fuses are ideal for providing additional protection to lighting, solenoid, motor, and transformer circuits. These fuses have a voltage rating of 500VAC and a rated current of 8A. They can interrupt short circuit currents up to 10kA. Additionally, they are UL listed to standard 248-14.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
