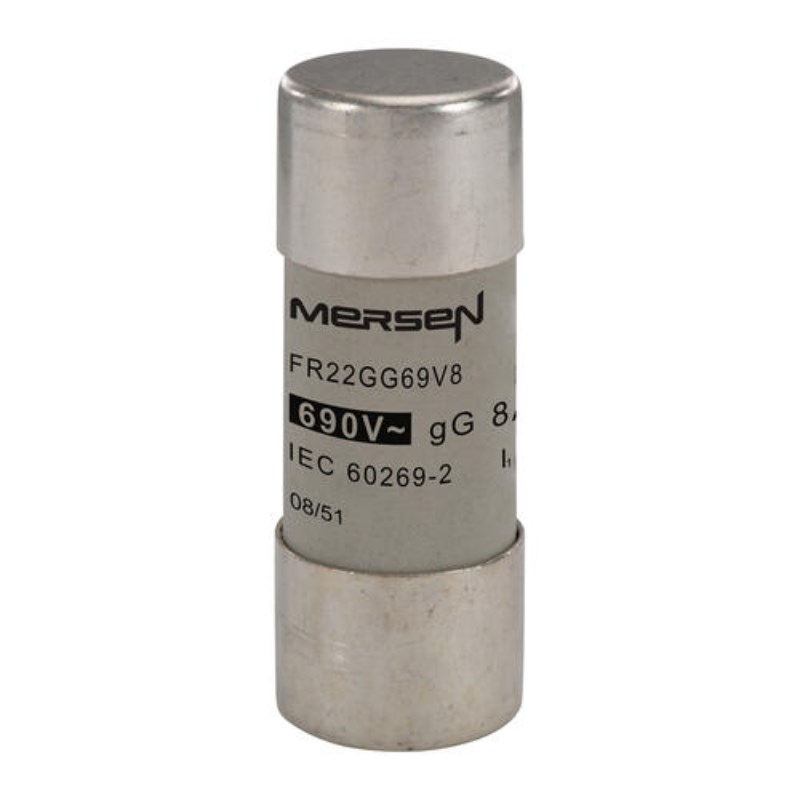

Mersen 22G08 Fuse Link 8A 690VAC 22.2mm Dia x 58mm L Cylindrical 120kA Ceramic gG

Product Code: 22G08

  • Rated for 8 A current handling
  • Supports up to 690 VAC voltage
  • High breaking capacity of 120 kA
  • Compact size: 22.2 mm Dia x 58 mm L
  • Durable ceramic body with silver-plated copper contacts
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Rated Current (A) 8
Rated Voltage DC (V) 250
Rated Voltage AC (V) 690
Weight (kg) 0.054
Breaking Capacity AC (kA) 120
Breaking Capacity DC (kA) 100
Utilisation Category gG
Fuse Size (mm) 22.2D x 58L
Power Dissipation at In (W) 1.6
Product Type Fuse Link
Brand MERSEN
Body Style Cylindrical
Breaking Capacity 120 kA
Contact Material Silver Plated Copper
Fuse Size 22.2 mm Dia x 58 mm L
Material Ceramic
Rated Current 8 A
Rated Power 1.6 W
Rated Voltage 690 VAC
Standards and Approvals IEC 60269-1, IEC 60269-2
Weight 0.054 kg

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
