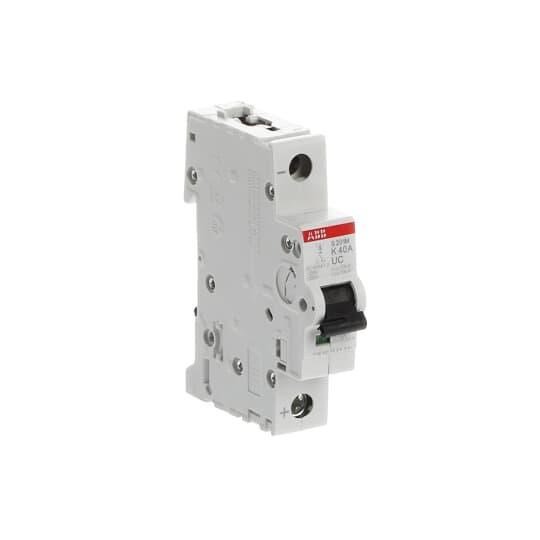

ABB S201MK40UC Miniature Circuit Breaker 10kA at 230VAC 1-P 40A 230/240VAC K-Curve

Product Code: S201MK40UC

  • Rated current of 40 A for reliable performance
  • 10 kA breaking capacity at 230 VAC
  • Compact design: 17.5 mm width
  • Screw clamp terminals for secure connections
  • Complies with CSA, IEC/EN, UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Poles 1P
Breaking Capacity (kA) 10 @230 V AC
Current Rating (A) 40
Family S200MUC
AC Voltage (V) 230/240
DC Voltage (V) 220
Icn-Rated Short Circuit Capacity (kA) 10
Inc-Rated Conditional Short Circuit Capacity (kA) 10
Impulse Withstand Voltage (kV/1.2µS) 4
Product Type Miniature Circuit breaker
Brand ABB
Application Industrial
Breaking Capacity 10 kA at 230 VAC
Collection S200MUC
Curve Type K
Depth 69 mm
Height 85 mm
Housing Colour RAL 7035 Grey
Impulse Voltage 4 kV
Number of Poles 1
Power Loss 3.76 W
Rated Current 40 A
Rated Frequency 50/60 Hz
Rated Voltage 230/240 VAC
Short Circuit Capacity 10 kA
Standards and Approvals CSA 22.2 No. 235, IEC/EN 60947-2, UL 1077
Terminal Type Screw Clamp
Tightening Torque 2.8 N-m
Trip Curve K Curve
Width 17.5 mm
