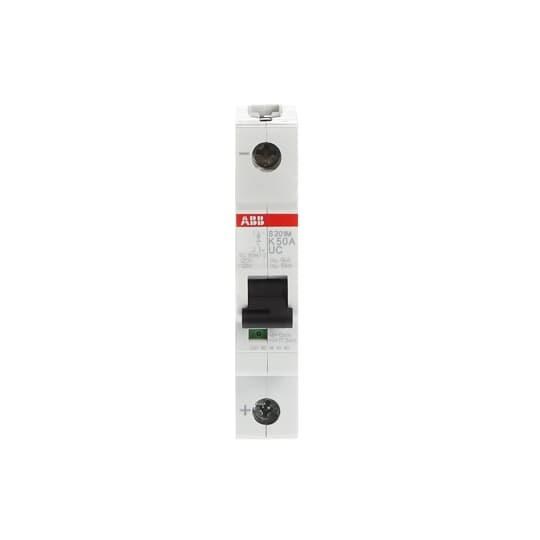

ABB S201MK50UC Miniature Circuit Breaker 10kA at 230VAC 1-P 50A 230/240VAC K-Curve

Product Code: S201MK50UC

  • 50 A rated current for reliable protection
  • Single pole design, compact 17.5 mm width
  • High breaking capacity of 10 kA at 230 VAC
  • Screw clamp terminals for secure connections
  • Meets CSA, IEC/EN, and UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Poles 1P
Breaking Capacity (kA) 10 @230 V AC
Current Rating (A) 50
Family S200MUC
AC Voltage (V) 230/240
DC Voltage (V) 220
Icn-Rated Short Circuit Capacity (kA) 10
Inc-Rated Conditional Short Circuit Capacity (kA) 10
Impulse Withstand Voltage (kV/1.2µS) 4
Product Type Miniature Circuit breaker
Brand ABB
Application Industrial
Breaking Capacity 10 kA at 230 VAC
Collection S200MUC
Curve Type K
Depth 69 mm
Height 85 mm
Housing Colour RAL 7035 Grey
Impulse Voltage 4 kV
Number of Poles 1
Power Loss 4.03 W
Rated Current 50 A
Rated Frequency 50/60 Hz
Rated Voltage 230/240 VAC
Short Circuit Capacity 10 kA
Standards and Approvals CSA 22.2 No. 235, IEC/EN 60947-2, UL 1077
Terminal Type Screw Clamp
Tightening Torque 2.8 N-m
Trip Curve K Curve
Width 17.5 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
