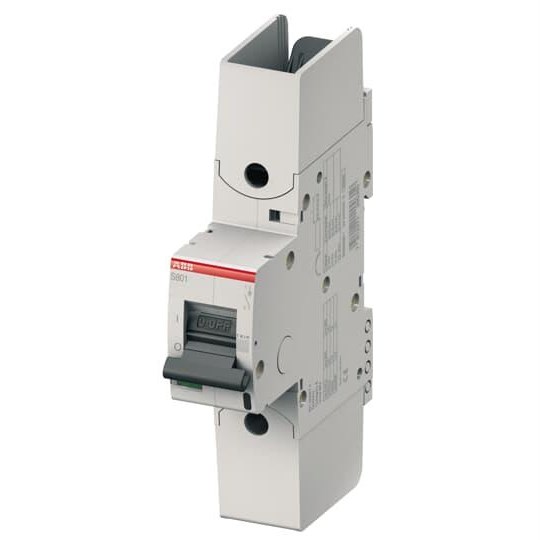

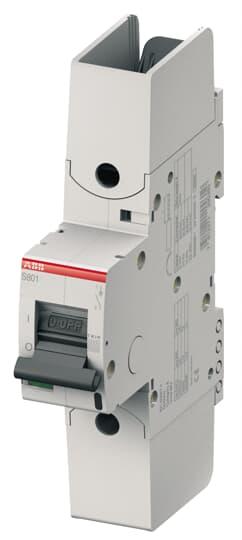

ABB S801HVK20 High Performance Miniature Circuit Breaker 4kA at 1000VAC 1-P 20A 580/1000VAC K-Curve

Product Code: S801HVK20

  • Rated for 20 A current handling
  • Handles voltages up to 1000 VAC
  • Single-pole with K release type
  • Breaking capacity of 4 kA at 1000 VAC
  • Compliant with AS/NZS 60947-2, UL 1077 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Cable Cross Section - Solid/Stranded (mm²) Top/Bottom - 50/50
Cable Cross Section - Flexible (mm²) Top/Bottom - 70/70
Dimensions (mm) 27W x 142H x 82.5D
No. of Poles 1
Pole Width (mm) 27
Power Loss (W) 3.5
Rated Conditional Short-Circuit Current - Inc (kA) 4
Pollution Degree 2
Rated Current (A) 20
Rated Frequency (Hz) 50
Rated Insulation Voltage (V) 1000
Rated Impulse Withstand Voltage (kV) 8
Rated Short-Circuit Capacity - Icn (kA) 2.5
Rated Operational Voltage AC (V) 580/1000
Breaking Capacity 230V AC - Icu (kA) 4
Rated Voltage AC (V) 1000
Voltage Type AC
Rated Voltage (V) 230
Minimum Operational Voltage AC (V) 12
Width in Number of Modular Spacings 1.5
Minimum Temperature (°C) -25
Poles 1P
Breaking Capacity (kA) 4 @1000 V AC
Current Rating (A) 20
Family S800HV
AC Voltage (V) 580/1000
Icn-Rated Short Circuit Capacity (kA) 2.5
Inc-Rated Conditional Short Circuit Capacity (kA) 4
Impulse Withstand Voltage (kV/1.2µS) 8
Built-in Depth (mm) 82.5
No. of Protected Poles 1
Product Type High Performance Circuit breaker
Brand ABB
Series S800HV
Application Commercial and Industrial
Breaking Capacity 4 kA at 1000 VAC
Cable Cross Section 50 sq-mm Top, 50 sq-mm Bottom
Collection S800HV
Current Limiting Class 3
Curve Type K
Degree of Pollution IP2
Degree of Protection IP20
Depth 82.5 mm
Height 142 mm
Housing Colour RAL 7035 Grey
Housing Material Insulation Group I, RAL 7035
Impulse Voltage 8 kV
Mounting Type DIN Rail
Number of Poles 1
Number of Protected Poles 1
Operational Temperature -25 deg C
Overvoltage Category 3
Pole Width 27 mm
Power Loss 3.5 W
Rated Current 20 A
Rated Frequency 50 Hz
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 1000 V
Rated Short Circuit Current 4 kA
Rated Voltage 580 VAC, 1000 VAC
Release Type K
Short Circuit Capacity 2.5 kA
Standards and Approvals AS/NZS 60947-2, UL 1077
Terminal Type Screw Clamp
Tightening Torque 3.5 N-m
Trip Curve K Curve
Width 27 mm

Description

The S801HV-K20 is a 1-pole High Performance Circuit breaker with K-characteristic, with cage terminal, long separating plates and a rated current of 20 A. It is a current limiting device with a maximum breaking capacity of 4kA at 580/1000V. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S801HV-K20 complies with IEC/EN 60947-2 and allows the use for industrial applications. It can be used worldwide. The extensive range of accessory makes the use of S801HV-K20 more comfortable. Due to the fast arc extinction of S801HV-K20 your application will be secured.
