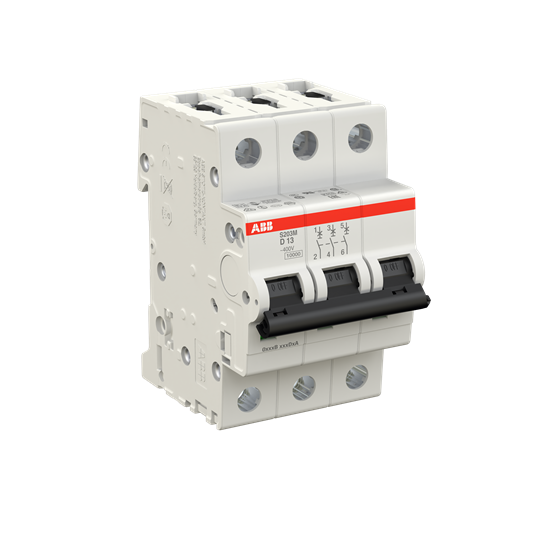

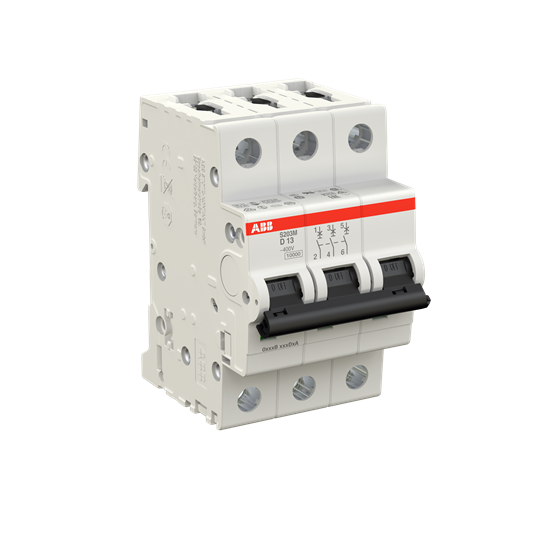

Product Code: S203MD13

13A MCB with 3 poles for robust protection
High breaking capacity of 15 kA at 400 VAC
Screw clamp terminals with 2.8 N-m torque
Complies with AS/NZS and UL standards
Suitable for commercial and industrial use

Specifications

Cable Cross Section - Solid/Stranded (mm²)	Top/Bottom - 35/35
Cable Cross Section - Flexible (mm²)	Top/Bottom - 25/25
Busbar Cross Section (mm²)	Top/Bottom - 10/10
No. of Poles	3P
Pole Width (mm)	17.5
Power Loss (W)	2.2/Pole
Rated Conditional Short-Circuit Current - Inc (kA)	20
Pollution Degree	3
Rated Current (A)	13
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	440
Rated Impulse Withstand Voltage (kV)	4
Rated Short-Circuit Capacity - Icn (kA)	10
Rated Operational Voltage AC (V)	400
Breaking Capacity 400V AC - Icu (kA)	15
Maximum Operational Voltage AC (V)	440
Minimum Operational Voltage AC (V)	12
Minimum Operational Voltage DC (V)	12
Dimensions (mm)	88H x 69D x 52.5W
Rated Voltage AC (V)	400
Poles	3P
Breaking Capacity (kA)	15 @400 V AC
Current Rating (A)	13
Family	S200M
AC Voltage (V)	400/415
Icn-Rated Short Circuit Capacity (kA)	10
Inc-Rated Conditional Short Circuit Capacity (kA)	20
Impulse Withstand Voltage (kV/1.2µS)	4
Product Type	Miniature Circuit Breaker
Brand	ABB
Series	S200M
Ambient Temperature	-25 to 55 deg C Operation, -40 to 70 deg C Storage
Application	Commercial and Industrial
Breaking Capacity	15 kA at 400 VAC
Bulbar Cross Section	10 sq-mm Top, 10 sq-mm Bottom
Cable Cross Section	35 sq-mm Top, 35 sq-mm Bottom
Collection	S200M
Curve Type	D
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	69 mm
Electrical Durability	20000 Cycles
Height	88 mm
Housing Colour	RAL 7035 Grey
Housing Material	Insulation Group II, RAL 7035
Impulse Voltage	4 kV
Mounting Type	DIN Rail
Number of Poles	3
Pole Width	17.5 mm
Power Loss	2.2 W
Rated Current	13 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	440 V
Rated Short Circuit Current	20 kA
Rated Voltage	400/415 VAC
Short Circuit Capacity	10 kA
Standards and Approvals	AS/NZS 60898-1, AS/NZS 60947-2, UL 1077
Terminal Type	Screw Clamp
Tightening Torque	2.8 N-m
Trip Curve	D Curve
Width	52.5 mm

Description

The ABB Miniature Circuit Breaker is a reliable and efficient solution for commercial and industrial applications. With a 10kA breaking capacity at 400VAC and 15kA at 125VDC, it provides robust protection against short circuits and thermal overload. This 3-pole circuit breaker has a rating of 13A and features D curve protection. Trust ABB for high-quality circuit breakers that deliver superior performance in demanding environments.
