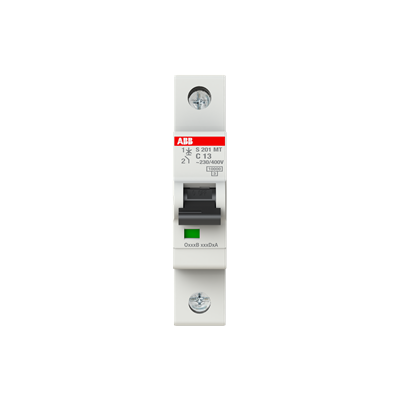

ABB S201MT-C13 Miniature Circuit Breaker 11.3kA 1-P 13A 230/400VAC C-Curve

Product Code: S201MT-C13

  • Rated for 13 A with a 4 kV impulse withstand
  • Compact design: 17.5 mm width, DIN Rail mount
  • IP20 protection; screw clamp terminals
  • Meets IEC/EN standards for safety and performance
  • Operational temp range: -25 to 55°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Miniature Circuit Breaker
Brand ABB
Ambient Temperature -25 to 55 deg C Operation, -40 to 70 deg C Storage
Breaking Capacity 11.3 kA
Curve Type C
Degree of Pollution IP3
Degree of Protection IP20
Depth 69 mm
Electrical Durability 20000 Cycles
Height 88 mm
Housing Colour RAL 7035 Grey
Mounting Type DIN Rail
Number of Poles 1
Power Loss 2.3 W
Rated Current 13 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 440 V
Rated Voltage 230/400 VAC
Short Circuit Capacity 10 kA
Standards and Approvals IEC/EN 60898-1, IEC/EN 60947-2
Terminal Type Screw Clamp
Tightening Torque 2.8 N-m
Width 17.5 mm
