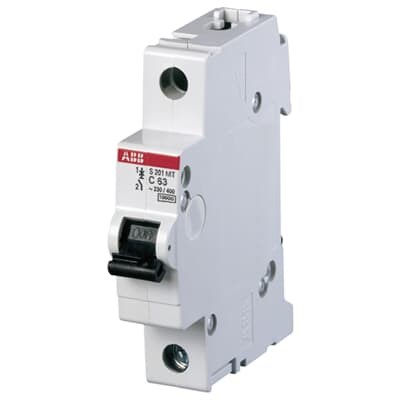

ABB S201MT-C63 Miniature Circuit Breaker 20kA 1-P 63A 230/400VAC C-Curve

Product Code: S201MT-C63

  • Rated current of 63 A for reliable performance
  • High breaking capacity of 20 kA
  • Compact design: 17.5 mm width, DIN rail mount
  • Operates in temperatures from -25°C to 55°C
  • Complies with IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Miniature Circuit Breaker
Brand ABB
Ambient Temperature -25 to 55 deg C Operation, -40 to 70 deg C Storage
Breaking Capacity 20 kA
Curve Type C
Degree of Pollution IP3
Degree of Protection IP20/IP40
Depth 69 mm
Electrical Durability 10000 Cycles
Height 88 mm
Housing Colour RAL 7035 Grey
Mounting Type DIN Rail
Number of Poles 1
Power Loss 4.8 W
Rated Current 63 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 440 V
Rated Voltage 230/400 VAC
Short Circuit Capacity 6 kA
Standards and Approvals IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Terminal Type Screw Clamp
Tightening Torque 2.8 N-m
Width 17.5 mm
