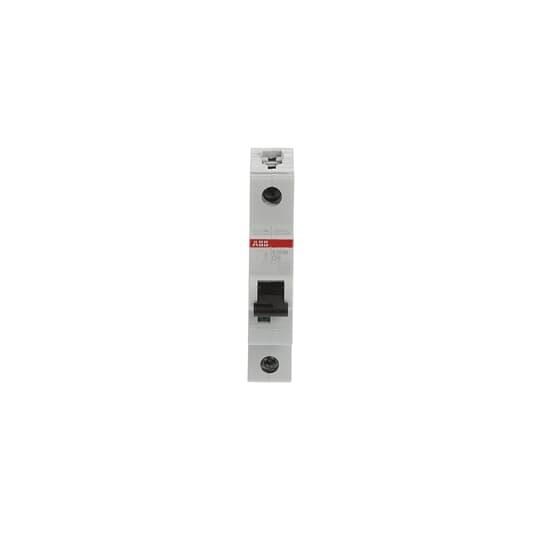

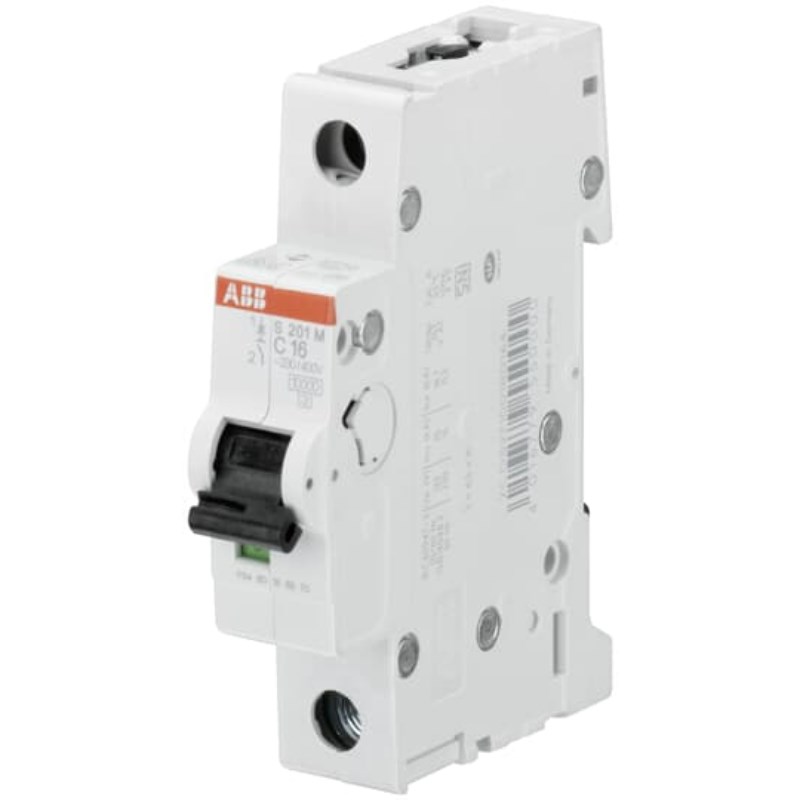

ABB S201MD6 Miniature Circuit Breaker 15kA at 230VAC 1-P 6A 230/400VAC D-Curve

Product Code: S201MD6

  • Rated current of 6 A with 15 kA breaking capacity
  • Supports 230/400 VAC, IP20 protection
  • Compact design: 17.5 mm width, DIN rail mount
  • Complies with AS/NZS and UL standards
  • Durable with up to 20000 electrical cycles
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Cable Cross Section - Solid/Stranded (mm²) Top/Bottom - 35/35
Cable Cross Section - Flexible (mm²) Top/Bottom - 25/25
Busbar Cross Section (mm²) Top/Bottom - 10/10
Dimensions (mm) 88H x 69D x 17.5W
No. of Poles 1P
Pole Width (mm) 17.5
Power Loss (W) 1.9/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 15
Pollution Degree 3
Rated Current (A) 6
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) 440
Rated Impulse Withstand Voltage (kV) 4
Rated Short-Circuit Capacity - Icn (kA) 10
Rated Operational Voltage AC (V) 230/400
Maximum Operational Voltage DC (V) 72
Maximum Operational Voltage AC (V) 253
Minimum Operational Voltage AC (V) 12
Minimum Operational Voltage DC (V) 12
Breaking Capacity 230V AC - Icu (kA) 15
Rated Voltage AC (V) 230
Poles 1P
Breaking Capacity (kA) 15 @230 V AC
Current Rating (A) 6
Family S200M
AC Voltage (V) 230/400
Icn-Rated Short Circuit Capacity (kA) 10
Inc-Rated Conditional Short Circuit Capacity (kA) 15
Impulse Withstand Voltage (kV/1.2µS) 4
Product Type Miniature Circuit Breaker
Brand ABB
Series S200M
Ambient Temperature -25 to 55 deg C Operation, -40 to 70 deg C Storage
Application Commercial and Industrial
Breaking Capacity 15 kA at 230 VAC
Bulbar Cross Section 10 sq-mm Top, 10 sq-mm Bottom
Cable Cross Section 35 sq-mm Top, 35 sq-mm Bottom
Collection S200M
Curve Type D
Degree of Pollution IP3
Degree of Protection IP20
Depth 69 mm
Electrical Durability 20000 Cycles
Height 88 mm
Housing Colour RAL 7035 Grey
Housing Material Insulation Group II, RAL 7035
Impulse Voltage 4 kV
Mounting Type DIN Rail
Number of Poles 1
Pole Width 17.5 mm
Power Loss 1.9 W
Rated Current 6 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 440 V
Rated Short Circuit Current 15 kA
Rated Voltage 230/400 VAC
Short Circuit Capacity 10 kA
Standards and Approvals AS/NZS 60898-1, AS/NZS 60947-2, UL 1077
Terminal Type Screw Clamp
Tightening Torque 2.8 N-m
Trip Curve D Curve
Width 17.5 mm

Description

The ABB Miniature Circuit Breaker is designed for commercial and industrial use. It offers 10kA protection at 230VAC and 15kA protection at 60VDC. With a single pole and a rating of 6A, it provides D curve protection against both short circuits and thermal overload.
