Product Code: S802SC20

Rated current of 20 A for reliable protection
High breaking capacity of 50 kA at 400 VAC
Dual pole design with IP20 protection
Suitable for commercial and industrial use
Complies with IEC/EN and UL standards

Specifications

Cable Cross Section - Solid/Stranded (mm²)	Top/Bottom - 50/50
Cable Cross Section - Flexible (mm²)	Top/Bottom - 70/70
Dimensions (mm)	95H x 82.5D x 54W
No. of Poles	2P
Pole Width (mm)	27
Power Loss (W)	3.5/Pole
Rated Conditional Short-Circuit Current - Inc (kA)	50
Pollution Degree	3
Rated Current (A)	20
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	690
Rated Impulse Withstand Voltage (kV)	8
Rated Operational Voltage DC (V)	250
Rated Short-Circuit Capacity - Icn (kA)	25
Rated Operational Voltage AC (V)	400/690
Breaking Capacity 400V AC - Icu (kA)	50
Maximum Operational Voltage DC (V)	250
Maximum Operational Voltage AC (V)	690
Rated Voltage AC (V)	400
Poles	2P
Breaking Capacity (kA)	50 @400 V AC
Current Rating (A)	20
Family	S800S
AC Voltage (V)	400/690
DC Voltage (V)	250
Icn-Rated Short Circuit Capacity (kA)	25
Inc-Rated Conditional Short Circuit Capacity (kA)	50
Impulse Withstand Voltage (kV/1.2µS)	8
Product Type	High Performance Circuit breaker
Brand	ABB
Series	S800S
Application	Commercial and Industrial
Breaking Capacity	50 kA at 400 VAC
Cable Cross Section	50 sq-mm Top, 50 sq-mm Bottom
Collection	S800S
Curve Type	C
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	82.5 mm
Electrical Durability	10000 Cycles
Height	95 mm
Housing Colour	RAL 7035 Grey
Housing Material	Insulation group I, RAL 7035
Impulse Voltage	8 kV
Mounting Type	DIN Rail
Number of Poles	2
Pole Width	27 mm
Power Loss	3.5 W
Rated Current	20 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	690 V
Rated Short Circuit Current	50 kA
Rated Voltage	400/690 VAC
Short Circuit Capacity	25 kA
Standards and Approvals	IEC/EN 60947-2, IEC/EN 60898-1, UL 1077
Tightening Torque	3.5 N-m
Trip Curve	C Curve
Width	54 mm

Description

ABB's high performance Miniature Circuit Breaker offers reliable protection against short circuit and thermal overload. With a 50kA rating at 415VAC and 30kA rating at 250VDC, this 2 Pole breaker is designed for commercial and industrial applications. It has a C curve protection characteristic and a pole width of 27mm. Trust ABB for efficient circuit protection in your electrical systems.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

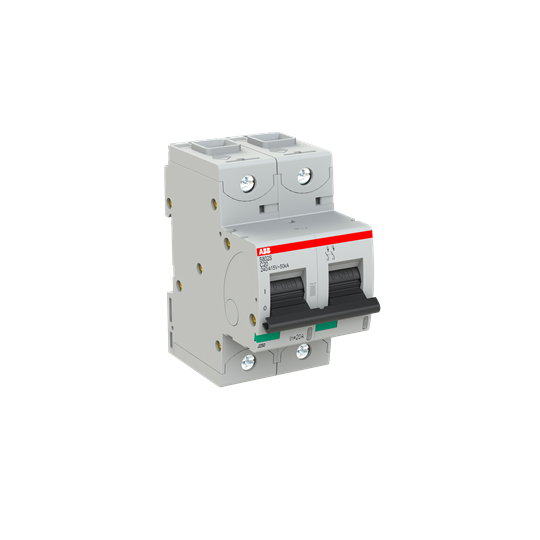

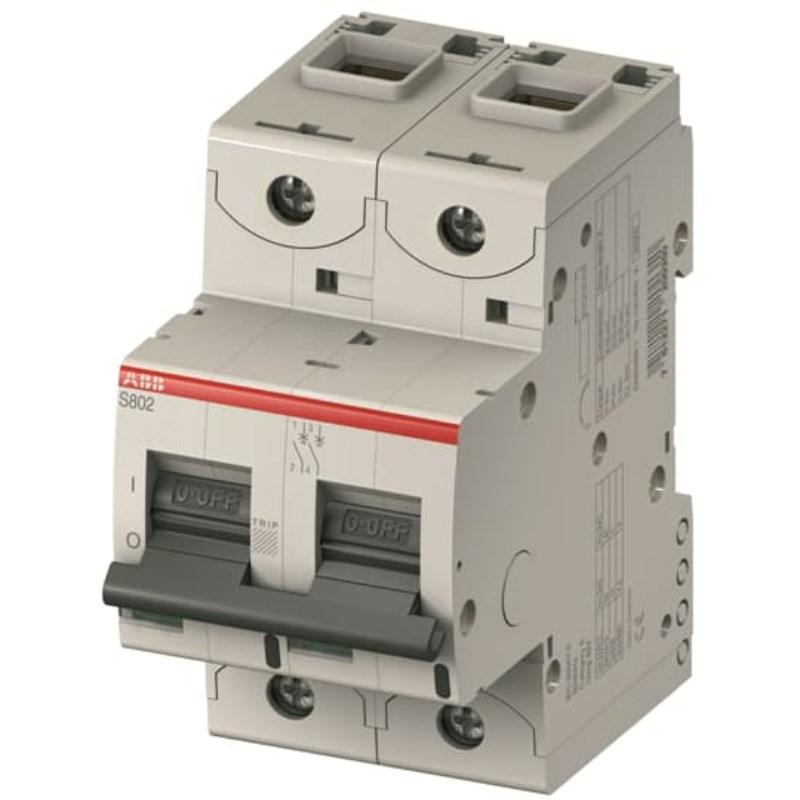

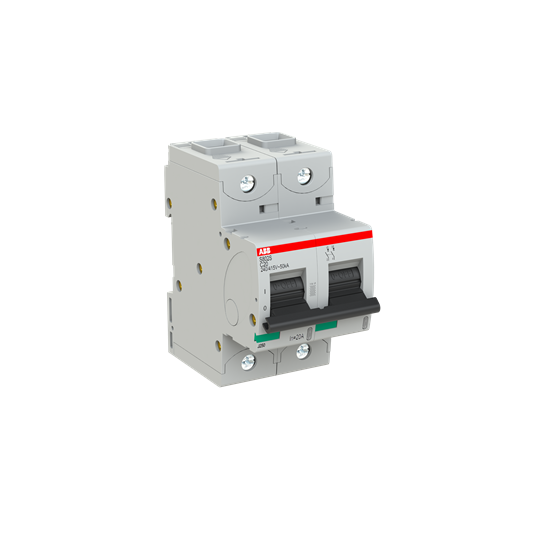

ABB S802SC20 High Performance Miniature Circuit Breaker 50kA at 400VAC 2-P 20A 400/690VAC C-Curve
