Product Code: S802CC25

Rated current of 25 A for reliable performance
High breaking capacity of 25 kA at 400 VAC
Dual pole design with screw clamp terminals
Compact size: 54 mm width, mounts on DIN Rail
Meets IEC/EN and UL standards for safety

Specifications

Cable Cross Section - Solid/Stranded (mm²)	Top/Bottom - 50/50
Cable Cross Section - Flexible (mm²)	Top/Bottom - 70/70
Dimensions (mm)	95H x 82.5D x 54W
No. of Poles	2P
Pole Width (mm)	27
Power Loss (W)	4.3/Pole
Rated Conditional Short-Circuit Current - Inc (kA)	25
Pollution Degree	3
Rated Current (A)	25
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	500
Rated Impulse Withstand Voltage (kV)	8
Rated Operational Voltage DC (V)	250
Rated Short-Circuit Capacity - Icn (kA)	15
Rated Operational Voltage AC (V)	230/400
Breaking Capacity 400V AC - Icu (kA)	25
Maximum Operational Voltage DC (V)	250
Maximum Operational Voltage AC (V)	440
Minimum Operational Voltage AC (V)	12
Rated Voltage AC (V)	400
Family	S800C
AC Voltage (V)	230/400
DC Voltage (V)	250
Icn-Rated Short Circuit Capacity (kA)	15
Inc-Rated Conditional Short Circuit Capacity (kA)	25
Impulse Withstand Voltage (kV/1.2µS)	8
Poles	2P
Breaking Capacity (kA)	25 @400 V AC
Current Rating (A)	25
Product Type	High Performance Circuit breaker
Brand	ABB
Series	S800C
Ambient Temperature	-25 to 60 deg C Operation, -40 to 70 deg C Storage
Application	Commercial and Industrial
Breaking Capacity	25 kA at 400 VAC
Cable Cross Section	50 sq-mm Top, 50 sq-mm Bottom
Collection	S800C
Curve Type	C
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	82.5 mm
Electrical Durability	10000 Cycles
Height	95 mm
Housing Colour	RAL 7035 Grey
Housing Material	Insulation group I, RAL 7035
Impulse Voltage	8 kV
Mounting Type	DIN Rail
Number of Poles	2
Pole Width	27 mm
Power Loss	4.3 W
Rated Current	25 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	500 V
Rated Short Circuit Current	25 kA
Rated Voltage	230/400 VAC
Short Circuit Capacity	15 kA
Standards and Approvals	IEC/EN 60947-2, IEC/EN 60898-1, UL 1077
Terminal Type	Screw Clamp
Tightening Torque	3.5 N-m
Trip Curve	C Curve
Width	54 mm

Description

The ABB High Performance Miniature Circuit Breaker is designed for commercial and industrial use. It has a 2 pole configuration with a 25A current rating. The circuit breaker offers C curve protection against short circuits and thermal overload. It can handle high fault currents of up to 25kA at 415VAC and 10kA at 250VDC. With a pole width of 27mm, this circuit breaker is compact yet powerful, making it suitable for various applications.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

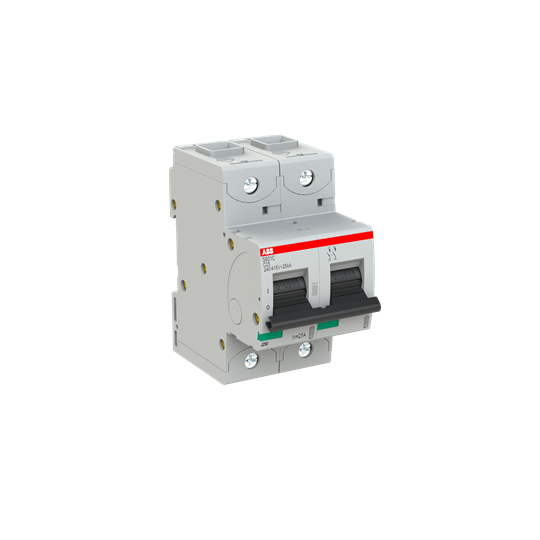

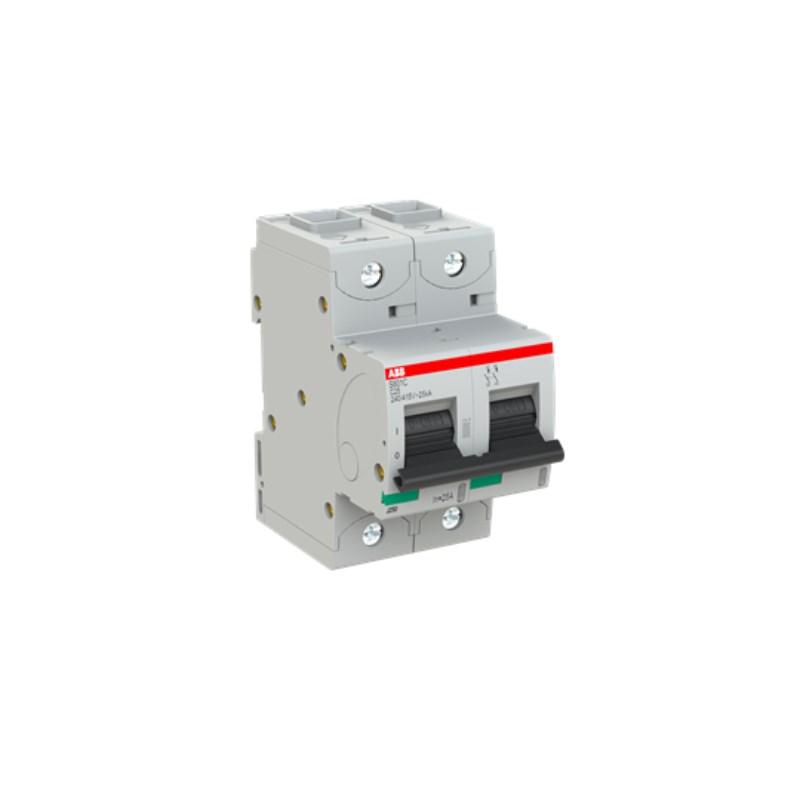

ABB S802CC25 High Performance Miniature Circuit Breaker 25kA at 400VAC 2-P 25A 230/400VAC C-Curve
