Product Code: S803CC16

Rated Current: 16 A, suitable for various applications.
Breaking Capacity: 25 kA at 400 VAC ensures safety.
Compact size with dimensions of 81x95x82.5 mm.
Meets AS/NZS and UL standards for reliability.
Operates in temperatures from -25 to 60°C.

Specifications

Cable Cross Section - Solid/Stranded (mm²)	Top/Bottom - 50/50
Cable Cross Section - Flexible (mm²)	Top/Bottom - 70/70
Dimensions (mm)	95H x 82.5D x 81W
No. of Poles	3P
Pole Width (mm)	27
Power Loss (W)	3.1/Pole
Rated Conditional Short-Circuit Current - Inc (kA)	25
Pollution Degree	3
Rated Current (A)	16
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	500
Rated Impulse Withstand Voltage (kV)	8
Rated Operational Voltage DC (V)	375
Rated Short-Circuit Capacity - Icn (kA)	15
Rated Operational Voltage AC (V)	230/400
Breaking Capacity 400V AC - Icu (kA)	25
Maximum Operational Voltage DC (V)	375
Maximum Operational Voltage AC (V)	440
Minimum Operational Voltage AC (V)	12
Rated Voltage AC (V)	400
Family	S800C
AC Voltage (V)	230/400
DC Voltage (V)	375
Icn-Rated Short Circuit Capacity (kA)	15
Inc-Rated Conditional Short Circuit Capacity (kA)	25
Impulse Withstand Voltage (kV/1.2µS)	8
Poles	3P
Breaking Capacity (kA)	25 @400 V AC
Current Rating (A)	16
Product Type	High Performance Circuit breaker
Brand	ABB
Series	S800C
Ambient Temperature	-25 to 60 deg C Operation, -40 to 70 deg C Storage
Application	Commercial and Industrial
Breaking Capacity	25 kA at 400 VAC
Cable Cross Section	50 sq-mm Top, 50 sq-mm Bottom
Collection	S800C
Curve Type	C
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	82.5 mm
Electrical Durability	10000 Cycles
Height	95 mm
Housing Colour	RAL 7035 Grey
Housing Material	Insulation group I, RAL 7035
Impulse Voltage	8 kV
Mounting Type	DIN Rail
Number of Poles	3
Pole Width	27 mm
Power Loss	3.1 W
Rated Current	16 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	500 V
Rated Short Circuit Current	25 kA
Rated Voltage	230/400 VAC
Short Circuit Capacity	15 kA
Standards and Approvals	AS/NZS 60898-1, AS/NZS 60947-2, UL 1077
Terminal Type	Screw Clamp
Tightening Torque	3.5 N-m
Trip Curve	C Curve
Width	81 mm

Description

ABB's High performance Miniature Circuit Breaker offers reliable protection against short circuit and thermal overload. With a 25kA rating at 415VAC and a 10kA rating at 375VDC, this 3 Pole breaker is designed for commercial and industrial applications. It has a C curve protection characteristic and a pole width of 27mm. Trust ABB for high-quality circuit breakers that deliver exceptional performance.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

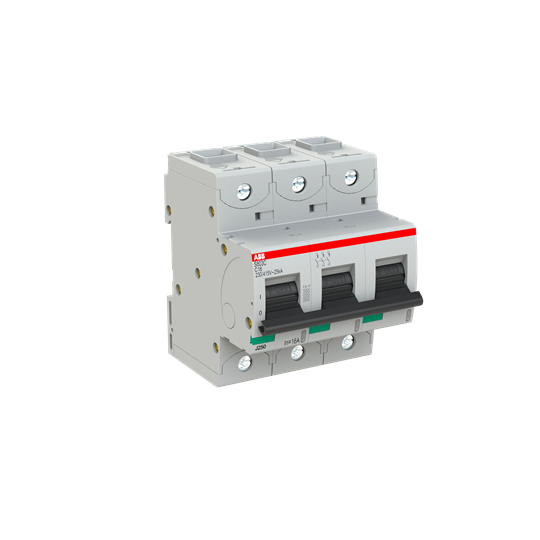

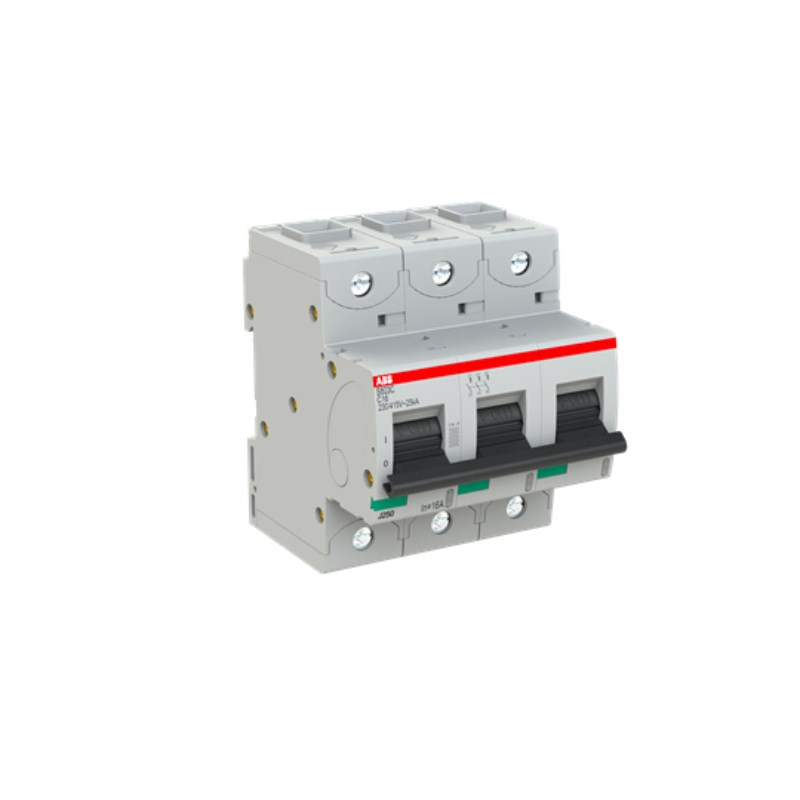

ABB S803CC16 High Performance Miniature Circuit Breaker 25kA at 400VAC 3-P 16A 230/400VAC C-Curve
