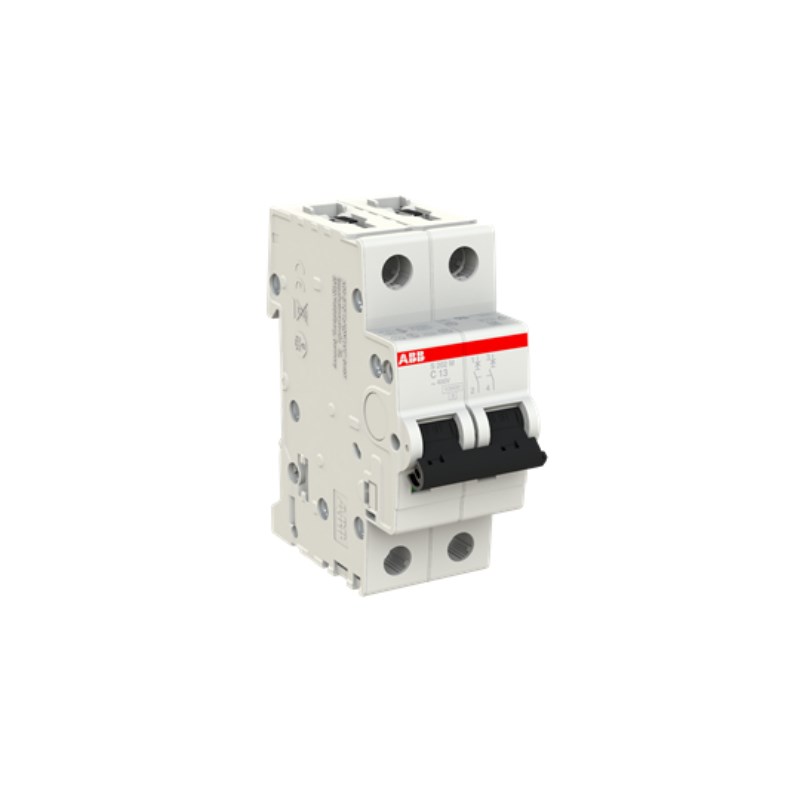

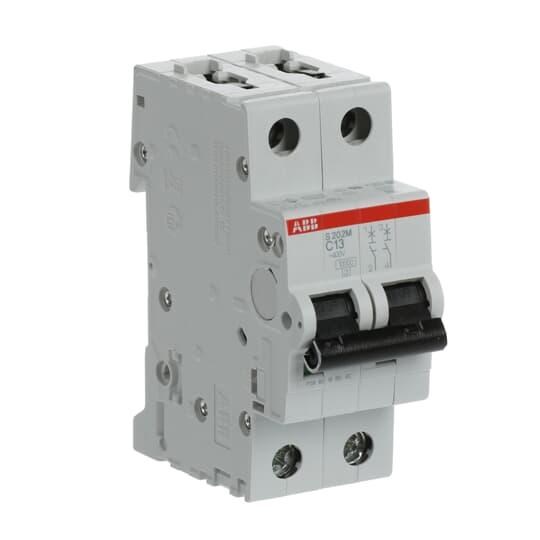

Product Code: S202MC13

Rated current of 13 A with 15 kA breaking capacity
Dual pole design with IP20 protection rating
Compliant with AS/NZS and UL standards
Compact size: 35 mm width, 85 mm height, 69 mm depth
Suitable for commercial and industrial use

Specifications

Cable Cross Section - Solid/Stranded (mm²)	Top/Bottom - 35/35
Cable Cross Section - Flexible (mm²)	Top/Bottom - 25/25
Busbar Cross Section (mm²)	Top/Bottom - 10/10
Dimensions (mm)	85H x 69D x 35W
Maximum Operational Voltage DC (V)	125
Maximum Operational Voltage AC (V)	440
Minimum Operational Voltage AC (V)	12
Minimum Operational Voltage DC (V)	12
No. of Poles	2P
Pole Width (mm)	17.5
Power Loss (W)	2.3/Pole
Rated Conditional Short-Circuit Current - Inc (kA)	25
Pollution Degree	3
Rated Current (A)	13
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	440
Rated Impulse Withstand Voltage (kV)	4
Rated Short-Circuit Capacity - Icn (kA)	10
Rated Operational Voltage AC (V)	400
Breaking Capacity 400V AC - Icu (kA)	15
Rated Voltage AC (V)	400
Poles	2P
Breaking Capacity (kA)	15 @400 V AC
Current Rating (A)	13
Family	S200M
AC Voltage (V)	400/415
Icn-Rated Short Circuit Capacity (kA)	10
Inc-Rated Conditional Short Circuit Capacity (kA)	25
Impulse Withstand Voltage (kV/1.2µS)	4
Product Type	Miniature Circuit Breaker
Brand	ABB
Series	S200M
Ambient Temperature	-25 to 55 deg C Operation, -40 to 70 deg C Storage
Application	Commercial and Industrial
Breaking Capacity	15 kA at 400 VAC
Bulbar Cross Section	10 sq-mm Top, 10 sq-mm Bottom
Cable Cross Section	35 sq-mm Top, 35 sq-mm Bottom
Collection	S200M
Curve Type	C
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	69 mm
Electrical Durability	20000 Cycles
Height	85 mm
Housing Colour	RAL 7035 Grey
Housing Material	Insulation Group II, RAL 7035
Impulse Voltage	4 kV
Mounting Type	DIN Rail
Number of Poles	2
Pole Width	17.5 mm
Power Loss	2.3 W
Rated Current	13 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	440 V
Rated Short Circuit Current	25 kA
Rated Voltage	400/415 VAC
Short Circuit Capacity	10 kA
Standards and Approvals	AS/NZS 60898-1, AS/NZS 60947-2, UL 1077
Terminal Type	Screw Clamp
Tightening Torque	2.8 N-m
Trip Curve	C Curve
Width	35 mm

Description

The ABB Miniature Circuit Breaker is a reliable and efficient solution for commercial and industrial applications. With a 10kA breaking capacity at 400VAC and 15kA at 125VDC, it provides robust protection against short circuits and thermal overload. This 2-pole circuit breaker has a current rating of 13A and features a C curve. Trust ABB for high-quality circuit protection in your electrical systems.
