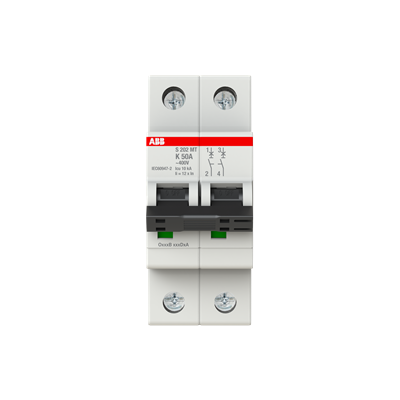

ABB S202MT-K50 Miniature Circuit Breaker 7.5kA 2-P 50A 400VAC K-Curve

Product Code: S202MT-K50

  • Rated for 50 A current, ideal for robust applications.
  • Operates at 400 VAC with a withstand voltage of 4 kV.
  • Compact design: 35mm width, DIN Rail mountable.
  • IP20 protection with screw clamp terminals.
  • Meets IEC/EN 60947-2 standards.
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Miniature Circuit Breaker
Brand ABB
Ambient Temperature -25 to 55 deg C Operation, -40 to 70 deg C Storage
Breaking Capacity 7.5 kA
Curve Type K
Degree of Pollution IP3
Degree of Protection IP20
Depth 69 mm
Height 88 mm
Housing Colour RAL 7035 Grey
Mounting Type DIN Rail
Number of Poles 2
Power Loss 8.2 W
Rated Current 50 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 440 V
Rated Voltage 400 VAC
Short Circuit Capacity 10 kA
Standards and Approvals IEC/EN 60947-2
Terminal Type Screw Clamp
Tightening Torque 2.8 N-m
Width 35 mm
