Product Code: S803NC32

Rated current of 32 A for reliable performance
Breaking capacity of 36 kA at 400 VAC
IP20 protection with screw clamp terminals
Complies with AS/NZS standards for safety
Suitable for commercial and industrial use

Specifications

Cable Cross Section - Solid/Stranded (mm²)	Top/Bottom - 50/50
Cable Cross Section - Flexible (mm²)	Top/Bottom - 70/70
Dimensions (mm)	95H x 82.5D x 81W
No. of Poles	3P
Pole Width (mm)	27
Power Loss (W)	3.2/Pole
Rated Conditional Short-Circuit Current - Inc (kA)	36
Pollution Degree	3
Rated Current (A)	32
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	690
Rated Impulse Withstand Voltage (kV)	8
Rated Operational Voltage DC (V)	375
Rated Short-Circuit Capacity - Icn (kA)	25
Rated Operational Voltage AC (V)	400/690
Breaking Capacity 400V AC - Icu (kA)	36
Maximum Operational Voltage DC (V)	375
Maximum Operational Voltage AC (V)	690
Minimum Operational Voltage AC (V)	12
Rated Voltage AC (V)	400
Family	S800N
AC Voltage (V)	400/690
DC Voltage (V)	375
Icn-Rated Short Circuit Capacity (kA)	25
Inc-Rated Conditional Short Circuit Capacity (kA)	36
Impulse Withstand Voltage (kV/1.2µS)	8
Poles	3P
Breaking Capacity (kA)	36 @400 V AC
Current Rating (A)	32
Product Type	High Performance Circuit breaker
Brand	ABB
Series	S800N
Ambient Temperature	-25 to 60 deg C Operation, -40 to 70 deg C Storage
Application	Commercial and Industrial
Breaking Capacity	36 kA at 400 VAC
Cable Cross Section	50 sq-mm Top, 50 sq-mm Bottom
Collection	S800N
Curve Type	C
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	82.5 mm
Electrical Durability	10000 Cycles
Height	95 mm
Housing Colour	RAL 7035 Grey
Housing Material	Insulation group I, RAL 7035
Impulse Voltage	8 kV
Mounting Type	DIN Rail
Number of Poles	3
Pole Width	27 mm
Power Loss	3.2 W
Rated Current	32 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	690 V
Rated Short Circuit Current	36 kA
Rated Voltage	400/690 VAC
Short Circuit Capacity	25 kA
Standards and Approvals	AS/NZS 60898-1, AS/NZS 60947-2
Terminal Type	Screw Clamp
Tightening Torque	3.5 N-m
Trip Curve	C Curve
Width	81 mm

Description

The ABB High Performance Miniature Circuit Breaker is designed for commercial and industrial use. It offers 3-pole protection with a 32A current rating. With a C curve, it provides reliable protection against short circuits and thermal overload. The circuit breaker has a pole width of 27mm. It can handle high currents, with a breaking capacity of 36kA at 415VAC and 20kA at 375VDC. Trust ABB for quality and performance in circuit protection.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

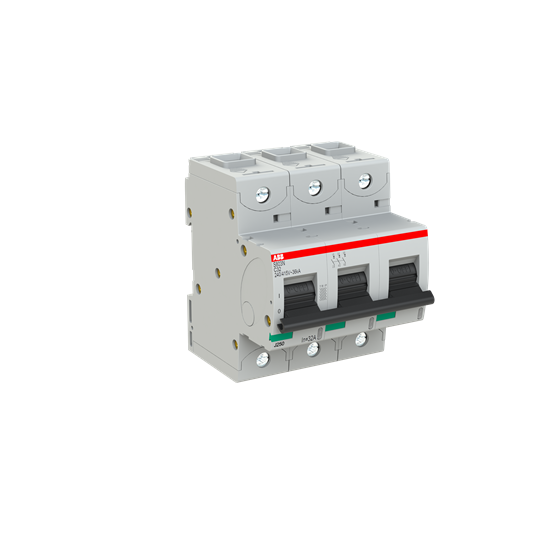

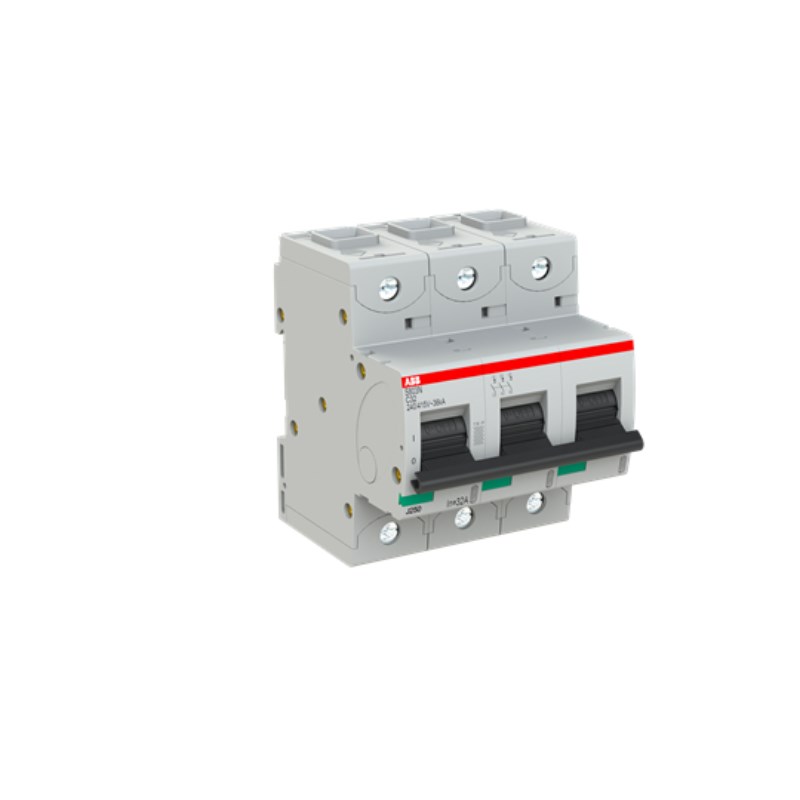

ABB S803NC32 High Performance Miniature Circuit Breaker 36kA at 400VAC 3-P 32A 400/690VAC C-Curve
