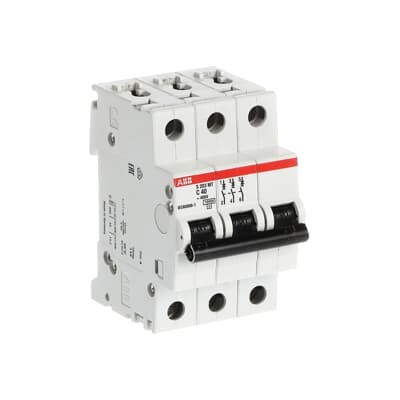

ABB S203MT-C40 Miniature Circuit Breaker 11.3kA 3-P 40A 400V C-Curve

Product Code: S203MT-C40

  • Rated current of 40 A for robust performance
  • Breaking capacity of 11.3 kA ensures safety
  • Compact design: 52.5mm width, 88mm height, 69mm depth
  • IP20 protection with screw clamp terminals
  • Complies with IEC/EN standards for reliability
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Miniature Circuit Breaker
Brand ABB
Ambient Temperature -25 to 55 deg C Operation, -40 to 70 deg C Storage
Breaking Capacity 11.3 kA
Curve Type C
Degree of Pollution IP3
Degree of Protection IP20
Depth 69 mm
Electrical Durability 20000 Cycles
Height 88 mm
Housing Colour RAL 7035 Grey
Number of Poles 3
Power Loss 14.4 W
Rated Current 40 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 440 V
Rated Voltage 400 V
Standards and Approvals IEC/EN 60898-1, IEC/EN 60947-2
Terminal Type Screw Clamp
Tightening Torque 2.8 N-m
Width 52.5 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
