Product Code: S804SC32

The S804S-C32 is a 4-pole High Performance Circuit breaker with C-characteristic, with cage terminal and a rated current of 32 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S804S-C32 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S804S-C32 more comfortable. Due to the fast arc extinction of S804S-C32 your application will be secured.

Housing Material	Insulation Group I, RAL 7035
Width in Number of Modular Spacings	6
Minimum Temperature (°C)	-25
Brand	ABB
Series	S800S
Cable Cross Section - Flexible (mm²)	Top/Bottom - 70/70
Cable Cross Section - Solid/Stranded (mm²)	Top/Bottom - 50/50
Mounting Type	DIN Rail
AC Voltage (V)	400/690
Application	Commercial and Industrial
Breaking Capacity 230V AC - Icu (kA)	50
Breaking Capacity 400V AC - Icu (kA)	6
Current Limiting Class	3
Current Rating (A)	32
Curve Type	C Curve
DC Voltage (V)	500
Family	S800S
Icn-Rated Short Circuit Capacity (kA)	25
Impulse Withstand Voltage (kV/1.2µS)	8
Maximum Operational Voltage AC (V)	690
Maximum Operational Voltage DC (V)	500
No. of Poles	4
No. of Protected Poles	4
Overvoltage Category	4
Power Loss (W)	12.8
Rated Conditional Short-Circuit Current - Inc (kA)	50
Rated Current (A)	32
Rated Frequency (Hz)	50
Rated Impulse Withstand Voltage (kV)	8
Rated Insulation Voltage (V)	690
Rated Operational Voltage AC (V)	400/690
Rated Operational Voltage DC (V)	500
Rated Short-Circuit Capacity - Icn (kA)	25
Rated Voltage (V)	400
Rated Voltage AC (V)	400
Release Type	C
Dimensions (mm)	106W x 95H x 82.5D
Trip Curve	C Curve
Pole Width (mm)	27
Voltage Type	AC/DC
Built-in Depth (mm)	82.5
Degree of Protection	IP20
Pollution Degree	3
Standards and Approvals	AS/NZS 60898-1,AS/NZS 60947-2, UL 1077
Poles	4P
Breaking Capacity (kA)	50 @400 V AC
Inc-Rated Conditional Short Circuit Capacity (kA)	50

DIN MCB

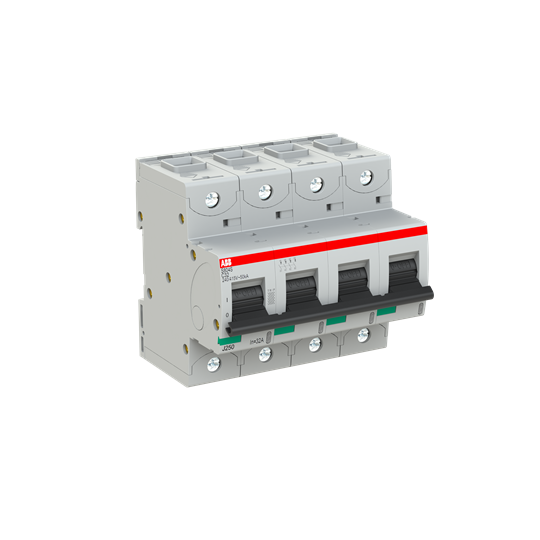

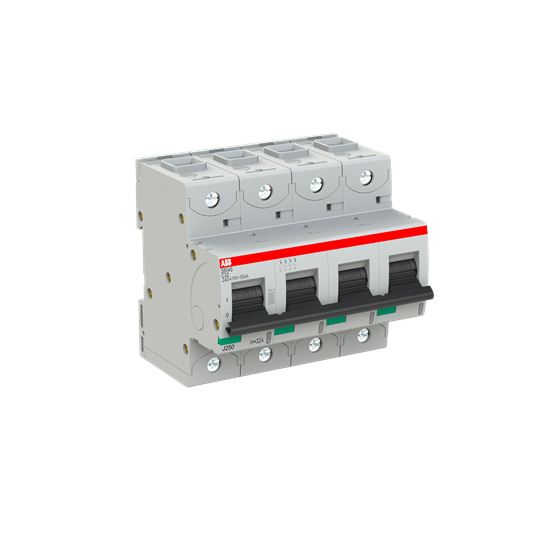

ABB S804SC32 HIGH PERF. MCB 50kA 4P 32A 415VAC C CURVE
