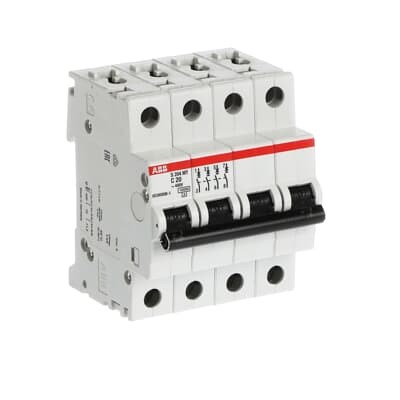

ABB S204MT-C20 Miniature Circuit Breaker 11.3kA 4-P 20A 400V C-Curve

Product Code: S204MT-C20

  • Rated Current: 20 A, withstands up to 4 kV impulse
  • Breaking Capacity of 11.3 kA ensures reliability
  • IP20 protection with screw clamp terminals
  • Compact size: 70mm W x 88mm H x 69mm D
  • Complies with IEC/EN standards for safety
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Miniature Circuit Breaker
Brand ABB
Ambient Temperature -25 to 55 deg C Operation, -40 to 70 deg C Storage
Breaking Capacity 11.3 kA
Curve Type C
Degree of Protection IP20
Depth 69 mm
Electrical Durability 20000 Cycles
Height 88 mm
Housing Colour RAL 7035 Grey
Number of Poles 4
Power Loss 10 W
Rated Current 20 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 440 V
Rated Voltage 400 V
Standards and Approvals IEC/EN 60898-1, IEC/EN 60947-2
Terminal Type Screw Clamp
Tightening Torque 2.8 N-m
Width 70 mm
