Specifications

Poles	4P
Breaking Capacity (kA)	10 @400 V AC
Current Rating (A)	50
Family	S200
AC Voltage (V)	400/415
Icn-Rated Short Circuit Capacity (kA)	6
Inc-Rated Conditional Short Circuit Capacity (kA)	20
Impulse Withstand Voltage (kV/1.2µS)	4

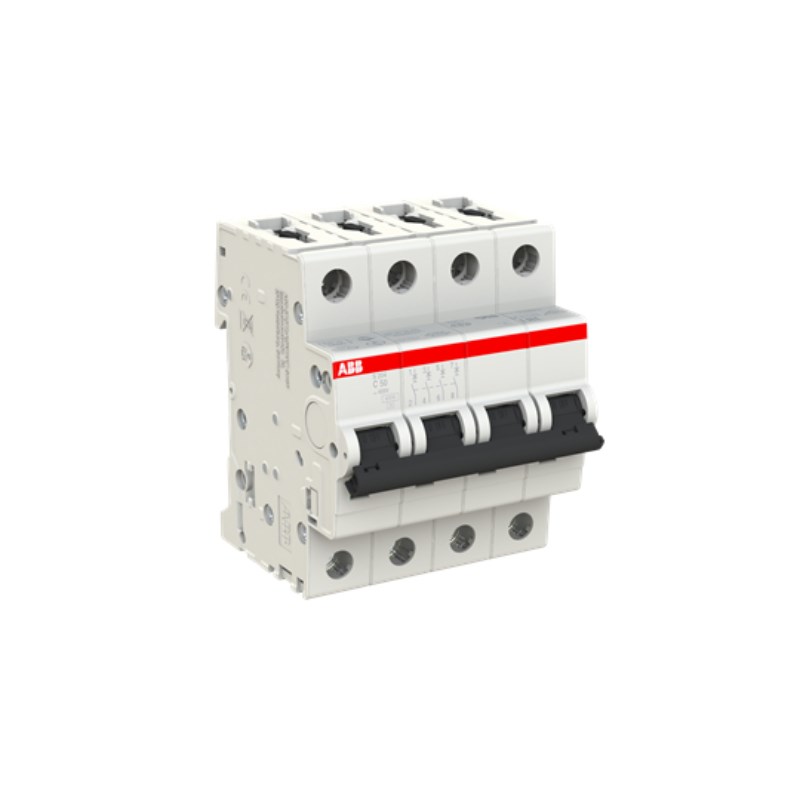

Product Type	Miniature Circuit breaker
Brand	ABB
Application	Industrial
Breaking Capacity	10 kA at 400 VAC
Collection	S200
Curve Type	C
Degree of Pollution	IP3
Depth	69 mm
Electrical Durability	10000 Cycles
Height	88 mm
Housing Colour	RAL 7035 Grey
Impulse Voltage	4 kV
Mounting Type	DIN Rail
Number of Poles	4
Power Loss	13 W
Rated Current	50 A
Rated Frequency	50/60 Hz
Rated Voltage	400/415 VAC
Short Circuit Capacity	6 kA
Standards and Approvals	IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Terminal Type	Screw Clamp
Tightening Torque	2.8 N-m
Trip Curve	C Curve
Width	70 mm
Wire Stripping Length	12.5 mm
