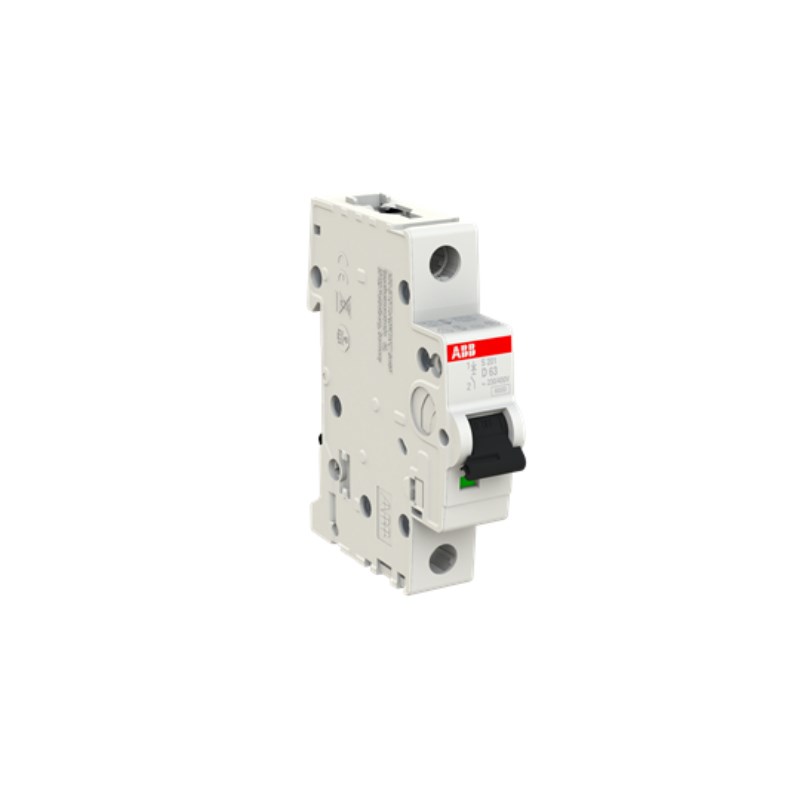

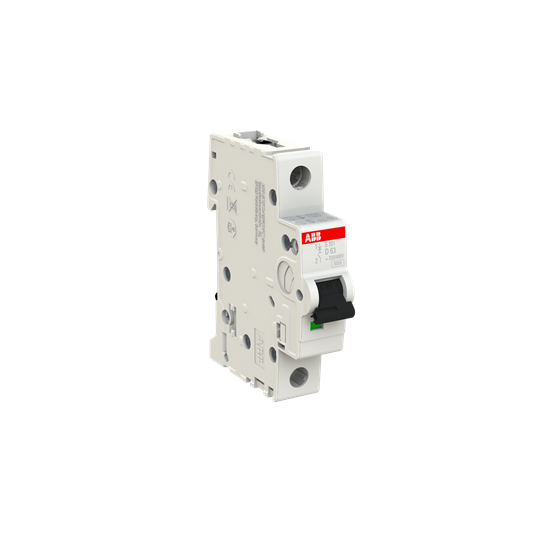

ABB S201D63 Miniature Circuit Breaker 10kA at 230VAC 1-P 63A 230/400VAC D-Curve

Product Code: S201D63

  • Rated current of 63 A for reliable performance
  • Breaking capacity of 10 kA at 230 VAC
  • Compact size with 17.5 mm width
  • Suitable for commercial and industrial use
  • Conforms to AS/NZS and UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Cable Cross Section - Solid/Stranded (mm²) Top/Bottom - 35/35
Cable Cross Section - Flexible (mm²) Top/Bottom - 25/25
Busbar Cross Section (mm²) Top/Bottom - 10/10
Dimensions (mm) 88H x 69D x 17.5W
Maximum Operational Voltage DC (V) 72
Maximum Operational Voltage AC (V) 253
Minimum Operational Voltage AC (V) 12
Minimum Operational Voltage DC (V) 12
No. of Poles 1P
Pole Width (mm) 17.5
Power Loss (W) 4.8/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 10
Pollution Degree 3
Rated Current (A) 63
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) 440
Rated Impulse Withstand Voltage (kV) 4
Rated Short-Circuit Capacity - Icn (kA) 6
Rated Operational Voltage AC (V) 230/400
Breaking Capacity 230V AC - Icu (kA) 10
Rated Voltage AC (V) 230
Poles 1P
Breaking Capacity (kA) 10 @230 V AC
Current Rating (A) 63
Family S200
AC Voltage (V) 230/400
Icn-Rated Short Circuit Capacity (kA) 6
Inc-Rated Conditional Short Circuit Capacity (kA) 10
Impulse Withstand Voltage (kV/1.2µS) 4
Product Type Miniature Circuit Breaker
Brand ABB
Series S200
Application Commercial and Industrial
Breaking Capacity 10 kA at 230 VAC
Bulbar Cross Section 10 sq-mm Top, 10 sq-mm Bottom
Cable Cross Section 35 sq-mm Top, 35 sq-mm Bottom
Collection S200
Curve Type D
Degree of Pollution IP3
Degree of Protection IP20
Depth 69 mm
Electrical Durability 10000 Cycles
Height 88 mm
Housing Colour RAL 7035 Grey
Housing Material Insulation Group II, RAL 7035
Impulse Voltage 4 kV
Mounting Type DIN Rail
Number of Poles 1
Pole Width 17.5 mm
Power Loss 4.8 W
Rated Current 63 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 440 V
Rated Short Circuit Current 10 kA
Rated Voltage 230/400 VAC
Short Circuit Capacity 6 kA
Standards and Approvals AS/NZS 60898-1, AS/NZS 60947-2, UL 1077
Terminal Type Screw Clamp
Tightening Torque 2.8 N-m
Trip Curve D Curve
Width 17.5 mm
Wire Stripping Length 12.5 mm

Description

The ABB Miniature Circuit Breaker is a reliable and efficient solution for commercial and industrial applications. With a 6kA breaking capacity at 230VAC and 10kA at 60VDC, it provides robust protection against short circuits and thermal overload. This 1 pole breaker has a rating of 63A and features D curve protection. Trust ABB for high-quality circuit breakers that deliver superior performance in demanding environments.
