Specifications

No. of Poles	3
Pole Width (mm)	27
Power Loss (W)	4.95
Rated Current (A)	2
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	440
Rated Impulse Withstand Voltage (kV)	4
Rated Short-Circuit Capacity - Icn (kA)	6
Breaking Capacity 400V AC - Icu (kA)	10
Ambient Temperature Range (°C)	-25 to +55
Dimensions (mm)	52.5W x 88H x 69D
Breaking Capacity 230V AC - Icu (kA)	20
Weight (kg)	0.375
Rated Operational Voltage (V)	230/440
Standards	IEC/EN 60898-1 IEC/EN 60947-2 UL 1077

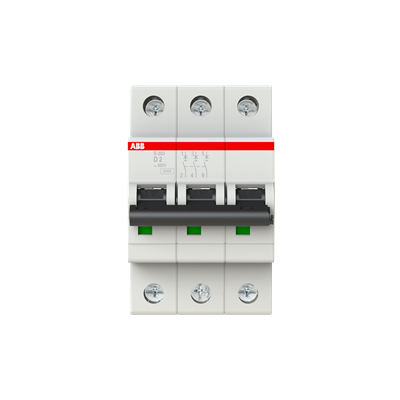

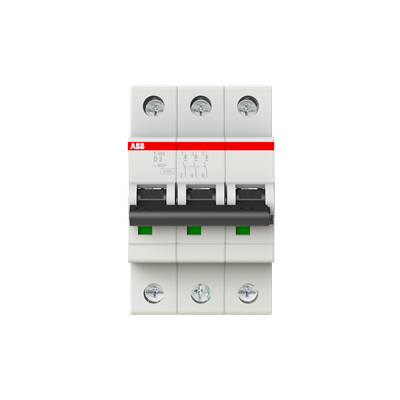

Product Type	Miniature Circuit breaker
Brand	ABB
Series	S200
Ambient Temperature	-25 to 55 deg C
Breaking Capacity	10 kA
Curve Type	D
Depth	69 mm
Electrical Durability	20000 Cycles
Height	88 mm
Mounting Type	DIN Rail
Number of Poles	3
Pole Width	27 mm
Power Loss	4.95 W
Rated Current	2 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	440 V
Rated Voltage	230/400 VAC
Short Circuit Capacity	6 kA
Standards and Approvals	IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Terminal Type	Screw Clamp
Tightening Torque	2.8 N-m
Weight	0.375 kg
Width	52.5 mm
Wire Stripping Length	12.5 mm
