Specifications

No. of Poles	1P+1P
Operational Temperature Range (°C)	-25 to +55
Rated Current (A)	20
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	4
Rated Operational Voltage AC (V)	230/240
Dimensions (mm)	18Wx86Hx70D
Breaking Capacity 240V AC - Icu (kA)	6
Poles	1P+1P
Breaking Capacity (kA)	6 @240 V AC
Current Rating (A)	20
Family	S2011C
AC Voltage (V)	230/240
Impulse Withstand Voltage (kV/1.2µS)	4

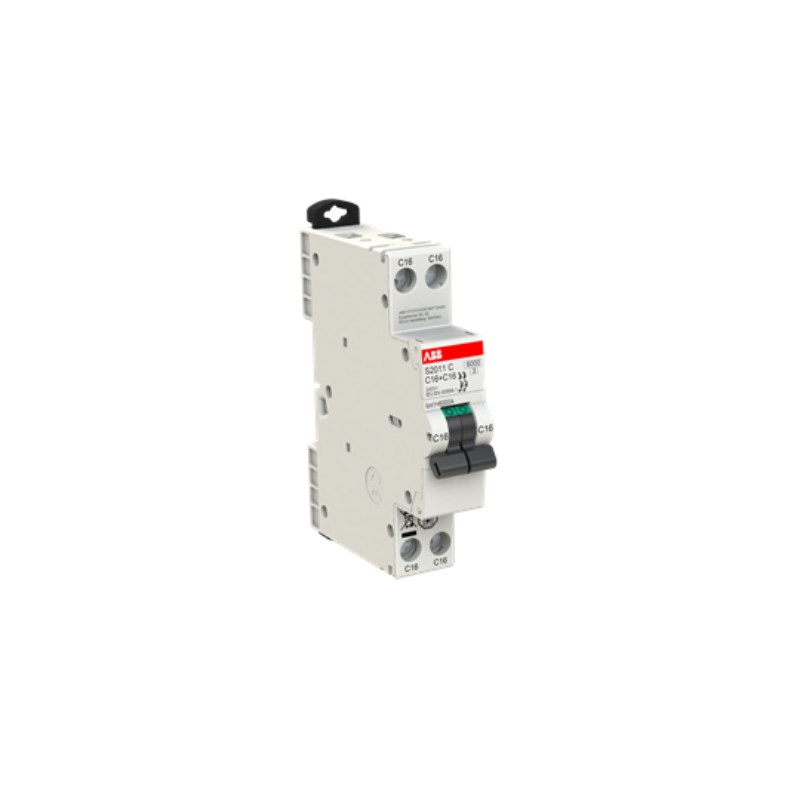

Product Type	Miniature Circuit Breaker
Brand	ABB
Series	S2011C
Breaking Capacity	6 kA at 240 VAC
Collection	S2011C
Connecting Capacity	1-10/1-16 sq-mm Flexible/Rigid
Curve Type	C
Degree of Protection	IP20
Depth	70 mm
Electrical Durability	10000 Cycles
Height	86 mm
Impulse Voltage	4 kV
Number of Poles	1+1
Operational Temperature	-25 to 55 deg C
Power Loss	5 W
Rated Current	20 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Voltage	230/240 VAC
Standards and Approvals	IEC/EN 60898-1
Trip Curve	C Curve
Width	18 mm
