Specifications

No. of Poles	3P
Operational Temperature Range (°C)	-25 to +55
Rated Current (A)	20
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	4
Rated Operational Voltage AC (V)	415
Breaking Capacity 415V AC - Icu (kA)	10
Dimensions (mm)	36Wx86Hx70D
Poles	3P
Breaking Capacity (kA)	10 @415 V AC
Current Rating (A)	20
Family	S203C
AC Voltage (V)	400/415
Impulse Withstand Voltage (kV/1.2µS)	4

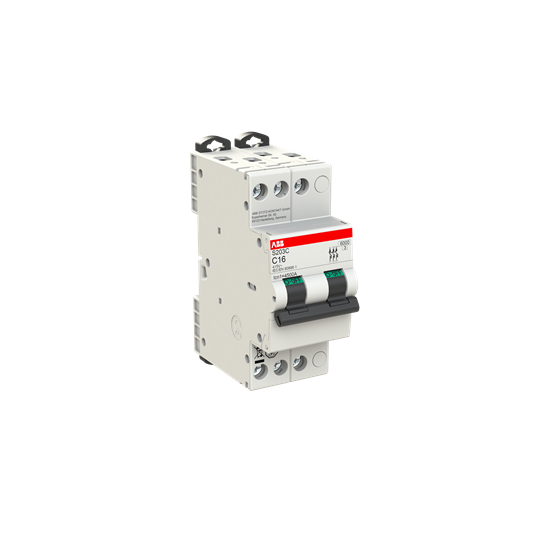

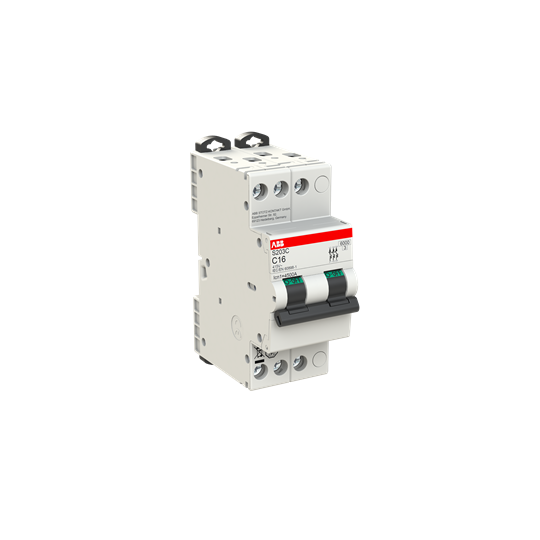

Product Type	Miniature Circuit Breaker
Brand	ABB
Series	S203C
Breaking Capacity	10 kA at 415 VAC
Collection	S203C
Curve Type	C
Degree of Protection	IP20
Depth	70 mm
Electrical Durability	10000 Cycles
Height	86 mm
Impulse Voltage	4 kV
Number of Poles	3
Operational Temperature	-25 to 55 deg C
Rated Current	20 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Voltage	400/415 VAC
Standards and Approvals	IEC/EN 60898-1
Trip Curve	C Curve
Width	36 mm
