Suitable For	XT2
Brand	IPD
To Suit	ABB MCCB - XT2
Busbar Cross Section (mm²)	8 X 40
Current Rating (A)	800
Feed Type	Top/Bottom Feed
No. of Poles	48
Rated Current (A)	800
Rated Short-time Withstand Current - Icw (kA/1s)	50
Type of Feed	Top/Bottom Feed
Standards and Approvals	Tested to AS/NZS 61439.1:2016
Poles	48
Icw (kA/1s) - Short-time Withstand Current Rating	50

Chassis Systems

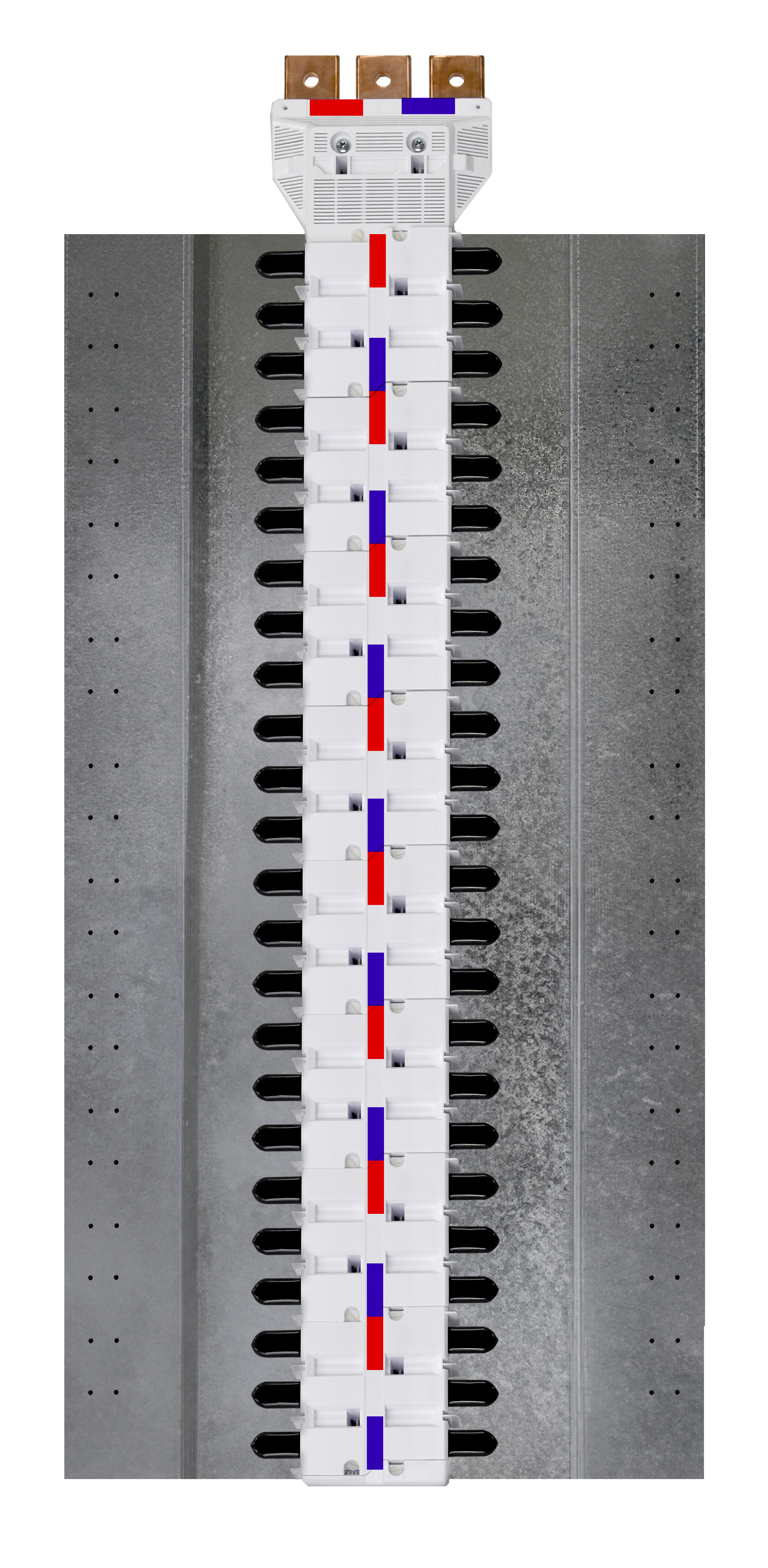

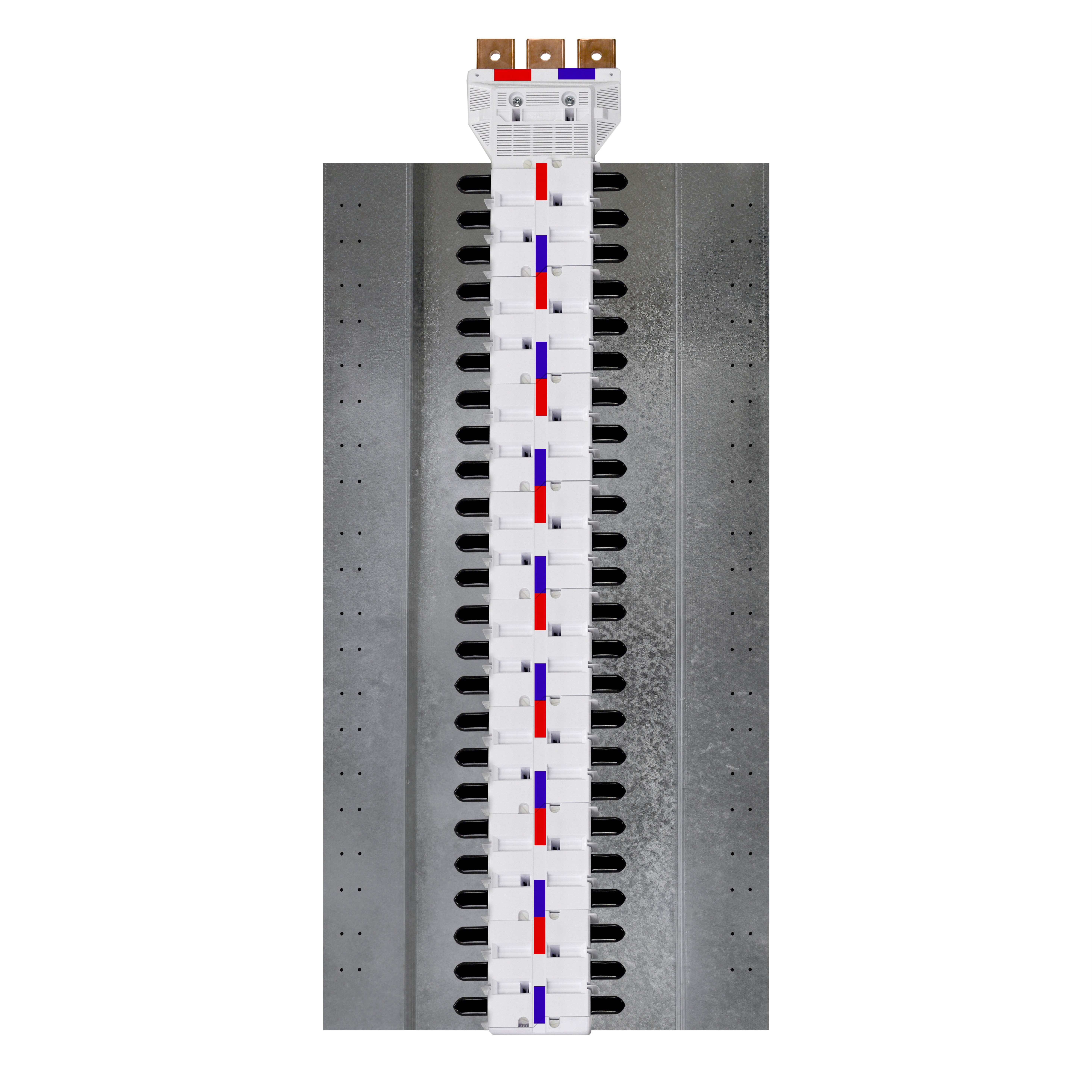

IPD NY80XT2SD48 NYBUS CHASSIS 800A 48 POLE SINGLE FEED DOUBLE SIDED XT2
