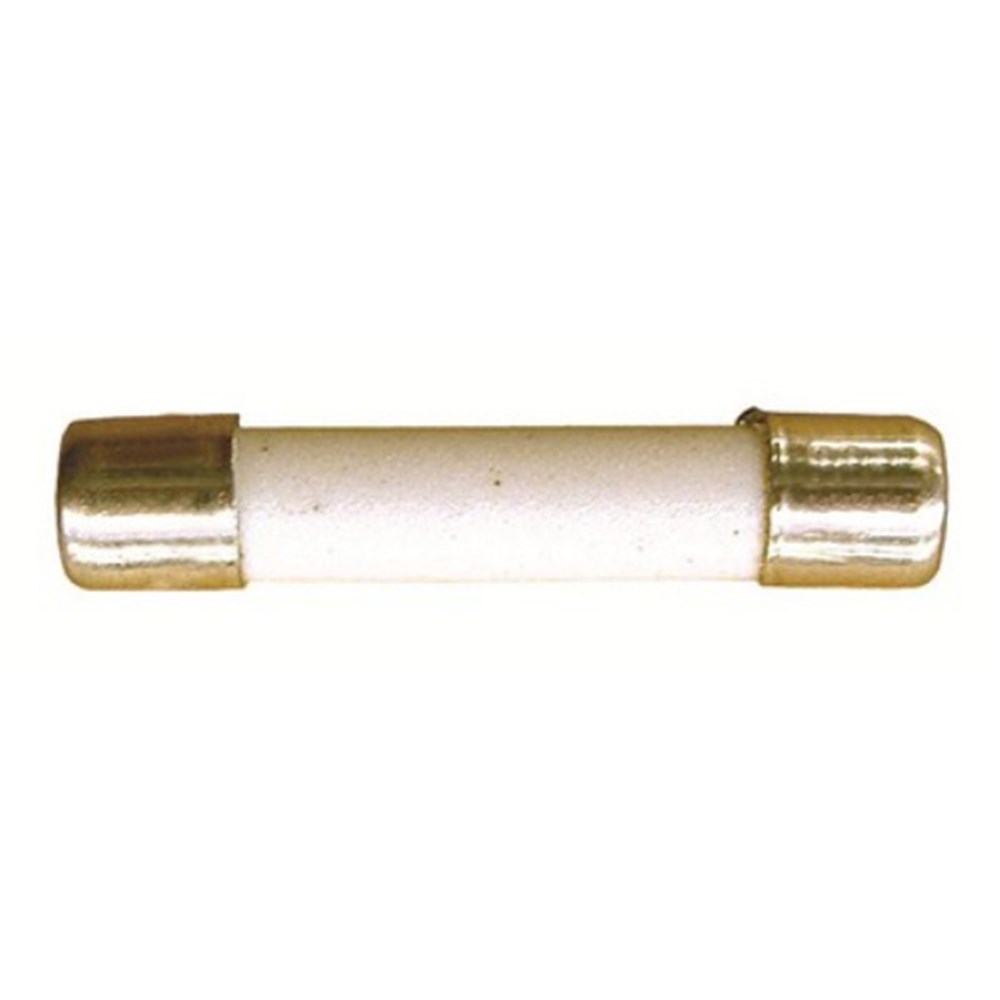

IPD AABC500MA Miniature Fuse Link 0.5A 250VAC 3AG Fuse 6.3mm Dia x 32mm L 35-10000A Interrupt Ceramic Fast Acting

Product Code: AABC500MA

  • Miniature ceramic fuse for compact spaces
  • Rated 0.5 A, suitable for low current applications
  • Handles up to 250 VAC effectively
  • Interrupt rating from 35 to 10000 A
  • Standard 3AG fuse size: 6.3 mm Dia x 32 mm L
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Body Size (mm) 6.3 x 32
Functionality Fast Acting
Rated Current (A) 0.5
Rated Voltage DC (V) 125
Rated Voltage AC (V) 250
Interrupting Rating AC (A) 35 - 10000
Product Type Miniature Fuse Link
Brand IPD
Body Size 6.3 mm Dia x 32 mm L
Fuse Type 3AG
Interrupt Rating 35-10000 A
Material Ceramic
Rated Current 0.5 A
Rated Voltage 250 VAC

Description

The AABC Series is a fast-acting ceramic tube type 3AG miniature fuse link. It comes with a nickel-plated brass endcap for added durability. This UL Listed product meets the standard 248-14. It has a voltage rating of 250VAC/125VDC and a rated current of 500mA.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
