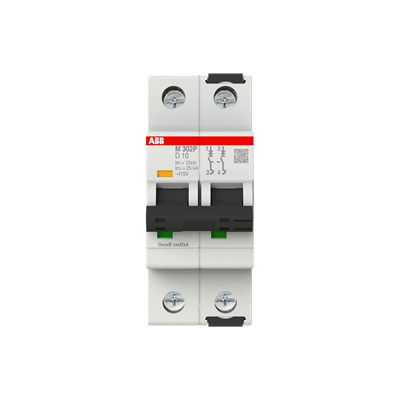

<p>When selecting a Miniature Circuit Breaker (MCB) for your industrial or commercial application, understanding the technical specifications is crucial. The M300P series MCB offers reliable performance with its robust features tailored to meet demanding environments.</p><p>This MCB operates at a rated current of 10 A and supports a rated voltage of 415 V, making it suitable for various electrical systems. It boasts an impressive breaking capacity of 25 kA, ensuring that it can handle high fault conditions effectively. The device is designed with two poles, providing enhanced safety and reliability in operation.</p><p>For applications requiring resilience against transient overvoltages, this MCB has a rated impulse withstand voltage of 6 kV. Its insulation capabilities are supported by a rated insulation voltage of 500 V. The product adheres to IEC/EN 60947-2 standards and approvals, ensuring compliance with international safety norms.</p><p>The physical dimensions include a width of 35 mm, height of 88 mm, and depth of 69 mm. With these compact measurements and a weight of just 0.248 kg, the unit is easy to handle and install on DIN Rails—its designated mounting type.</p><p>Designed for versatility across different environments, the MCB functions optimally within an ambient temperature range from -40 to 70 degrees Celsius. This wide temperature tolerance ensures consistent performance in both extreme cold and heat conditions.</p><p>The tightening torque required for installation is specified at 2.8 N-m, facilitating secure connections without risk of over-tightening or damage to terminals. Additionally, its degree of pollution rating stands at IP3—indicating moderate protection against dust ingress.</p><p>In terms of electrical characteristics, this device supports frequencies between 50/60 Hz and features a Magnetic D curve type—ideal for applications involving motors or transformers due to its ability to manage short-duration surges without tripping unnecessarily.</p><p>Visually identifiable by its RAL 7036 Grey housing color—a standard hue that blends well into most industrial setups—the M300P series combines functionality with aesthetic integration into existing systems.</p><p>Overall, the combination of these features makes the M300P series MCB a dependable choice for professionals seeking durability coupled with efficient circuit protection solutions in their installations.</p>
