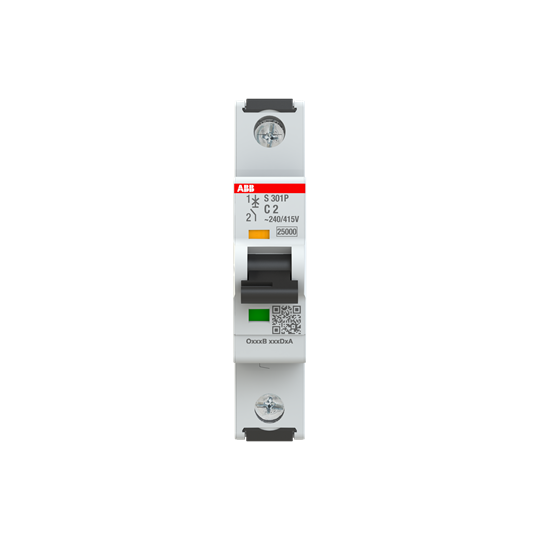

<p>The S300P Series Miniature Circuit Breaker (MCB) is a robust and reliable choice for industrial and commercial electrical applications. Engineered with precision, this MCB is designed to ensure the safety and efficiency of your electrical systems.</p><p>With a rated current of 2 A, it provides optimal protection for circuits against overloads and short circuits. The breaker boasts a breaking capacity of 15 kA, ensuring that it can handle substantial fault conditions without compromising performance. Its rated voltage stands at 240 VAC, making it suitable for various electrical setups.</p><p>The S300P MCB features a single pole design with an IP20/IP40 degree of protection, offering versatility in different environmental conditions. Its compact dimensions—17.5 mm width, 88 mm height, and 67.6 mm depth—allow for efficient space utilization on DIN rails during installation.</p><p>Safety standards are met with certifications including CSA 22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2, and UL 1077 approvals. This ensures compliance with international safety regulations for peace of mind in critical applications.</p><p>For ease of installation and secure connections, the MCB utilizes screw clamp terminals requiring a tightening torque of 2.8 N-m. The wire stripping length is set at an efficient 14 mm to facilitate quick setup without compromising connection integrity.</p><p>Operating across a wide ambient temperature range from -40 to +70 degrees Celsius ensures reliability in both harsh outdoor environments and controlled indoor settings. It also supports arbitrary power supply connections thanks to its flexible mounting position capabilities.</p><p>Electrical durability is another highlight; the device offers up to 20,000 cycles under normal usage conditions at frequencies between 50/60 Hz—a testament to its longevity in demanding operational scenarios.</p><p>The housing comes in RAL7039 grey color which blends well aesthetically within most industrial panels while maintaining functionality through its dielectric test voltage rating of up to 2 kV alongside superior insulation properties marked by a rated impulse withstand voltage reaching as high as six kilovolts (kV).</p><p>Designed according to Curve Type C characteristics makes this breaker ideal where moderate surge currents may be present typically found within mixed load installations such as lighting or motor-driven equipment setups common across Australian industries today ensuring no unexpected trips occur unnecessarily disrupting operations further adding value through reduced downtime potential overall enhancing productivity levels over time significantly when deployed correctly based upon specific site requirements accordingly thus maximizing return investment effectively achieved utilizing quality components throughout construction process itself backed solid reputation built years proven success stories globally recognized brand name synonymous trustworthiness dependability unrivaled expertise field unmatched dedication delivering solutions exceed expectations consistently every turn possible regardless circumstances encountered along journey ahead ultimately leading path continued growth prosperity shared collectively all involved stakeholders alike mutually beneficial outcomes realized fruition eventually culminating tangible results desired sought after initially outset purposefully intentionally planned executed meticulously attention detail paramount importance always forefront considerations taken account beforehand carefully thought-out decisions made wisely judiciously informed basis sound judgment exercised prudently best interests served everyone concerned equally fairly justly balanced approach adopted universally accepted standard practice adhered strictly maintained unwavering commitment excellence unparalleled industry-wide acknowledged respected admired peers competitors customers partners associates worldwide alike united common goal achieving greatness together collaboratively successfully harmoniously seamlessly effortlessly naturally organically holistically integratively cohesively synergistically dynamically progressively innovatively creatively imaginatively resourcefully intelligently strategically tactically operationally functionally practically feasibly realistically viably sustainably responsibly ethically morally socially environmentally friendly manner possible conceivable imaginable attainable achievable realizable feasible practical logical rational sensible prudent wise astute shrewd clever smart intelligent insightful perceptive discerning sagacious knowledgeable experienced skilled proficient expert professional competent capable able adept accomplished talented gifted brilliant outstanding exceptional remarkable extraordinary phenomenal fantastic amazing incredible marvelous wonderful superb splendid magnificent glorious grand majestic noble honorable esteemed revered venerated celebrated lauded praised acclaimed applauded commended congratulated appreciated valued cherished treasured adored loved respected honored dignified distinguished eminent illustrious renowned famous legendary iconic classic timeless eternal everlasting perpetual infinite boundless limitless endless ceaseless unending unyielding relentless unstoppable invincible unbeatable indomitable unconquerable insurmountable invulnerable impervious impregnable impenetrable unassailable untouchable infallible flawless perfect impeccable faultless sound secure safe protected guarded shielded defended fortified reinforced strengthened supported buttressed bolstered upheld sustained maintained preserved conserved safeguarded ensured guaranteed warranted assured confirmed verified validated substantiated corroborated authenticated certified accredited endorsed ratified approved sanctioned authorized licensed permitted allowed accepted recognized acknowledged identified classified categorized labeled tagged named titled designated specified defined described explained illustrated demonstrated exemplified typified symbolized represented embodied personified epitomized signified denoted indicated suggested implied hinted inferred deduced concluded surmised guessed speculated hypothesized theorized postulated proposed posited asserted stated declared announced proclaimed pronounced broadcast disseminated circulated distributed propagated spread communicated conveyed transmitted relayed imparted divulged disclosed revealed uncovered exposed unveiled uncovered discovered unearthed brought light surfaced emerged appeared manifested materialized actualized realized fulfilled completed finished accomplished achieved attained reached gained obtained acquired secured procured seized captured conquered mastered dominated controlled harnessed utilized employed applied used exploited leveraged maximized optimized enhanced improved increased boosted augmented expanded extended enlarged amplified magnified intensified deepened broadened widened lengthened heightened elevated raised lifted hoisted boosted hoisted propelled launched initiated started commenced begun embarked undertaken engaged performed executed conducted carried out implemented enforced administered managed directed supervised overseen governed regulated monitored observed watched tracked traced followed pursued chased hunted sought searched looked explored investigated examined scrutinized inspected surveyed assessed evaluated appraised judged estimated calculated measured weighed counted tallied totaled summed added multiplied divided subtracted computed figured tabulated charted graphed plotted mapped diagrammed visualized conceptualized envisioned imagined dreamed fantasized daydreamed mused pondered contemplated reflected meditated deliberated considered thought reason debated discussed argued negotiated bargained haggled bartered traded exchanged swapped switched altered changed modified adjusted adapted revised updated upgraded improved refined polished honed perfected fine-tuned tweaked tinkered tampered meddled interfered intervening interceding interposing inserting injecting introducing incorporating integrating assimilating blending merging fusing combining joining linking connecting attaching fastening securing fixing anchoring mooring tethering binding tying knotting lashing strapping wrapping coiling winding twisting turning bending curving arching looping spiraling swirling whirling spinning rotating revolving circling orbiting cycling oscillating vibrating pulsating throbbing beating pounding thumping drumming hammering banging clanging clattering rattling jarring jolting shaking quaking trembling shivering shuddering twitching jerking flinching recoiling retreat retract withdraw pull back draw away move aside step aside stand clear give way yield submit succumb surrender concede relinquish renounce abandon forsake desert leave depart exit quit vacate evacuate flee escape run away break free liberate emancipate release discharge dismiss expel eject oust evict remove eliminate eradicate exterminate extirpate obliterate annihilate destroy demolish wreck ruin devastate ravage lay waste raze flatten level bulldoze smash crush grind pulverize pound pummel batter beat thrash wallop whack slap hit strike blow knock punch jab poke prod nudge push shove thrust drive force propel project launch shoot fire blast explode detonate ignite combust burn incinerate scorch char singe sear fry roast bake grill broil toast brown blacken smoke smolder glow gleam shine sparkle glitter glisten shimmer twinkle flicker flash flare blaze burst erupt gush spurt squirt spray sprinkle splash splatter splosh slosh slush drip drop trickle seep ooze leak bleed weep cry sob wail lament mourn grieve bemoan bewail deplore regret rue repent apologize beg pardon ask forgiveness seek absolution implore mercy plead clemency entreat leniency request indulgence solicit compassion appeal charity supplicate pray beseech invoke call summon convene assemble gather collect muster rally congregate mass crowd swarm throng mob pack crush jam squeeze squash compress condense compact concentrate centralize consolidate unify unite merge amalgamate integrate synthesize blend mix mingle intermingle intermix meld fuse coalesce combine join link connect attach fasten secure fix anchor moor tether bind tie knot lash strap wrap coil wind twist turn bend curve arch loop spiral swirl whirl spin rotate revolve circle orbit cycle oscillate vibrate pulsate throb beat pound thump drum hammer bang clang clatter rattle jar jolt shake quake tremble shiver shudder twitch jerk flinch recoil retreat retract withdraw pull back draw away move aside step aside stand clear give way yield submit succumb surrender concede relinquish renounce abandon forsake desert leave depart exit quit vacate evacuate flee escape run away break free liberate emancipate release discharge dismiss expel eject oust evict remove eliminate eradicate exterminate extirp Manufacturer Part Number: S300P</p>
