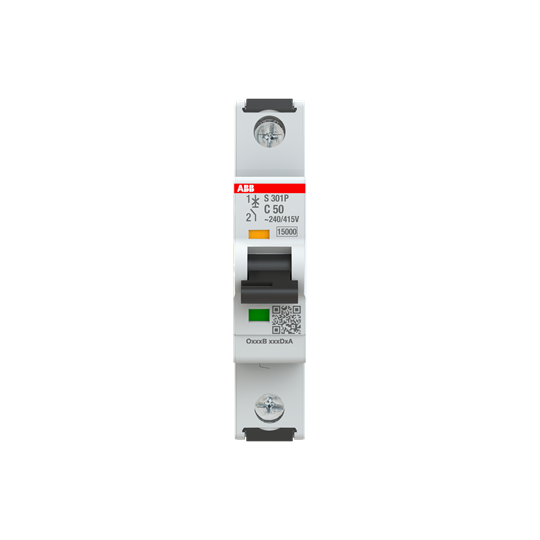

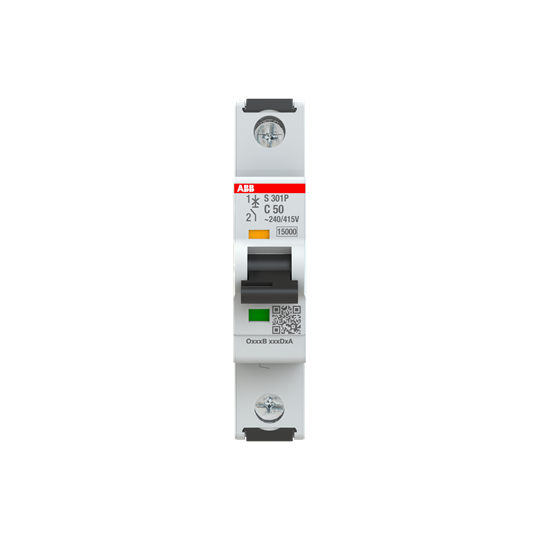

<p>The S300P series MCB is a reliable choice for industrial and commercial applications, offering robust performance and dependable protection. Designed with precision, it caters to the needs of professionals seeking a mid-cycle product that delivers consistent results without compromise.</p><p>This miniature circuit breaker (MCB) operates at a rated current of 50 A and supports a rated voltage of 240 VAC. Its breaking capacity stands at an impressive 15 kA, ensuring effective interruption in case of overload or short circuits. With an IP20/IP40 degree of protection, this device is suitable for environments where solid foreign objects pose potential risks.</p><p>Constructed with durability in mind, the S300P features electrical endurance up to 10,000 cycles. It adheres to international standards such as IEC/EN 60898-1 and UL 1077, confirming its compliance with rigorous safety requirements. The MCB&#39;s rated impulse withstand voltage is set at 6 kV while maintaining a dielectric test voltage of 2 kV.</p><p>Installation flexibility is another highlight; the device mounts conveniently on DIN rails and can be positioned in any orientation. The screw clamp terminal type facilitates secure connections with a tightening torque specification of 2.8 N-m, accommodating wire stripping lengths up to 14 mm.</p><p>The compact dimensions—17.5 mm width by 88 mm height by 67.6 mm depth—make it easy to integrate into existing setups without requiring extensive modifications. Despite its small size, it maintains a sturdy build weighing just 0.124 kg.</p><p>Rated for ambient temperatures ranging from -40 to +70 degrees Celsius during operation, this MCB ensures reliable performance across various climates typical in Australia’s diverse regions—from chilly southern winters to scorching northern summers.</p><p>Its power loss rating is minimal at only 3.7 W which contributes positively towards energy efficiency goals within your installations while reducing overall operational costs over time due largely thanks also due partly because its housing color matches RAL7039 grey providing aesthetic consistency alongside other equipment pieces already present onsite potentially improving visual coherence throughout entire systems involved therein too!</p><p>For those considering technical specifications crucial when selecting components like these ones here today: rest assured knowing full well each aspect has been thoroughly tested verified according applicable industry benchmarks including CSA22-2No235 IEC/EN60947-2 plus more besides all aimed ultimately delivering peace mind users everywhere who choose invest wisely their future endeavors alike!</p>
