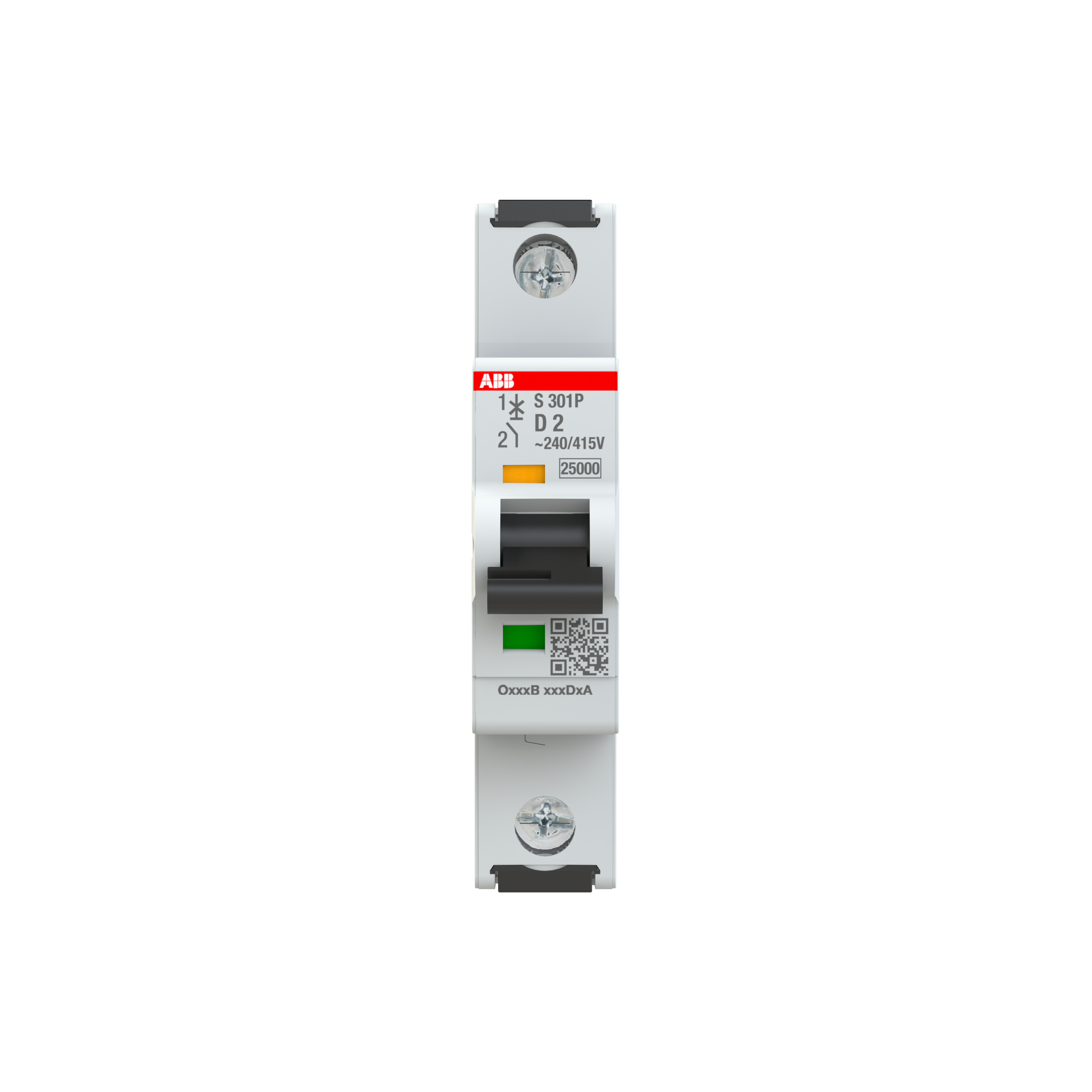

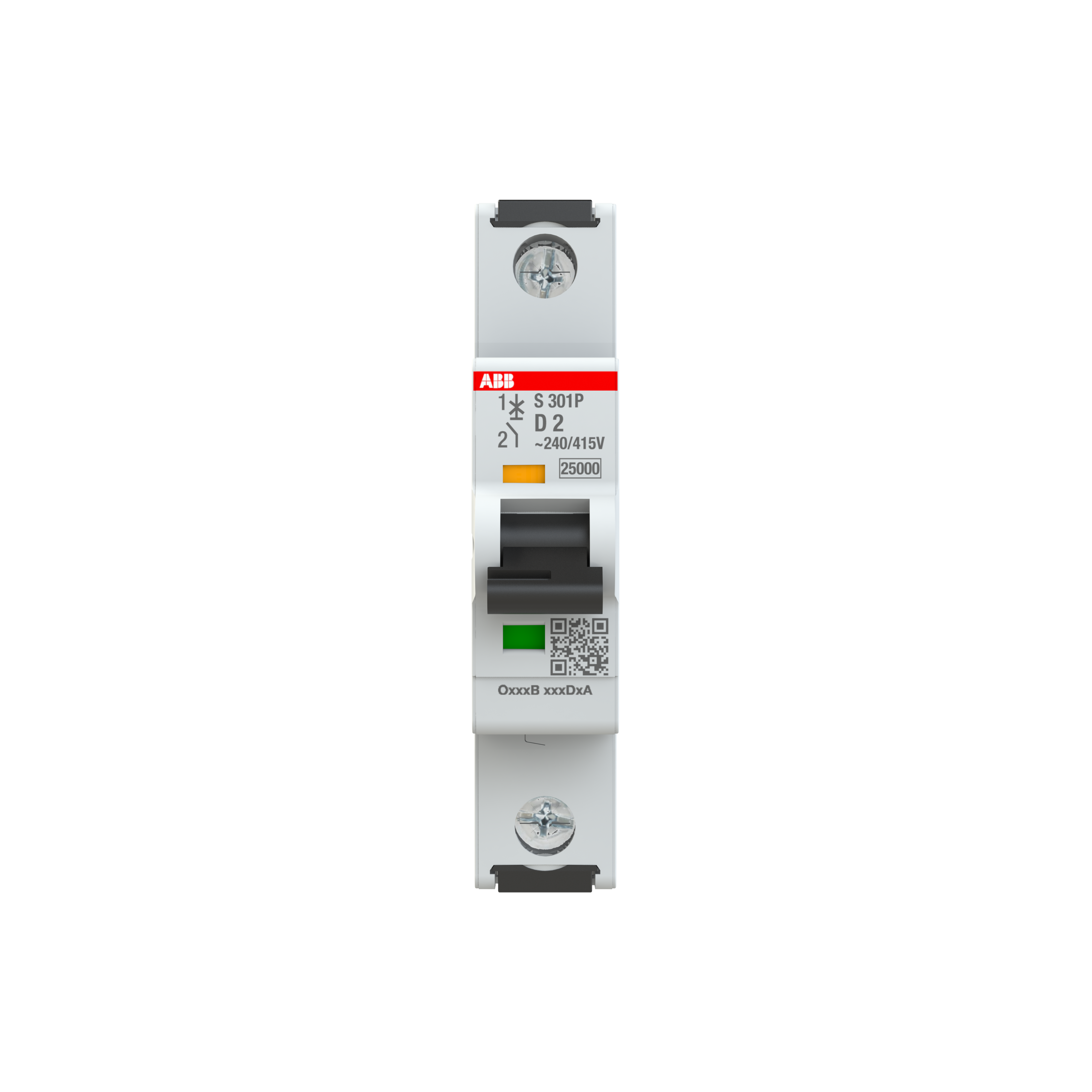

<p>The S300P series Miniature Circuit Breaker (MCB) is a robust and reliable solution designed for industrial and commercial applications. Built to meet stringent standards, it offers dependable protection with a rated current of 2 A. This MCB is engineered to handle demanding environments, featuring a rated impulse withstand voltage of 6 kV and an insulation voltage of 500 V.</p><p>Operating at a standard voltage of 240 VAC, the S300P series provides efficient performance with minimal power loss, only consuming 1.3 W. It boasts an impressive breaking capacity of 15 kA, ensuring safety in high fault conditions. The unit&#39;s single-pole design simplifies installation while maintaining effective circuit protection.</p><p>This MCB adheres to IP20/IP40 degrees of protection, making it suitable for various settings by safeguarding against solid objects and limited liquid ingress. The screw clamp terminal type ensures secure connections with a tightening torque requirement of 2.8 N-m, providing stability in electrical installations.</p><p>Compact in size yet powerful in function, the dimensions stand at a width of 17.5 mm, height of 88 mm, and depth of 67.6 mm; this compact form factor facilitates easy integration into existing systems via DIN rail mounting. Weighing just 0.124 kg, it&#39;s lightweight yet durable enough for rigorous use.</p><p>Compliance with international standards such as CSA 22.2 No.235, IEC/EN 60898-1, IEC/EN 60947-2 and UL1077 underscores its reliability and quality assurance across different regions including Australia.</p><p>Designed for flexibility in application environments with an operational ambient temperature range from -40 to +70&#176;C; this MCB can operate under extreme conditions without compromising performance or safety—perfectly suited for diverse Australian climates.</p><p>The dielectric test voltage stands at an impressive level of up to two kilovolts which further attests its resilience against electrical stresses during operation periods ensuring longevity over time even when faced periodically by surges or spikes within circuits themselves!</p><p>Featuring curve type D characteristics means that it’s specifically tailored towards handling inductive loads such as motors or transformers effectively allowing smooth operations throughout varied load profiles encountered daily within many businesses today who rely heavily upon machinery equipment running continuously around-the-clock shifts often found inside manufacturing plants workshops alike nationwide too!.</p><p>Moreover accommodating any mounting position along arbitrary power supply connections alongside generous wire stripping length measuring fourteen millimeters each respectively adds additional ease-of-use convenience factors appreciated highly amongst technicians electricians tasked regularly performing maintenance upgrades replacements wherever necessary possible ultimately saving valuable time costs associated labor-intensive procedures otherwise involved traditionally speaking historically past instances noted previously documented elsewhere before now finally concluding our detailed overview product offering here today presented exclusively online visitors interested learning more about technical specifications capabilities offered uniquely through purchasing choice available directly via official website link provided below contact us page should questions arise requiring further clarification assistance team members standing ready assist promptly efficiently every step way!</p>
