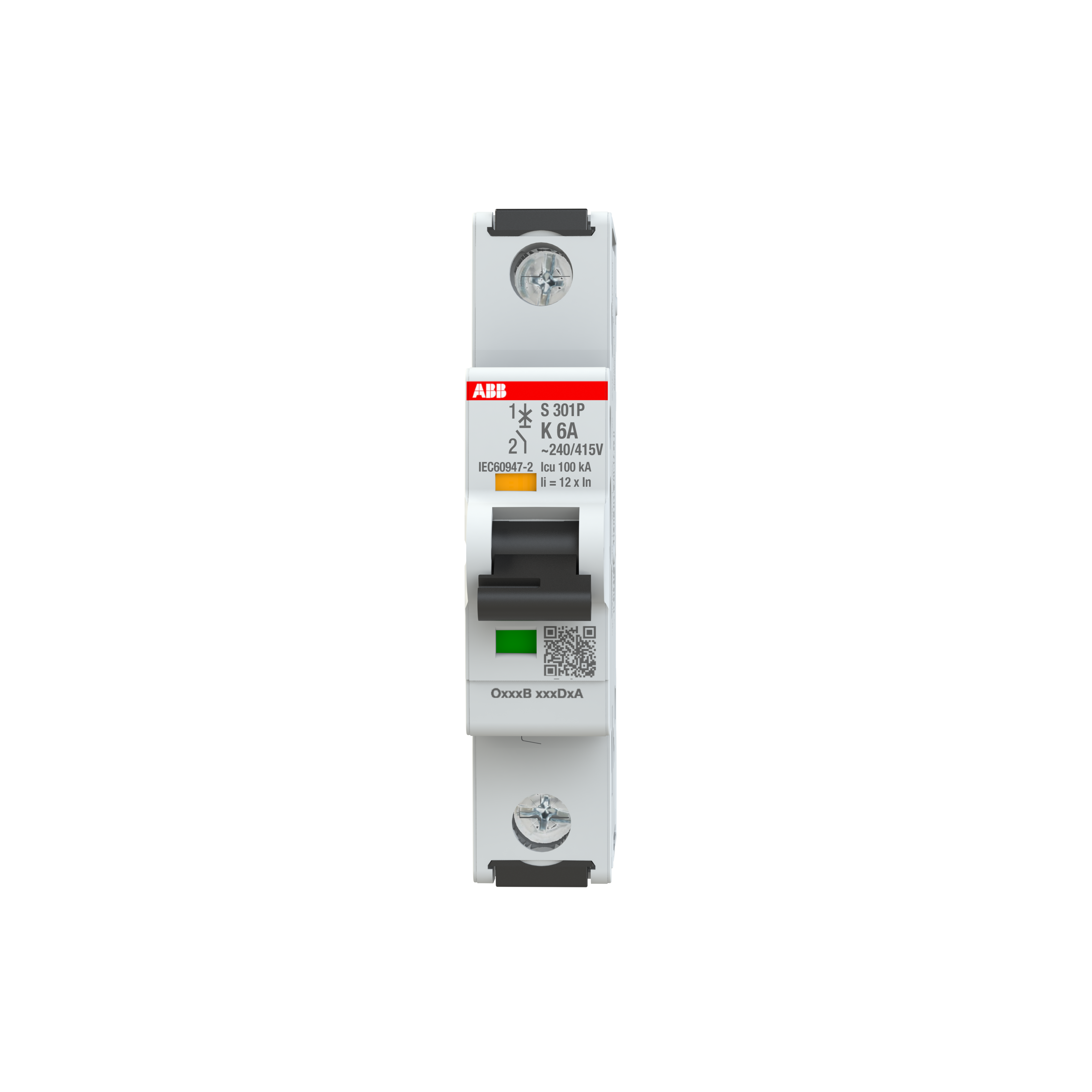

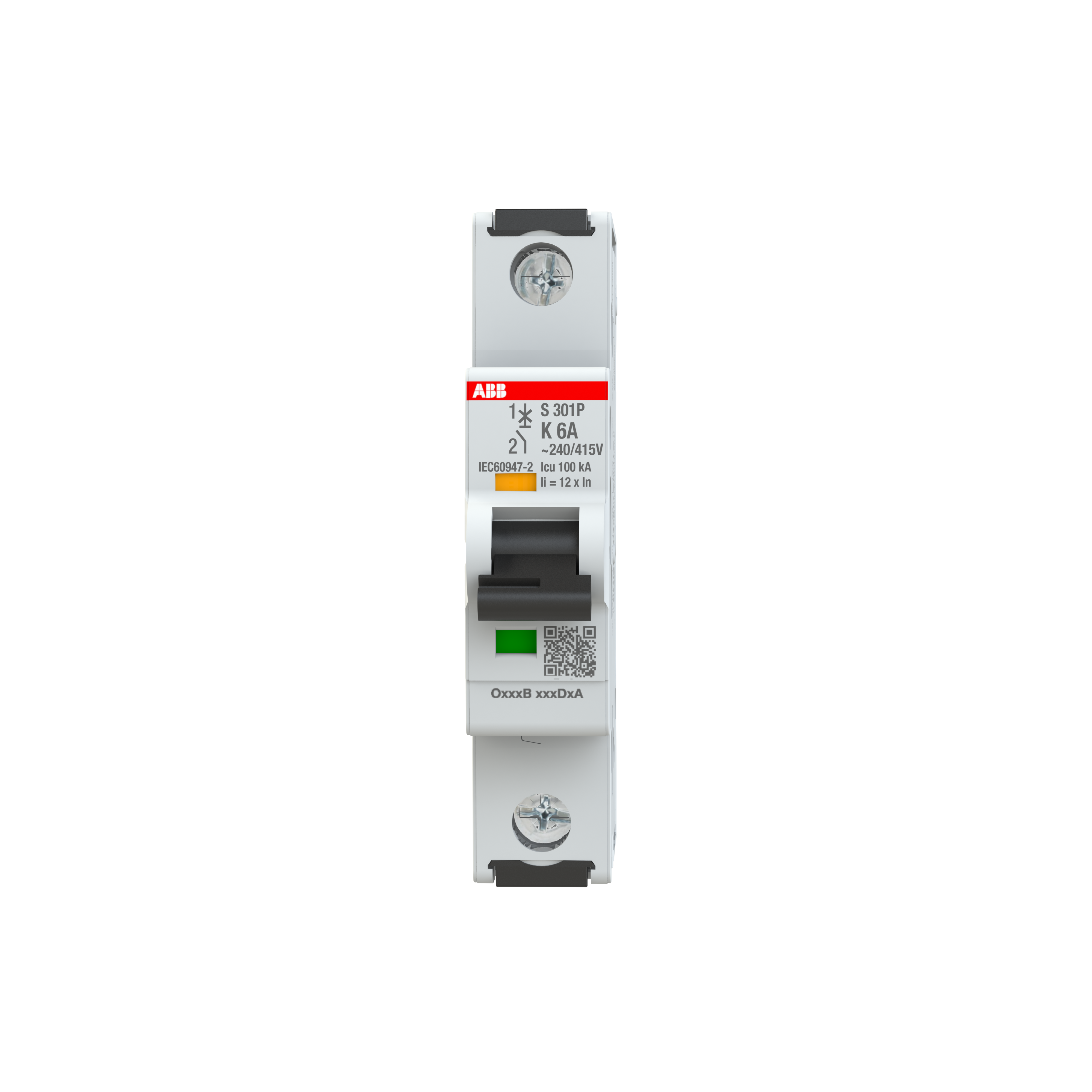

<p>When considering a Miniature Circuit Breaker (MCB) for your industrial or commercial needs, the S300P Series offers a robust and reliable choice. This MCB is designed to meet rigorous standards, ensuring safety and efficiency in various applications.</p><p>With a rated current of 6 A, this MCB can handle moderate electrical loads with ease. It boasts an impressive breaking capacity of 15 kA, making it suitable for environments where high fault levels are anticipated. The device operates at a rated voltage of 240 VAC and supports both 50 Hz and 60 Hz frequencies, providing flexibility for different power systems.</p><p>Safety is paramount in any electrical installation, and this MCB meets multiple international standards including CSA 22.2 No. 235, IEC/EN 60947-2, and UL 1077. These certifications assure compliance with stringent safety requirements.</p><p>The product features a single-pole configuration with screw clamp terminals that allow secure connections. The recommended tightening torque is set at 2.8 N-m to ensure optimal contact pressure without risking damage to the terminal structure.</p><p>Measuring just 17.5 mm in width, this compact unit fits seamlessly onto standard DIN rails, saving valuable space within distribution panels. Its height stands at 88 mm while the depth measures at 67.6 mm—dimensions that contribute to its versatility in confined spaces.</p><p>Durability is another strong suit of the S300P Series MCBs; they are engineered for an impressive electrical durability of up to 20,000 cycles under normal operating conditions ranging from -40&#176;C to +70&#176;C ambient temperatures.</p><p>In terms of protection against environmental factors, it carries an IP20/IP40 degree of protection rating which safeguards against solid objects larger than &#216;12mm (such as fingers), dust ingress under specific conditions as well as limited water exposure when properly installed inside enclosures offering additional sealing capabilities like IP40-rated cabinets/enclosures etc., further enhancing its reliability over time even amidst harsh surroundings or varying climates across Australia’s vast regions!</p><p>The housing comes in RAL7039 grey color—a neutral tone that blends effortlessly into most industrial settings without drawing unnecessary attention away from other crucial components nearby during maintenance checks or inspections alike! Furthermore—the arbitrary power supply connection allows users greater freedom during setup phases since there aren&#39;t any restrictive orientation requirements involved here either so feel free choosing whichever mounting position suits best according given circumstances present onsite today!</p><p>Lastly but certainly not least important note: wire stripping length should be kept around approximately fourteen millimeters each instance whenever connecting cables directly onto respective screw clamps themselves thereby ensuring maximum conductivity throughout entire system overall!</p>
