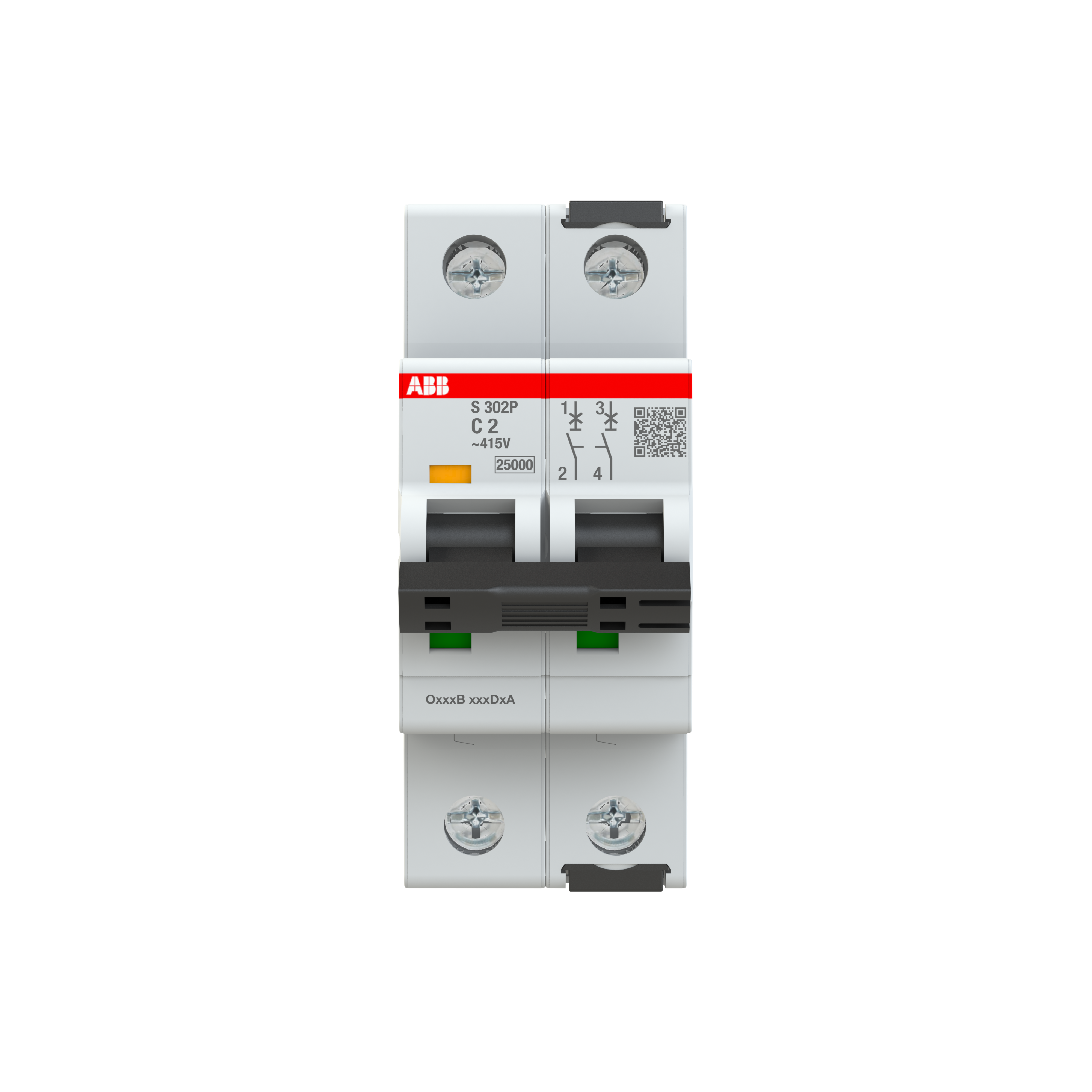

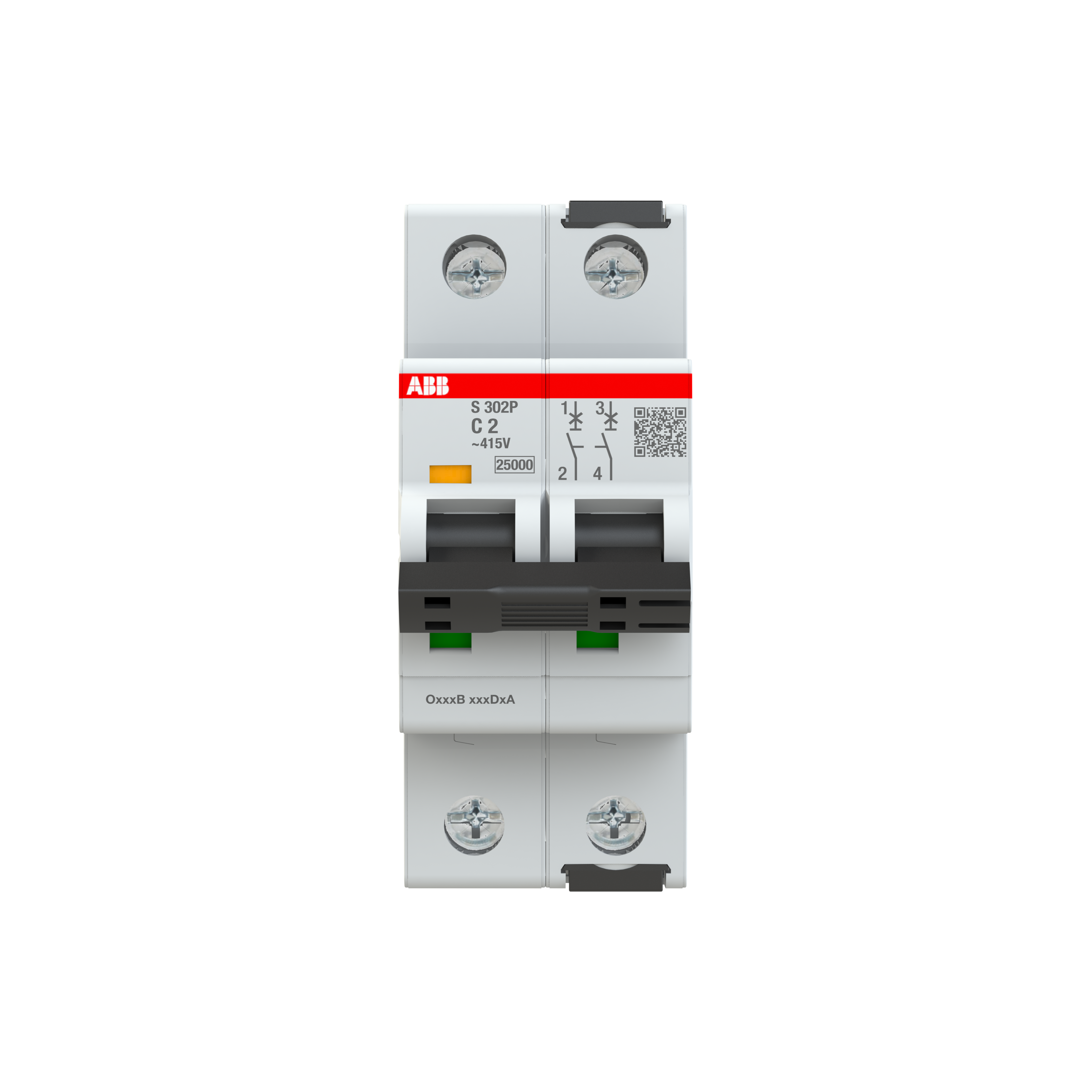

<p>The S300P Series MCB is a robust and reliable choice for industrial and commercial electrical systems. Designed to meet the rigorous demands of modern installations, this Miniature Circuit Breaker (MCB) offers a comprehensive set of features that ensure safety and efficiency.</p><p>With a rated current of 2 A, this MCB provides precise protection for your electrical circuits. It operates efficiently across standard voltages with a rated voltage of 415 VAC and can withstand impulse voltages up to 6 kV. The device&#39;s insulation voltage stands at an impressive 500 V, ensuring reliable operation under various conditions.</p><p>Safety is paramount in any electrical system, and the S300P Series does not disappoint. With a breaking capacity of 15 kA and a short circuit capacity reaching up to 25 kA, it effectively safeguards against potential overloads or faults. The MCB&#39;s degree of protection is specified as IP20/IP40, making it suitable for environments where dust ingress needs to be minimized.</p><p>Installation flexibility is another key feature, thanks to its screw clamp terminal type which supports secure connections with a tightening torque of 2.8 N-m. The DIN Rail mounting type allows for straightforward integration into existing setups while accommodating any mounting position required by your design specifications.</p><p>This MCB also boasts excellent durability with an electrical endurance rating of up to 20,000 cycles, ensuring long-term reliability in demanding applications. Its dielectric test voltage is rated at 2 kV further highlighting its resilience against high-voltage surges.</p><p>The product measures at a compact width of 35 mm, height of 88 mm, and depth of 69 mm making it ideal for space-constrained installations without compromising on performance or safety standards such as CSA 22.2 No.235 IEC/EN60898-1 IEC/EN60947-2 UL1077 compliance.</p><p>Designed for versatility across diverse operational environments from -40&#176;C to +70&#176;C ambient temperatures this device adapts seamlessly whether you&#39;re operating in harsh cold or intense heat scenarios—a true testament to its engineering excellence.</p><p>For optimal wire connection efficiency use the recommended wire stripping length set precisely at14mm enabling quick setup times during installation phases thus reducing overall project downtime significantly when managing large-scale deployments where time equates directly back into cost savings over prolonged periods given consistent usage patterns observed within industry-standard practices globally today!</p><p>In terms of aesthetics housing color matches RAL7039 grey providing neutral tones blending well alongside other components typically found inside control panels ensuring uniformity throughout entire assemblies regardless if new builds retrofits alike!</p><p>Overall if you require dependable mid-cycle life span solutions look no further than choosing our highly regarded series offering unparalleled value combined together through technical prowess backed by decades worth expertise delivering peace mind every step way!</p>
