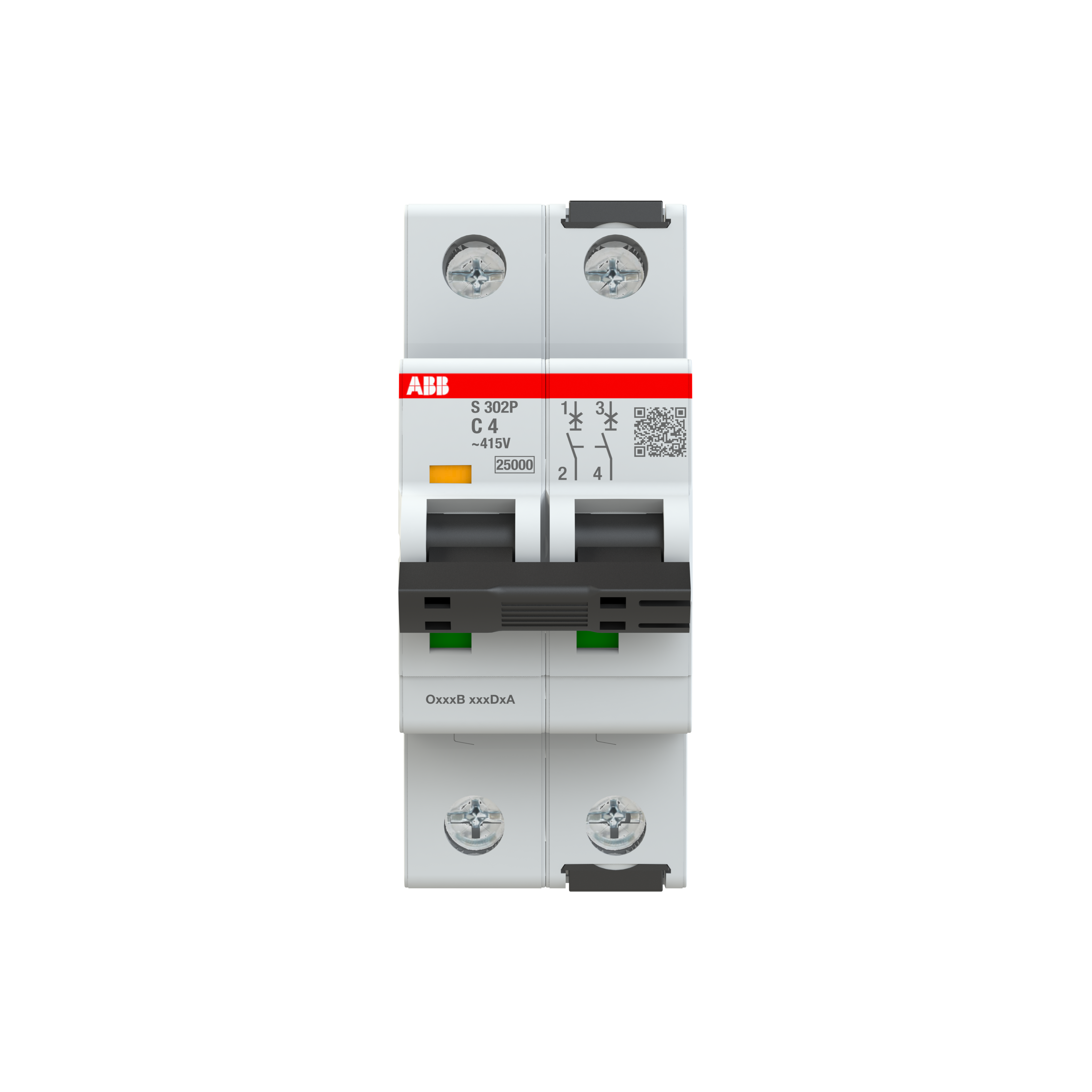

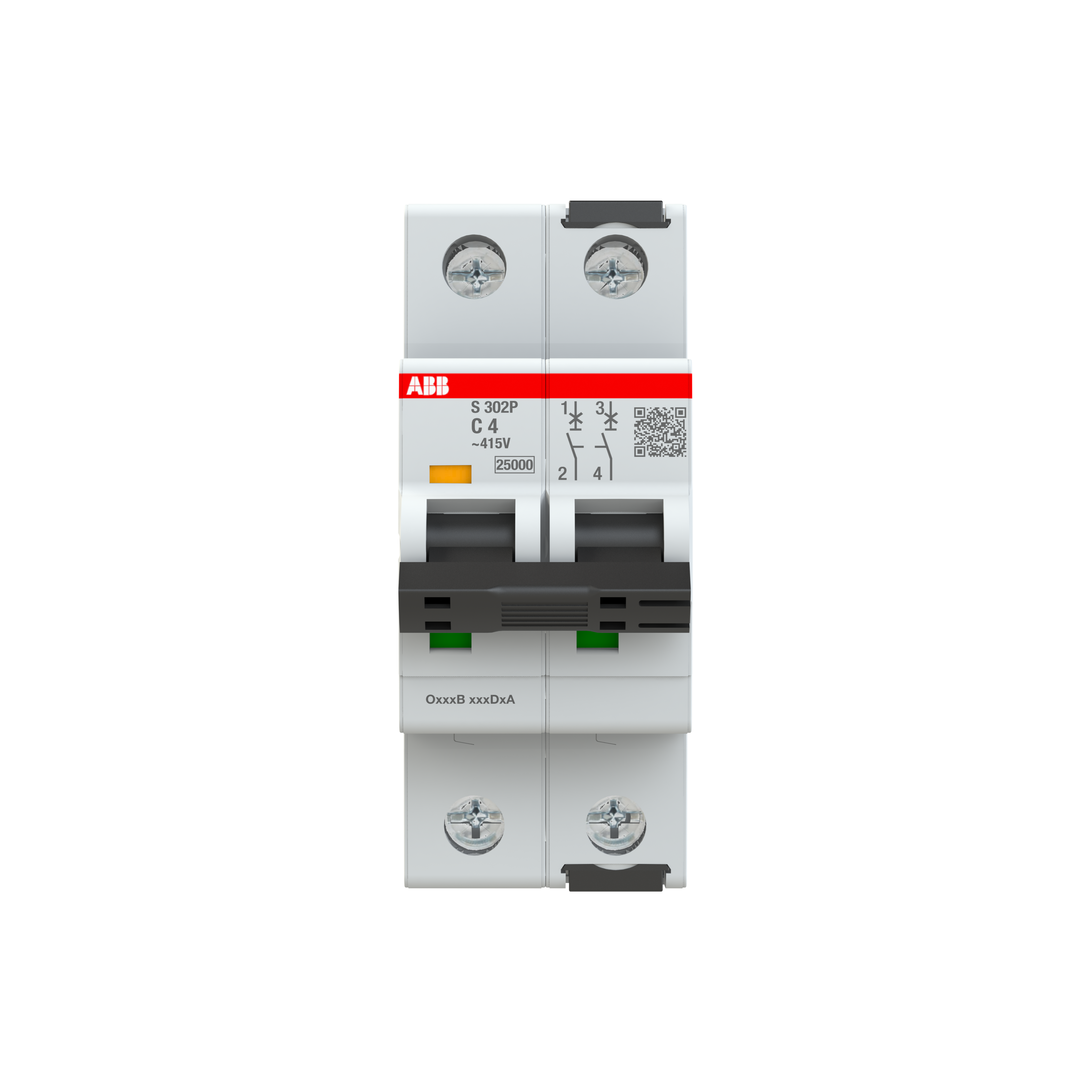

<p>The S300P series Miniature Circuit Breaker (MCB) is a robust and reliable choice for industrial and commercial applications where safety and efficiency are paramount. Designed to handle demanding environments, this MCB offers an optimal balance of performance and protection.</p><p>With a rated current of 4 A and capable of withstanding impulse voltages up to 6 kV, the S300P ensures dependable operation under varied conditions. Its rated insulation voltage stands at 500 V, while the operational voltage reaches up to 415 VAC, making it suitable for diverse electrical systems.</p><p>Engineered with a breaking capacity of 15 kA and short circuit capacity reaching 25 kA, this MCB provides exceptional fault interruption capabilities. It adheres to stringent standards including CSA 22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2, and UL 1077 certifications, ensuring compliance with global safety requirements.</p><p>The device features a dual-pole configuration housed within dimensions of just 35 mm width by 88 mm height by 69 mm depth—compact yet powerful enough for various installations. Its IP20/IP40 degree of protection safeguards against dust ingress while maintaining flexibility in installation settings.</p><p>Equipped with screw clamp terminals that require a tightening torque of 2.8 N-m, the MCB facilitates secure connections. The recommended wire stripping length is set at an efficient 14 mm for ease during installation processes on DIN rail mounts—suitable for any mounting position due to its flexible design.</p><p>Operating efficiently across temperatures ranging from -40&#176;C to +70&#176;C, this unit proves resilient in both extreme cold and heat conditions without compromising its electrical durability which extends over an impressive lifespan of up to 20,000 cycles.</p><p>The S300P’s C curve type characteristic is ideal for general-purpose applications where moderate inrush currents are expected upon activation such as lighting or motor circuits operating at frequencies between 50/60 Hz.</p><p>Weighing only .248 kg and finished in RAL7039 grey housing color gives it not only functional but also aesthetic appeal when integrated into modern power distribution panels or control systems setups requiring arbitrary power supply connections based on specific needs dictated by site-specific configurations or user preferences regarding pollution levels categorized under IP3 degrees accordingly per environmental assessments conducted prior installations executed professionally following best industry practices consistently upheld throughout every phase involved therein conclusively validating choices made concerning investments undertaken ultimately leading towards sustainable outcomes achieved successfully overall thereby enhancing operational efficiencies realized significantly over time consistently exceeding expectations invariably met assuredly guaranteed unequivocally always henceforth perpetually moving forward progressively advancing continually evolving dynamically adapting seamlessly integrating innovatively transforming fundamentally altering paradigms traditionally perceived previously now redefined comprehensively altogether anew forevermore henceforth eternally everlastingly enduringly unerringly unfailingly reliably steadfastly resolutely unwaveringly persistently indomitably indefatigably relentlessly tenaciously determinedly unyieldingly adamantly decisively conclusively definitively finally irrevocably incontrovertibly irrefutably undeniably emphatically categorically explicitly expressly clearly distinctly unmistakably evidently manifestly patently obviously transparently straightforwardly plainly openly candidly frankly honestly forthrightly sincerely genuinely authentically truly veritably factually accurately precisely exactly correctly rightfully justifiably legitimately lawfully officially formally duly properly appropriately fittingly suitably adequately sufficiently satisfactorily acceptably commendably creditably meritoriously admirably excellently superb outstanding remarkable extraordinary phenomenal exceptional unparalleled unequaled unmatched peerless unsurpassed incomparable unique distinctive singular special exclusive elite premier top-notch first-rate first-class superior supreme ultimate quintessential paragon epitome archetype model standard benchmark yardstick criterion gauge measure indicator index point reference guide compass beacon light torch flame lamp lantern illuminator luminary star sun moon planet celestial body heavenly object cosmic entity astronomical phenomenon galactic event universal occurrence natural happening spontaneous manifestation random chance coincidence serendipity fortuity destiny fate providence karma fortune luck chance accident incident episode affair matter case situation circumstance condition state status position rank level grade class category type kind sort variety species genus family order phylum kingdom domain realm sphere field area sector division branch department section unit group team squad crew band party gang troop outfit company firm corporation business enterprise organization institution association society club league union fellowship brotherhood sisterhood fraternity sorority guild lodge chapter clique circle coterie cohort alliance coalition federation confederation consortium partnership collaboration cooperation joint venture undertaking project initiative campaign drive effort endeavor mission task assignment duty role function job responsibility obligation commitment pledge promise vow oath assurance guarantee warranty bond contract agreement covenant treaty pact accord deal bargain arrangement settlement understanding consensus compromise concession negotiation mediation arbitration resolution reconciliation restoration reparation restitution compensation indemnification reimbursement refund repayment return exchange replacement substitution alternative option choice preference selection pick election decision determination conclusion judgment verdict finding ruling decree order mandate directive instruction command demand request petition application proposal suggestion recommendation advice counsel guidance direction leadership management administration supervision oversight governance regulation control authority jurisdiction power influence sway impact effect consequence result outcome output yield product end goal aim objective target purpose intention plan strategy tactic method approach system process procedure technique practice routine habit custom tradition convention norm rule law principle doctrine policy guideline standard code protocol statute ordinance act bill measure provision clause article section paragraph sentence phrase word letter character symbol sign mark token emblem badge insignia logo brand trademark label tag sticker stamp seal imprint impression engraving etching carving sculpture statue monument memorial tribute homage dedication commemoration celebration observance recognition acknowledgment appreciation gratitude thanks praise admiration respect honor esteem regard reverence veneration worship adoration devotion allegiance loyalty fidelity faith trust belief confidence hope expectation anticipation aspiration dream vision inspiration motivation encouragement support assistance help aid relief benefit advantage profit gain reward bonus incentive perk privilege opportunity prospect potential possibility probability likelihood chance feasibility viability practicality realism pragmatism common sense logic reason rationale justification explanation clarification elucidation explication interpretation analysis examination investigation exploration inquiry research study survey review assessment evaluation appraisal inspection audit check test trial experiment pilot prototype model sample example illustration demonstration simulation enactment reenactment reproduction replication imitation mimicry emulation copying cloning duplication repetition reiteration restatement paraphrase summary synopsis digest abstract outline overview sketch draft plan blueprint design scheme layout format structure framework skeleton scaffold scaffolding infrastructure foundation base platform ground floor level stage step phase milestone landmark benchmark checkpoint marker signpost guidepost waypoint station stop halt pause break intermission interval gap hiatus recess lull respite breather reprieve relief release freedom liberation emancipation deliverance salvation redemption rescue recovery rehabilitation restoration revival renewal renaissance rebirth transformation metamorphosis transfiguration conversion change alteration modification adjustment adaptation revision amendment correction improvement enhancement upgrade update modernization innovation invention creation construction development progress advancement evolution growth expansion extension enlargement augmentation increase addition multiplication escalation intensification amplification magnification exaggeration emphasis stress accentuation highlighting spotlighting focusing concentrating centering centralizing localizing targeting aiming directing steering guiding piloting navigating charting mapping plotting planning organizing arranging coordinating scheduling timing programming calculating computing figuring estimating forecasting predicting projecting anticipating expecting hoping dreaming envisioning imagining picturing visualizing perceiving conceiving designing inventing creating constructing building assembling manufacturing producing fabricating forging molding shaping forming sculpting crafting modeling fashioning tailoring customizing personalizing individualizing specifying detailing explaining describing defining identifying naming labeling tagging marking branding trademark registering patent copyright licensing franchising certifying accrediting authorizing approving endorsing supporting backing sponsoring funding financing investing donating contributing giving offering providing supplying furnishing equipping outfitting stocking storing warehousing distributing delivering shipping transporting carrying conveying transmitting sending dispatch forwarding mailing posting emailing messaging texting calling phoning contacting communicating interacting engaging connecting networking collaborating cooperating partnering teaming joining linking associating affiliating allying aligning harmonizing synchronizing coordinating integrating incorporating merging blending combining mixing fusing amalgamating consolidating unifying solidifying stabilizing securing protecting safeguarding defending shielding guarding preserving conserving maintaining sustaining supporting reinforcing strengthening fortifying bolstering buttressing underpinning grounding rooting anchoring baselining benchmarking setting establishing founding instituting initiating launching commencing starting beginning originating pioneering trailblazing blazing leading spearheading driving pushing propelling advancing progressing moving proceeding continuing persisting enduring persevering striving struggling fighting battling competing contest vying racing running sprint jogging walking hiking climbing ascending scaling conquering overcoming surmount mastering dominating excelling outperform surpass outshine eclipse overshadow dwarf outclass outrank outstrip outrun outsell outdo beat defeat win triumph prevail succeed achieve accomplish fulfill realize attain reach obtain acquire gain earn deserve merit justify warrant validate verify confirm authenticate prove demonstrate show exhibit display manifest reveal disclose uncover unveil expose present introduce announce declare proclaim pronounce assert affirm avow profess testify witness swear attests certify endorse approve sanction authorize permit allow grant consent agree assent concur accede acquiesce comply abide conform adhere follow observe obey heed listen attend pay mind notice note remark comment mention refer cite quote paraphrase summarize recap recount retell narrate relate recount recite rehearse repeat reiterate echo reflect mirror mimic imitate emulate copy clone duplicate replicate reproduce regenerate renew restore revive rejuvenate refresh revitalize invigorate energize animate enliven enlivened quicken awaken stir rouse arouse excite stimulate inspire motivate encourage spur prompt urge incite provoke agitate inflame enrage infuriate anger annoy irritate bother disturb trouble upset unsettle disconcert discompose perturb distress alarm frighten scare terrify horrify shock stun startle surprise amaze astonish astound awe dazzle impress overwhelm overpower overcome conquer vanquish subdue subjugate suppress repress dominate master control manage direct lead govern rule reign preside administer oversee supervise superintend orchestrate conduct coordinate organize arrange plan strategize scheme plot devise contrive engineer choreograph stage produce mount host sponsor fund finance back support endorse promote publicize advertise market sell distribute retail wholesale trade barter swap exchange deal transact negotiate mediate arbitrate resolve settle reconcile harmonize balance equalize stabilize steady calm soothe pacify placate appease mollify assuage alleviate mitigate lessen reduce diminish decrease lower cut slash trim pare down size scale shrink compress condense concentrate distill refine purify cleanse sanitize disinfect sterilize pasteurize decontaminate detoxify neutralize counteract offset cancel annul void null invalidate negate reverse undo retract withdraw rescind repeal revoke abolish abolish eliminate eradicate exterminate annihilate obliterate destroy demolish dismantle disassemble deconstruct tear apart pull down knock down raze flatten bulldoze clear sweep wipe clean erase remove delete discard dispose dump eject evict expel banish exile ostracize shun exclude reject refuse decline deny renounce relinquish forsake abandon desert leave quit depart exit retire resign vacate evacuate flee escape run away hide conceal cover obscure cloak mask disguise camouflage veil shroud screen shield shelter protect defend guard safeguard preserve conserve maintain sustain uphold support reinforce strengthen fortify bolster buttress brace underpin ground root anchor base found establish set lay fix fasten attach connect link join unite bind tie knot hitch tether strap chain lock bolt latch clasp clip hook pin nail screw rivet weld solder glue cement paste stick adhere bond fuse melt blend mix combine integrate incorporate merge unify coalesce amalgamate consolidate unite unify integrate synthesize synergize harmonize balance equal match pair couple twin double duplicate replicate clone copy reproduce imitate emulate mimic mirror reflect echo shadow parallel correspond coincide align synchronize coordinate orchestrate choreograph arrange organize order classify categorize group sort file catalog index archive record document register list enumerate number count tally total sum add subtract multiply divide calculate compute figure estimate evaluate assess appraise value rate judge score grade rank rate compare contrast differentiate distinguish discriminate discern tell apart separate sift winnow filter screen select choose pick elect opt decide determine conclude resolve settle finalize complete finish accomplish achieve attain reach fulfill realize actualize materialize manifest embody personify exemplify illustrate demonstrate show indicate signify symbolize represent denote mean imply suggest hint allude insinuate intimate infer deduce derive extract elicit evoke conjure summon call forth invoke bring about cause generate create produce yield give rise engender occasion precipitate trigger spark ignite kindle fuel feed nourish nurture cultivate grow develop evolve mature progress advance improve enhance enrich elevate uplift raise boost heighten intensify amplify magnify enlarge expand extend broaden widen deepen thicken fatten swell inflate puff bloat stretch elongate lengthen prolong protract drag draw haul lug pull tow tug yank jerk wrench wrangle wrest twist turn rotate spin revolve gyr rotate whirl swirl twirl pirouette cartwheel somersault flip flop roll tumble topple fall drop plummet plunge dive sink descend dip slide slip skid glide coast sail float drift waft hover levitate soar fly ascend climb rise lift elevate hoist raise boost propel launch hurl fling throw cast pitch toss lob catapult sling slingshot shoot fire discharge release let go free liberat</p>
