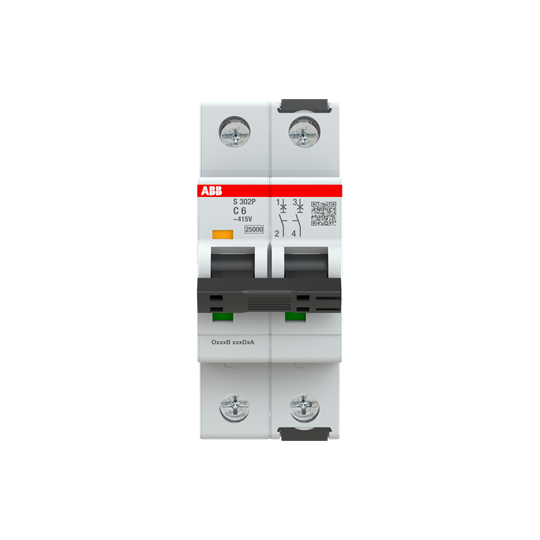

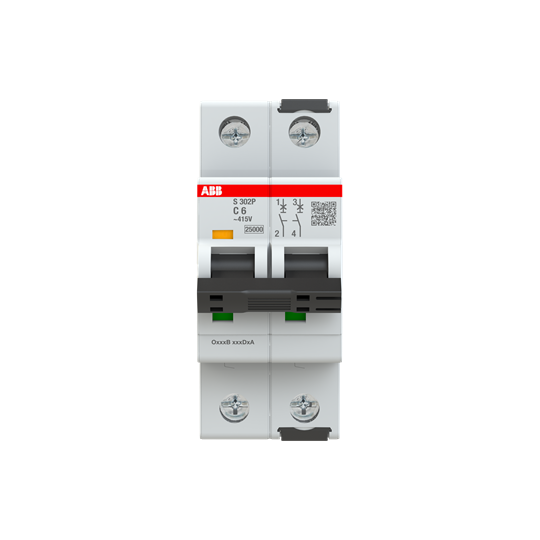

<p>The S300P series Miniature Circuit Breaker (MCB) is designed for industrial and commercial use, providing reliable protection for electrical circuits. With a rated current of 6 A and a breaking capacity of 15 kA, this MCB ensures robust performance under demanding conditions. Its rated voltage is 415 VAC, making it suitable for various applications.</p><p>This MCB features a two-pole configuration, with a rated impulse withstand voltage of 6 kV and an insulation voltage of 500 V. It adheres to high safety standards, conforming to CSA 22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2, and UL 1077 certifications.</p><p>Designed with practicality in mind, the device uses screw clamp terminals that provide secure connections with a tightening torque of 2.8 N-m. The wire stripping length required is just 14 mm, simplifying installation processes.</p><p>Measuring at a compact width of 35 mm by height of 88 mm by depth of 69 mm and weighing only 0.248 kg, the MCB is easily integrated into existing systems without occupying excessive space on DIN rails.</p><p>The S300P series offers flexibility in mounting positions and power supply connections which can be arbitrary—ideal for diverse setups where adaptability is key.</p><p>In terms of durability, the MCB boasts an impressive electrical lifespan with up to 20,000 cycles and can operate efficiently within ambient temperatures ranging from -40 to +70 degrees Celsius.</p><p>Its housing comes in RAL7039 grey color offering aesthetic consistency while its degree of protection ranges between IP20/IP40 depending on installation conditions—ensuring adequate safeguarding against dust ingress or accidental contact when installed correctly.</p><p>For environments subject to pollution levels categorized as IP3 or requiring short circuit capacities up to an astounding level like its secondary specification at25kA; this breaker stands out as particularly resilient choice.</p><p>Overall if you’re seeking dependable mid-range solution equipped curve type C characteristics that balance sensitivity overloads versus tolerance transients—the S300P model will meet your technical requirements seamlessly without compromise quality assurance standards embedded within design specifications throughout production cycle ensuring longevity reliability field operations alike!</p>
