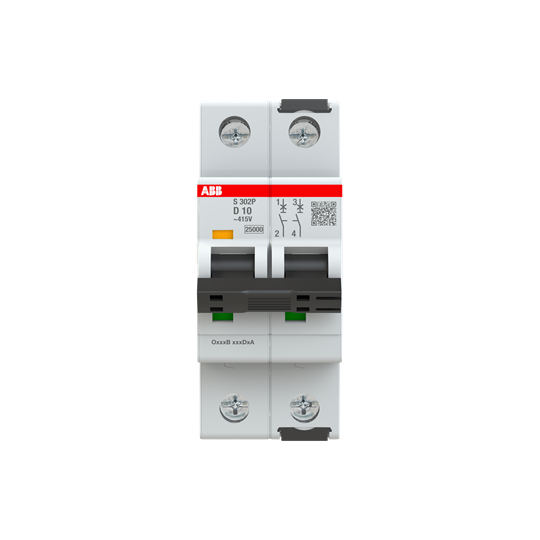

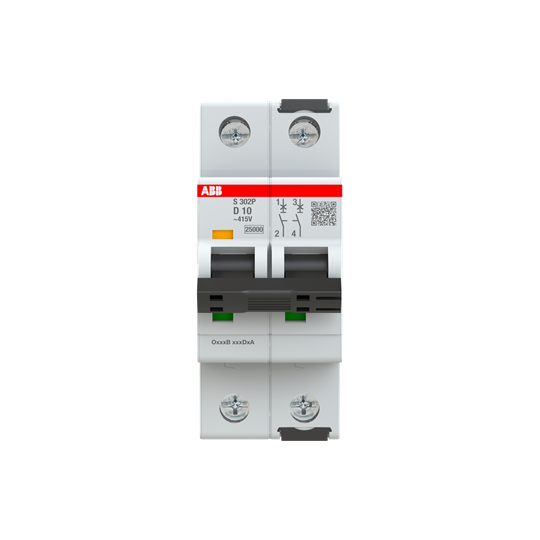

<p>The S300P series MCB is a robust and reliable choice for industrial and commercial applications, designed to meet the demanding requirements of modern electrical systems. With its rated current of 10 A, this miniature circuit breaker ensures efficient protection against overloads and short circuits.</p><p>One of the standout features is its impressive breaking capacity of 15 kA, which guarantees effective interruption of fault currents, safeguarding your equipment and installations. Complementing this is a short circuit capacity rated at 25 kA, providing an additional layer of security in high-demand environments.</p><p>This MCB operates efficiently across a wide voltage range with a rated voltage of 415 VAC and can withstand impulse voltages up to 6 kV. Its insulation voltage stands at 500 V, ensuring safety in various operational scenarios.</p><p>Designed for versatility, the S300P can be mounted on any DIN rail position without compromising performance. The screw clamp terminal type supports secure connections with a tightening torque of 2.8 N-m, accommodating wire stripping lengths up to 14 mm.</p><p>Compact yet sturdy, it measures 35 mm in width, 88 mm in height, and has a depth of 69 mm—ideal for space-constrained panels while maintaining accessibility during installation or maintenance. Weighing just 0.248 kg, it’s lightweight enough for easy handling but built tough to withstand rigorous use.</p><p>The degree of protection ranges from IP20/IP40 depending on installation conditions; thus offering flexibility based on environmental factors such as dust or water exposure levels. It also adheres to stringent standards including CSA 22.2 No.235 IEC/EN60898-1 IEC/EN60947-2 UL1077 ensuring compliance with international quality benchmarks.</p><p>Electrical durability extends up to an impressive lifespan withstanding over twenty thousand cycles making it suitable for frequent switching operations common within industrial settings operating at frequencies between50/60 Hz across ambient temperatures ranging from -40&#176;Cto70&#176;C</p><p>Its housing comes in RAL7039 grey—a neutral color that blends seamlessly into most control panels while maintaining aesthetic coherence throughout your electrical setups</p><p>In terms of pollution resistance this device achievesIP3 rating further attesting its resilience under harsh conditions Curve Type D characteristic caters specifically towards applications involving high inductive loads thereby minimizing nuisance tripping incidents</p><p>Finally dielectric test voltage capability reaches2kV reinforcing overall safety margins when dealing directly connected power supplies regardless orientation thanks arbitrary connection design feature Manufacturer Part Number: S300P</p>
