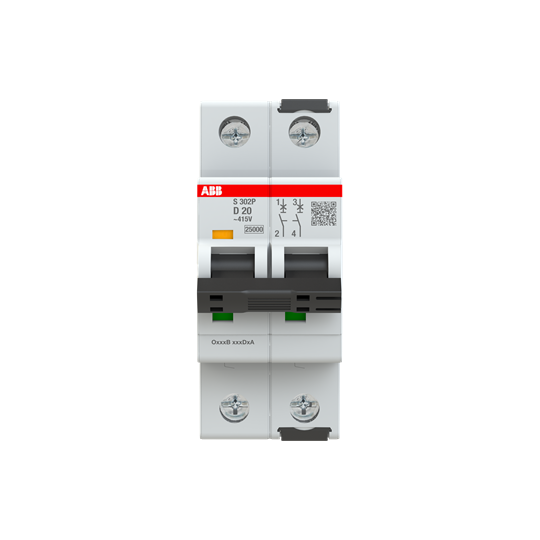

<p>The S300P series Miniature Circuit Breaker (MCB) is a robust and reliable solution for industrial and commercial applications, designed to meet the demands of modern electrical systems. With a rated current of 20 A, this MCB ensures optimal performance and safety in various environments.</p><p>Engineered with precision, it features a rated impulse withstand voltage of 6 kV and an insulation voltage of 500 V, making it suitable for installations requiring high durability against electrical transients. The device operates efficiently at a rated voltage of 415 VAC with minimal power loss at just 4.6 W.</p><p>This MCB boasts a dual-pole configuration, providing enhanced protection with its impressive breaking capacity of 15 kA. It is built to withstand short circuits up to 25 kA, ensuring resilience in demanding conditions. The degree of protection offered is IP20/IP40, safeguarding against dust and accidental contact.</p><p>Installation is straightforward thanks to the screw clamp terminal type that supports secure connections with a tightening torque of 2.8 N-m. Its compact dimensions—35 mm width, 88 mm height, and 69 mm depth—allow for efficient use of space on DIN rails while maintaining accessibility.</p><p>Certified by CSA 22.2 No. 235, IEC/EN 60898-1, IEC/EN60947-2, and UL1077 standards and approvals ensure compliance with international safety regulations. Weighing in at only 0.248 kg makes handling easy during installation or maintenance tasks.</p><p>The S300P series MCB operates seamlessly across standard frequencies (50/60 Hz) and offers exceptional electrical durability with up to 20000 cycles before replacement may be necessary—a testament to its longevity under regular use conditions.</p><p>Designed for versatility in harsh environments ranging from -40&#176;C up to +70&#176;C ambient temperatures; this unit maintains functionality without compromise due largely imparted by its dielectric test voltage rating set at two kilovolts alongside pollution degree classification IP3 which further enhances operational reliability within polluted atmospheres when needed most!</p><p>Curve Type D provides tailored response characteristics idealized specifically towards inductive loads such as motors where initial surge currents are commonplace thereby preventing nuisance tripping scenarios often encountered otherwise if lesser curve types were employed instead herewithin contextually speaking now regarding mounting options available: any position possible plus arbitrary power supply connection orientations afford end-users maximum flexibility during setup phases accordingly too!</p><p>Lastly but not leastly housed elegantly inside RAL7039 grey-colored casing adds aesthetic appeal whilst still being functional simultaneously so you can trust your investment will look good anywhere installed whether visible prominently outwardly facing publically viewable areas alike perhaps even more discreetly hidden away behind panels elsewhere depending upon situational requirements present currently then yet again always remember Manufacturer Part Number: [Not Provided].</p>
