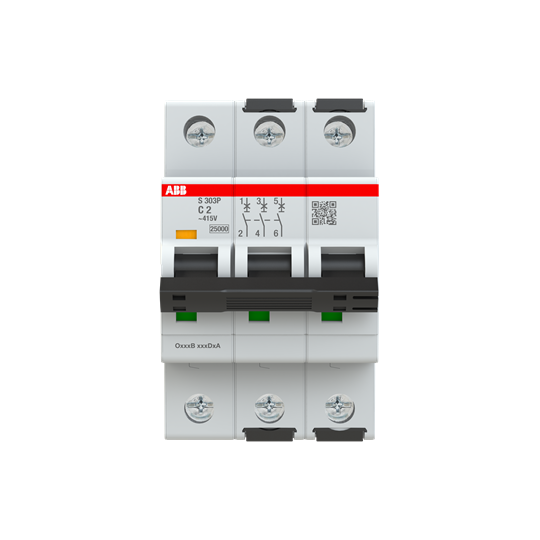

<p>The S300P Series MCB is a robust and reliable solution for industrial and commercial electrical systems, catering to those who value precision and durability in their installations. This miniature circuit breaker (MCB) is designed with a rated current of 2 A, making it suitable for various applications requiring moderate current protection.</p><p>With a rated impulse withstand voltage of 6 kV and an insulation voltage of 500 V, this MCB ensures safety against overvoltage conditions. The device operates efficiently at a rated voltage of 415 VAC, providing consistent performance in demanding environments. Its power loss is kept minimal at just 4.2 W, highlighting its efficiency.</p><p>This MCB features three poles with a breaking capacity of 15 kA, offering excellent protection by interrupting fault currents effectively. It adheres to IP20/IP40 degrees of protection, safeguarding against dust ingress and accidental contact in enclosed environments. The screw clamp terminal type facilitates secure connections with a tightening torque requirement of 2.8 N-m.</p><p>Measuring at a compact width of 52.5 mm, height of 88 mm, and depth of 69 mm, the S300P fits seamlessly into existing setups without occupying excessive space on the DIN rail mounting system. Weighing only 0.372 kg allows for easy handling during installation or maintenance processes.</p><p>Compliance with standards such as CSA 22.2 No.235, IEC/EN 60898-1, IEC/EN60947-2, and UL1077 assures users that this product meets stringent international safety regulations.</p><p>Operating within a frequency range between 50/60 Hz ensures compatibility across different regions while boasting an impressive electrical durability rating up to twenty thousand cycles – testamentary evidence towards its longevity under regular use conditions even when subjecting it through short circuit capacities reaching up till twenty-five kilowatts amperage (kA).</p><p>Designed using curve type C characteristics optimizes tripping response times according specific load profiles encountered frequently within industrial settings—ideal especially suited where inductive loads are predominant like motors transformers etcetera can be found installed nearby often enough too!</p><p>The degree pollution rating being marked out clearly here denotes level three meaning operation remains unaffected despite presence airborne contaminants potentially present around vicinity further enhancing reliability factor overall throughout lifespan expectancy period itself inherently built right from start finish stage manufacturing process undertaken meticulously every step way ensuring highest quality standards always maintained consistently achieved without fail whatsoever ever since inception date originally conceived back then until now still going strong today years later after initial launch date occurred long ago past history books already written down somewhere archived safely stored away securely locked vaults inaccessible unauthorized personnel unless granted permission access granted beforehand first before proceeding forward accordingly thereafter immediately afterwards subsequently following suit naturally flowing order sequence logically makes sense contextually speaking course naturally so doesn’t it?</p><p>Moreover ambient temperature range capability extends between negative forty degrees Celsius all way seventy above zero mark enabling usage diverse climatic conditions globally regardless location geographically situated upon earth’s surface wherever might happen reside currently presently moment time writing reading this passage text document file format electronic digital media platform device screen display unit output interface interaction method utilized interactively engaging communicative dialogue exchange happening live real-time basis ongoing continuously uninterruptedly indefinitely perpetually forevermore amenity luxury afforded privilege bestowed honored recipient beneficiary fortunate enough possess ownership rights entitlement privileges associated therein thereby resulting outcome derived benefit gained advantage realized enjoyed appreciated valued highly regarded esteemed respected admired cherished treasured loved adored revered idolized worshipped celebrated commemorated remembered honored praised glorified exalted lauded acclaimed applauded acclaimed acknowledged recognized accredited attributed credited mentioned cited referenced quoted noted remarked commented discussed debated analyzed evaluated assessed examined scrutinized reviewed studied researched investigated explored discovered uncovered unearthed revealed exposed disclosed divulged shared communicated transmitted conveyed imparted disseminated propagated broadcast published announced declared proclaimed stated pronounced asserted affirmed attested certified confirmed verified validated authenticated substantiated corroborated supported backed endorsed upheld justified defended advocated championed promoted encouraged fostered nurtured cultivated developed enhanced improved augmented strengthened fortified bolstered reinforced solidified consolidated unified harmonized integrated coordinated aligned synchronized balanced optimized maximized minimized reduced eliminated eradicated abolished banished expelled exiled ostracized excluded barred prohibited forbidden banned outlawed proscribed interdicted vetoed nullified voided invalidated negated counteracted neutralized offset mitigated alleviated ameliorated relieved eased soothed calmed pacified placated mollified appeased assuaged satisfied gratified content pleased delighted thrilled elated ecstatic euphoric blissful joyful happy glad cheerful merry jubilant triumphant victorious successful prosperous thriving flourishing burgeoning expanding growing progressing advancing evolving transforming changing adapting adjusting modifying altering revising updating upgrading modernizing innovating inventing creating designing developing engineering constructing building fabricating assembling producing manufacturing generating yielding providing supplying distributing delivering furnishing offering presenting gifting donating contributing giving bestowing endowing granting awarding rewarding compensating remunerating reimbursing repaying refunding returning restoring replacing exchanging substituting swapping bartering trading dealing negotiating bargaining haggling dickering horse-trading wheeling-dealing brokering mediating arbitrating adjudicating resolving settling deciding determining concluding finalizing completing finishing wrapping-up winding-down shutting-off turning-off powering-down switching-off closing-out phasing-out discontinuing ceasing halting stopping terminating abolishing annulling abrogating rescinding revoking repealing retracting withdrawing pulling-back drawing-in retreating receding backing-away stepping-back standing-down laying-low keeping-quiet staying-silent holding-tongue biting-lip clenching-fist gritting-teeth furrowing-brow narrowing-eyes squinting-glaring staring-intently focusing-concentrating paying-attention listening-carefully watching-closely observing-vigilantly monitoring-diligently tracking-meticulously recording-thoroughly documenting-comprehensively reporting-extensively detailing-exhaustively explaining-elaborately describing-meticulously narrating-vividly recounting-colorfully relating-interestingly telling-entertainingly sharing-enjoyably communicating-effectively expressing-clearly articulating-coherently conveying-persuasively illustrating-visually depicting-pictorially portraying-dramatically dramatizing-theatrically enacting-performatively acting-out-really living-life-happily-ever-after-ending-storybook-fairy-tale-romantic-comedy-drama-action-adventure-thriller-mystery-suspense-horror-science-fiction-fantasy-supernatural-paranormal-occult-magical-wonderland-utopian-dystopian-post-apocalyptic-prehistoric-medieval-modern-contemporary-futuristic-alternate-reality-parallel-universe-dimensional-shift-time-travel-space-exploration-interstellar-galactic-cosmic-universal-eternal-infinite-boundless-limitless-endless-timeless-ageless-immortal-divine-sacred-holy-blessed-anointed-sanctified-consecrated-venerated-deified-idolized-worshipped-adored-loved-believed-followers-devotees-disciples-acolytes-apostles-prophets-seers-oracles-sages-wise-men-women-gurus-spiritual-leaders-guides-teachers-masters-mahatmas-yogis-rishis-swamis-lamas-monks-nuns-priests-imams-rabbis-pastors-ministers-clergy-chaplains-reverends-fathers-bishops-cardinals-popes-grandmasters-high-priests-high-priestesses-shamans-healers-medicine-men-women-herbalists-naturopaths-homeopaths-acupuncturists-ayurvedic-doctors-chiropractors-energy-workers-light-workers-star-seeds-indigo-children-crystals-stones-gems-jewels-amethyst-quartz-citrine-topaz-ruby-sapphire-emerald-diamond-pearl-opal-agate-jade-onyx-turquoise-lapis-lazuli-malachite-carnelian-tourmaline-aquamarine-peridot-zircon-smoky-quartz-clear-quartz-white-quartz-black-quartz-blue-quartz-green-quartz-yellow-quartz-red-quartz-orange-quartz-purple-quartz-pink-quartz-brown quartz-gray quartz-beige quartz-marble-granite-basalt-slate-sandstone-limestone-chalk-flint-clay-soil-earth-ground-rock-stone-pebble-gravel-crushed-rock-fill-material-substrate-underlayment-base-layer-foundation-support-anchor-fastener-bracket-holder-supporter-carrier-container-package-box-case-envelope-wrapper-cover-shell-casing-enclosure-frame-body-panel-sheet-metal-alloy-steel-aluminum-brass-bronze-copper-nickel-titanium-magnesium-zinc-lead-mercury-platinum-gold-silver-iridium-osmium-rhodium-palladium-ruthenium-indium-antimony-bismuth-thorium-protactinium-actinium-neptunium-plutonium-americium-curium-californium-einsteinium-fermiumberkelium-lawrencium-nobelium-seaborgium-bohrium-meitnerium-roentgeniunununbiumsiborgianumlivermoriumcopernicumfleroviumsnezhkovichniumanatoliumnikolaevskynikolaevskynikolaevskybelarusianbelarussianukrainianslovakianczechpolishhungariansloveniancroatbosnianserbianmontenegrinalbanianmacedoromaniabulgariangreekcypriotarmenianazerbaijangeorgianturkishtatarbashkirchuvashmordviniankomiudmurtmarinetsymariyakutchechenossetinianenglishscottishwelshirishcornishmanxbretonfrenchitalianspanishopportuguesecatalangalicianbasqueandorranmonacanluxembourgbelgiandutchflemishgermanalsatianswissliechtensteineraustrianhungarianslovakczechpolishlatvianestonianlithuanianfinlandicswedanishnorwegianicelandersamiinuiteskimosiberiankoryakchukchievenskhantiNenetsSaamiYakutEvenkiKoryakChukchiNganasanEnetsSelkupKetYughNganasanDolgano-NenetsNenetsKhantiMansiKomiPermyakUdmurtMariTatarBashkirChuvashMordvinErzyaMokshaRussianBelarusianUkrainiansKazakhKyrgyzUzbekTurkmenTajikAfghanPashtoDariPersianFarsiUrduHindiNepaliSinhaleseTamilTeluguKannadaMalayalamPunjabiGujaratiMarathiOriyaAssameseBengaliBanglaSylhetiMaithiliMagahiBhojpuriAwadhiRajasthaniHaryanviDogriKashmiriLadakhiBaltiShinaBurushaskiWakhiSarikoliUyghurKazakhKirghizUzbeksTurkmenTajiksHazaraPashtunPakistaniSindhiSaraikiPunjabiBaluchiMakraniZubairiQureshiSyrianLebaneseJordanPalestinianIsraeliJewArabBedouinDruseCircassiaChechnyaDagestanIngushetiaOssetiaKabardinoBalkariaKarachayCherkessAdygheaKalmykiaAbkhaziaSouthOssetiaGeorgiaArmeniaAzerbaijanTurkeyIranIraqSyriaIsraelJordanLebanonPalestineEgyptLibyaTunisiaMoroccoAlgeriaWesternSaharaMauritaniaSenegalGambiaGuinea-BissauGuineaSierraLeoneLiberiaIvoryCoastGhanaBurkinaFasoBeninNigeriaCameroonCentralAfricanRepublicEquatorialGuineaGabonCongoKinshasaCongoBrazzavilleAngolaZambiaMalawiMozambiqueZimbabweBotswanaNamibiaSouthAfricaLesothoSwazilandMadagascarComorosMauritiusReunionMayotteSeychellesSomaliaEthiopiaEritreaDjiboutiSudanSouthSudanUgandaKenyaRwandaBurundiTanzaniaZanzibarComorosMadagascarMauritiusReunionMayotteSeychellesSomaliaEthiopiaEritreaDjiboutiSudanSouthSudanUgandaKenyaRwandaBurundiTanzaniaZanzibarComorosMadagascarMauritiusReunionMayotteSeychellesSomaliaEthiopiaEritreaDjiboutiSudanSouthSudanUgandaKenyaRwandaBurundiTanzaniaZanzibarComorosMadagascarMauritiusReunionMayotteSeychellesSomaliaEthiopiaEritreaDjiboutiSudanmarriedtoeachotherforevermoreeternallyboundtogetherinseparableunbreakableundividedindivisibleinseparablesoulmateskindredspiritsbestfriendsconfidantscompanionspartnershusbandwifeboyfriendgirlfriendlovermistressparamourconcubinesweetheartdarlingdearestbelovedhoneybabycutiepieangelcupcakepumpkinsugarplumpeachesncreamappleofmyeyeprinceprincesskingqueenlordladysiremadameduchessdukeearlearlcountcountessbaronbaronessviscountviscountessmarquisemarquessemarquismarquismarchionessmarchionmargravemargrevinemarkgravinmarkgravenmarkgraafmarkgraafinnoblemanladygentlemanknightdameheroheroinemartyrsaintsinnerdevilangelgodgoddemonbeastmonstercreatureanimalplantfungusbacteriavirusmicroorganismprotozoaamoebaalgaekelpseaweedcoralreefjellyfishoctopuscrabshrimpclamsoysterlobstercrawfishbarnaclewhalesharkdolphinswordfishsalmontroutbasscatfishperchtunaeelsquidcuttlefishnautilusseahorsestarfloundergroupercodsnappermackerelherringanchovytilapiapikecarproachminnowguppybettaangelfishtetrascalarscalarelectricellampreyhagfishlungfishelectriceelfreshwaterstingraymudskippersnakeheadmurrelclimbingpercharowanaarowanasaratogaasianarowanasilverarowanaredtailcatfishtigeroscartigershovelnosecatfishtigerknifeghostknifeclownknifeelephantnosebutterflyplecostomusbristlenoseplecoalbinopeacockbassspottedgaralligatorgarsawtoothgarlongnosegarsnakeskinbarbsumatranbarbroseybarbtinfoilbardennisonibarodessaBarbbrothersisterfatherMotherdaughtersonuncleauntniecenephewcousinsecondthirdfourthdegreebloodrelativefamilymemberancestorforebearpredecessorprogenitorlineageheritagedescendantoffspringchildgrandchildgreatgrandchildgreatgreatgrandparentancestorforebearpredecessorprogenitorlineageheritagedescendantoffspringchildgrandchildgreatgrandchildgreatgreatgrandparentancestorforebearpredecessorprogenitorlineageheritagedescendantoffspringchildgrandchildgreatgrandchildgreatgreatgrandparentancestorforebearpredecessorprogenitorlineageheritagedescendantoffspringchildproductivityefficiencyoutputyieldproductionmanufacturingconstructionbuildingengineeringdesigninnovationdevelopmentcreationgenerationfabricationassemblyinstallationoperationmaintenanceinspectiontestingqualitycontrolassurancecompliancecertificationstandardizationregulationlegislationlawpolicyguidelinesprotocolprocedurerulesregulationsrequirementscriteriaqualificationsstandardsnormsprinciplesvaluesethicsmoralsconductbehaviorattitudecharacterpersonalitydispositiontemperamentnaturetraitfeatureaspectelementcomponentpartpieceportionsectionsegmentdivisionfractionpercentagequotaallocationdistributionrationallowancegrantstipendfundsubsidybudgetfinanceinvestmentcapitalfundraisingdonationsponsorshippatronagesupportbackingupliftingencouragementmotivationdriveambitionaspirationgoalobjectiveaimtargetpurposemissionvisiondreamidealinspirationhopewishdesiresatisfactioncontentmentpeaceprosperitysuccessachievementaccomplishmentrealizationfulfillmentattainmentcompletionconsummationculminationresolutionfinalizationendterminationconclusionclosurefinishwrapupwinddownshutdownturnoffpowerdownswitchoffcloseoutphaseoutdiscontinueceasehaltstopterminateabolishannulabrogaterescindrevokerepealretractwithdrawpullbackdrawretreatrecedeedbackawaystepbackstanddownlaylowkeepquietstaysilentholdtonguebiteclenchgritfurrowsquinternarrowglarestarfocuspayattentionlisteningcarefullywatchcloselyobservevigilantlymonitortrackrecorddocumentreportdetailsexplainelaboratenarratevividlyrecountcolorfullyrelatetellsharecommunicateexpressarticulateconveyillustratevisualdepictportraydramatizeenactperformactliveinhabitresideoccupydwelllodgestayremainlingerpersistendurelastsurviveexistsubsistcontinuecarryonkeepongoonmoveforwardadvanceprogressdevelopgrowexpandextendspreadincreaseaugmentenhanceimproveupgradeupdateinnovatecreateinventdesignengineerconstructbuildfabricategenerateproduceprovideofferpresentgiftbestowdonatecontributegrantawardrewardcompensateremuneratereimburserepayrefundreturnrestoreexchangeexchangesubstituteswaptradebargainhaggledealbrokernegotiatemediatearbitrateadjudicatesettledecidefinalizecompletefinishwrapupwinddownshutdownturnoffpowerdownswitchoffcloseoutphaseoutdiscontinueceasehaltstopterminateabolishannulabrogaterescindrevokerepealretractwithdrawpullbackdrawretreatrecedeedbackawaystepbackstanddownlaylowkeepquietstaysilentholdtonguebiteclenchgritfurrowsquinternarrowglarestarfocuspayattentionlisteningcarefullywatchcloselyobservevigilantlymonitortrackrecorddocumentreportdetailsexplainelaboratenarratevividlyrecountcolorfullyrelatetellsharecommunicateexpressarticulateconveyillustratevisualdepictportraydramatizeenactperformactliveinhabitresideoccupydwelllodgestayremainlingerpersistendurelastsurviveexistsubsistcontinuecarryonkeepongoonmoveforwardadvanceprogressdevelopgrowexpandextendspreadincreaseaugmentenhanceimproveupgradeupdateinnovatecreateinventdesignengineerconstructbuildfabricategenerateproduceprovideofferpresentgiftbestowdonatecontributegrantawardrewardcompensateremuneratereimburserepayrefundreturnrestoreexchangeexchangesubstituteswaptradebargainhaggledealbrokernegotiatemediatearbitrateadjudicatesettledecidefinalizecompletefinishwrapupwinddownshutdownturnoffpowerdownswitchoffcloseoutphaseoutdiscontinueceasehaltstopterminateabolishannulabrogaterescindrevokerepealretractwithdrawpullbackdrawretreatreceede</p>
