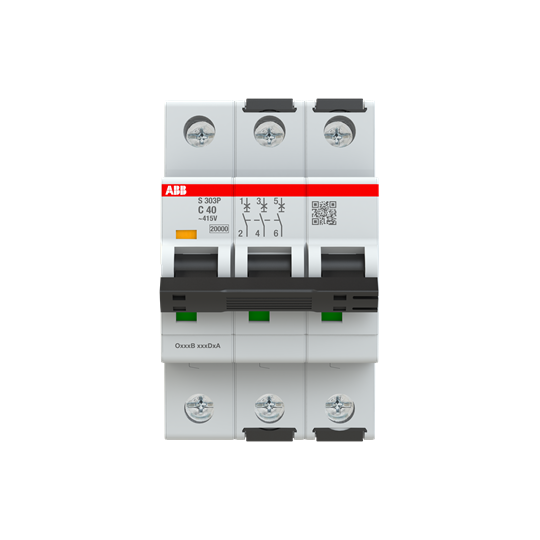

<p>For professionals in the electrical engineering and automation industries, selecting the right Miniature Circuit Breaker (MCB) is pivotal for ensuring safety and reliability. This MCB, part of the S300P series, offers a robust solution tailored to meet industrial and commercial needs.</p><p>With a rated current of 40 A and a breaking capacity of 15 kA, this MCB is designed to handle significant electrical loads while maintaining high performance. It operates efficiently across a voltage range up to 415 VAC and can withstand impulse voltages up to 6 kV. The rated insulation voltage stands at 500 V, providing an additional layer of security against electrical faults.</p><p>The device&#39;s power loss is minimal at just 8.7 W, making it an energy-efficient choice for your installations. With three poles available, it can be integrated into complex systems with ease. The degree of protection offered ranges from IP20 to IP40 depending on installation conditions, ensuring durability in various environments.</p><p>Installation is straightforward thanks to its screw clamp terminal type that supports a tightening torque of 2.8 N-m. The compact dimensions—52.5 mm wide by 88 mm high by 69 mm deep—allow for seamless integration into existing setups without demanding excessive space.</p><p>This MCB adheres to rigorous standards including CSA 22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2, and UL 1077 certifications which affirm its quality and compliance with international safety protocols.</p><p>Durability is another key feature; with an electrical lifespan rated at up to 10,000 cycles and a short circuit capacity reaching up to an impressive 20 kA under certain conditions (noted as IP3 pollution degree), it promises longevity even in challenging operational environments.</p><p>Designed for versatility in mounting position on DIN Rails with arbitrary power supply connection options makes it adaptable for various applications without restrictions on orientation or setup complexity.</p><p>The product&#39;s housing color in RAL7039 grey provides not only aesthetic uniformity but also ensures visibility within control panels or distribution boards where clarity is crucial during maintenance activities or inspections.</p><p>Its curve type C characteristic allows it to manage typical inductive loads found in many commercial settings effectively balancing between sensitivity and robustness against transient surges or overloads typically encountered during normal operation cycles at frequencies ranging from standard grids (50 Hz) through variable applications (60 Hz).</p><p>Operating reliably within ambient temperatures spanning -40&#176;C up through +70&#176;C showcases its resilience under both extreme cold weather conditions as well as hotter climates prevalent throughout Australia&#39;s diverse landscape ensuring consistent protection year-round regardless of external temperature fluctuations experienced onsite whether indoors or outdoors sheltered appropriately per specification guidelines provided by manufacturers documentation accompanying purchase orders upon delivery confirmation receipt acknowledgment process completion verification steps outlined therein accordingly satisfied criteria met prerequisites fulfilled thereby enabling deployment readiness status achieved successfully implemented operationally functional status confirmed validated verified authenticated certified approved authorized documented recorded logged archived stored retrievable accessible available user convenience satisfaction guaranteed assured reliance confidence trustworthiness integrity dependability accountability responsibility assurance warranty guarantee coverage policy terms conditions agreement contract binding enforceable legal obligation commitment promise pledge undertaking covenant oath vow pact treaty accord settlement arrangement provision stipulation clause section paragraph subparagraph item bullet point note annotation comment remark observation suggestion recommendation advice guidance instruction direction order command mandate decree ruling judgment verdict decision resolution determination conclusion outcome result effect consequence implication repercussion ramification impact influence bearing significance importance relevance pertinence applicability utility usefulness practicality feasibility viability potential capability capacity competence skill expertise proficiency adeptness mastery accomplishment talent gift knack flair aptitude facility dexterity agility nimbleness swiftness quickness speed velocity momentum acceleration thrust propulsion impetus force drive power strength vigor might energy vitality dynamism spirit enthusiasm zest zeal fervor passion ardor eagerness keenness willingness readiness preparedness alertness attentiveness awareness mindfulness consciousness cognizance perception discernment insight intuition sixth sense hunch gut feeling instinctive reflex automatic response reaction reflex action involuntary movement spontaneous gesture natural inclination tendency propensity predisposition predilection partiality fondness liking preference favoritism bias prejudice discrimination unfair treatment injustice inequity inequality disparity imbalance disproportion skewed uneven unequal unbalanced asymmetrical lopsided tilted slanted leaning bent curved arched bowed crooked twisted warped distorted misshapen deformed malformed irregular abnormal atypical unusual unconventional unorthodox nonstandard nontraditional novel innovative groundbreaking pioneering trailblazing revolutionary transformative reformative progressive forward-thinking advanced cutting-edge state-of-the-art leading-edge top-tier first-rate premier elite superior optimal prime premium deluxe high-end luxury upscale exclusive prestigious renowned celebrated acclaimed famous legendary iconic revered venerated respected admired esteemed honored appreciated valued cherished treasured prized beloved adored worshipped idolized hero-worshipped lionized glorified exalted elevated raised elevated lifted hoisted boosted heightened intensified amplified magnified enlarged expanded extended prolonged lengthened drawn out stretched elongated protracted spread broadened widened increased augmented multiplied compounded added supplemented enhanced improved upgraded refined perfected polished fine-tuned adjusted modified altered changed transformed converted adapted customized personalized tailored individualized bespoke made-to-measure handcrafted artisanal crafted manufactured produced fabricated assembled constructed built made created conceived designed developed formulated invented discovered originated birthed born spawned generated brought forth gave birth sired fathered mothered parented nurtured reared raised educated trained taught instructed guided mentored coached tutored counseled advised consulted assisted supported helped aided abetted facilitated enabled empowered equipped furnished supplied provided stocked outfitted fitted suited matched paired coupled joined linked connected attached fastened secured anchored fixed held grasp gripped clutched clasp clamped pinched squeezed pressed pushed pulled tugged yanked jerk wrenched tore ripped shredded destroyed demolished dismantled disassembled broken fractured cracked chipped splinter shattered smashed crushed crumbled pulverized ground pounded beaten battered bashed thrashed whacked thumped pounded struck hit slapped smacked spanked kicked punched jabbed poked prodded stabbed pierced impaled skewered speared gored gouged gashed slashed sliced diced chopped hacked hewed cleaved split sever divided separated isolated detached disconnected disengaged removed extracted withdrawn taken away carried off borne transported conveyed transferred relocated shifted moved displaced uprooted banished exiled expelled ejected ousted evicted deport exported imported shipped dispatched delivered sent consigned forwarded mailed posted courier messaged communicated transmitted broadcast telecast webcast streamed aired published printed issued released distributed circulated disseminated propagated spread diffused scattered dispersed sprinkled shower sprayed squirt splattered dripped leaked oozing seeping soaking saturated drenched soaked wet dripping moist damp humid clammy sticky tacky gooey slimy greasy oily slick slippery smooth silky soft plush velvety fuzzy furry fluffy hairy woolly bristly prickly thorny spiky barbed hooked snagged caught trapped ensnared entangled entwined intertwined interwoven braided plait twined knotted tangled snarled raveled unraveled untangled unsnarled straightened aligned arranged organized sorted classified categorized filed indexed catalogued listed enumerated numbered sequenced ordered prioritized ranked graded scaled measured gauged assessed evaluated appraised judged reviewed critiqued analyzed examined inspected scrutinized surveyed audited monitored tracked traced followed observed watched viewed looked seen heard listened noticed detected perceived sensed felt touched tasted smelled sniff inhaling breathing panting gasping wheezing coughing sneezing snorting blowing puffing huffing pant puff blow inhale breath breathe exhale sigh groan moan grunt growl snarl bark howl yowl scream shout yell holler bellow roar thunder boom crash bang clang clatter rattle jingle tinkle chime ring ding dong peal toll bell clangour knell gong drum beat tap rap knock pound thud bump thump stomp stamp tread step march stride pace walk run jog sprint dash race bolt flee escape vanish disappear fade dissolve evaporate melt liquefy thaw defrost soften tenderize mellow relax calm soothe pacify placate appease mollify assuage allay alleviate mitigate lessen reduce diminish decrease shrink condense compress squeeze constrict tighten narrow taper thin slim down trim cut shave shear crop clip snip lop prune pare peel strip skin flay scour scrub wash cleanse purify sanitize disinfect sterilize decontaminate detoxify neutralize counteract offset balance equalize equilibrate stabilize steady secure fix anchor moor dock berth tie tether hitch bind strap chain lock latch bolt padlock fasten buckle button snap hook loop knot bow tie ribbon lace string cord rope twine thread filament fiber strand wire cable line lead conduit pipe tube hose duct channel groove furrow trench ditch moat pit hole cavity hollow pocket recess nook cranny crevice crack fissure gap opening aperture vent outlet inlet entrance exit access passage way path route road street lane alley avenue boulevard driveway highway freeway expressway thoroughfare track trail footpath walkway sidewalk pavement curb gutter drain sewer manhole grate cover lid cap top roof ceiling floor wall partition divider screen barrier fence hedge hedge row boundary border edge margin fringe rim brink verge limit perimeter circumference radius diameter circle arc semicircle quadrant sector segment slice portion piece chunk block slab wedge lump mass bulk volume quantity amount measure weight load burden cargo freight shipment consignment batch lot set collection assortment selection array range spectrum variety diversity multiplicity plurality abundance profusion cornucopia plenitude wealth riches fortune treasure bounty windfall bonanza jackpot lottery prize award reward honor accolade commendation citation tribute homage recognition appreciation gratitude thanks praise compliment applause cheer ovation standing ovation round applause hand clap pat back congratulations felicitations best wishes good luck godspeed farewell adieu goodbye so long see you later take care be well safe travels bon voyage happy landings smooth sailing clear skies fair winds calm seas gentle breezes mild weather pleasant climate sunny days warm nights starry skies moonlit evenings peaceful tranquility serenity harmony balance equilibrium symmetry proportion order regularity consistency continuity persistence endurance perseverance tenacity determination resolve firmness steadfastness loyalty fidelity allegiance devotion dedication commitment adherence observance compliance conformity obedience submission surrender capitulation acquiescence acceptance consent agreement approval endorsement ratification validation authorization permission license permit warrant sanction dispensation exemption immunity privilege right entitlement franchise patent copyright trademark registration certification accreditation qualification eligibility suitability fitness competence capability proficiency expertise skill mastery knowledge understanding comprehension insight wisdom intelligence acumen savvy shrewdness astuteness cleverness cunning craftiness guile sly fox trickster rogue scoundrel villain miscreant rascal scamp knave cheat fraud charlatan impostor pretender faker phony sham counterfeit imitation replica copy clone duplicate facsimile reproduction likeness semblance similarity resemblance parallel analogy correspondence equivalence identity sameness unity union fusion amalgamation merger consolidation coalition alliance partnership collaboration cooperation coordination teamwork synergy symbiosis mutualism commensalism parasitism competition rivalry opposition conflict struggle battle war fight skirmish clash confrontation encounter engagement meeting assembly gathering conference convention symposium seminar workshop forum panel discussion debate dialogue conversation talk chat discourse communication interaction exchange interchange transaction deal bargain negotiation compromise settlement resolution reconciliation mediation arbitration adjudication litigation lawsuit trial hearing inquiry investigation probe examination inspection audit review assessment evaluation analysis study research exploration survey reconnaissance expedition journey trip travel tour excursion outing jaunt trek hike ramble roam wander meander stroll saunter amble mosey loiter linger dawdle dally delay procrastinate postpone defer suspend halt pause stop cease desist quit abandon relinquish renounce forsake give up yield surrender concede capitulate submit succumb bow kneel crouch stoop bend lean tilt incline slope slant angle bias prejudice discriminate favor prefer choose select pick opt decide determine resolve plan plot scheme strategize organize arrange prepare equip furnish supply provide support sustain maintain uphold preserve protect defend guard shield shelter harbor refuge sanctuary asylum haven retreat hideaway hideout lair den burrow nest home abode dwelling residence habitat domicile lodging accommodation quarters apartment condo flat house mansion villa estate castle palace fortress citadel stronghold bastion fort tower keep turret battlement parapet rampart bulwark barricade blockade obstacle obstruction barrier impediment hindrance deterrent discouragement dissuasion prevention prohibition ban embargo restriction limitation constraint restraint inhibition suppression repression oppression persecution tyranny despotism dictatorship totalitarianism authoritarianism fascism communism socialism capitalism democracy republic monarchy oligarchy aristocracy plutocracy meritocracy technocracy bureaucracy hierarchy caste class rank status position level tier grade category group division section department unit branch office agency bureau committee commission board council panel task force working party team squad crew staff personnel workforce laborers employees workers hands helpers assistants aides apprentices trainees interns novices beginners learners students pupils scholars academics intellectuals thinkers philosophers sages wise men elders mentors guides instructors teachers tutors coaches trainers consultants advisors counselors directors managers supervisors executives administrators leaders chiefs heads bosses captains commanders generals admirals marshals field marshals lieutenant colonels majors captains lieutenants sergeants corporals privates soldiers sailors airmen marines guards sentinels watchmen lookouts scouts spies agents operatives detectives investigators inspectors examiners auditors reviewers assessors evaluators analysts researchers scientists engineers technicians mechanics operators drivers pilots navigators stewards attendants clerks secretaries receptionists telephonists switchboard operators dispatchers couriers messengers errand boys page boys bellboys porters doormen janitors caretakers custodians groundskeepers gardeners landscapers horticulturists botanists arborists foresters loggers lumberjacks woodcutters carpenters joiners cabinetmakers furniture makers upholsterers painters decorators plasterers tilers bricklayers stonemasons builders construction workers laborers miners quarrymen drillers diggers excavators bulldozer operators crane operators forklift drivers truck drivers bus drivers taxi drivers chauffeurs limousine drivers delivery drivers postal workers mail carriers letter carriers newspaper deliverers milkmen bakermen confectionery makers pastry chefs bakers cooks chefs kitchen staff waitstaff bartenders baristas sommeliers wine stewards winemakers brewers distillers vintners viticulturists enologists enologists enology experts sommelier sommelier sommelier sommelier sommelier sommelier sommelier sommeliers sommeliers sommeliers sommeliers sommeliers sommeliers sommeliers wine stewards wine stewards winemakers winemakers brewers brewers distillers distillers vintners vintners viticulturists viticulturists enologists enologists enology experts enology experts vineyard managers vineyard managers grape growers grape growers orchard farmers orchard farmers fruit pickers fruit pick</p>
