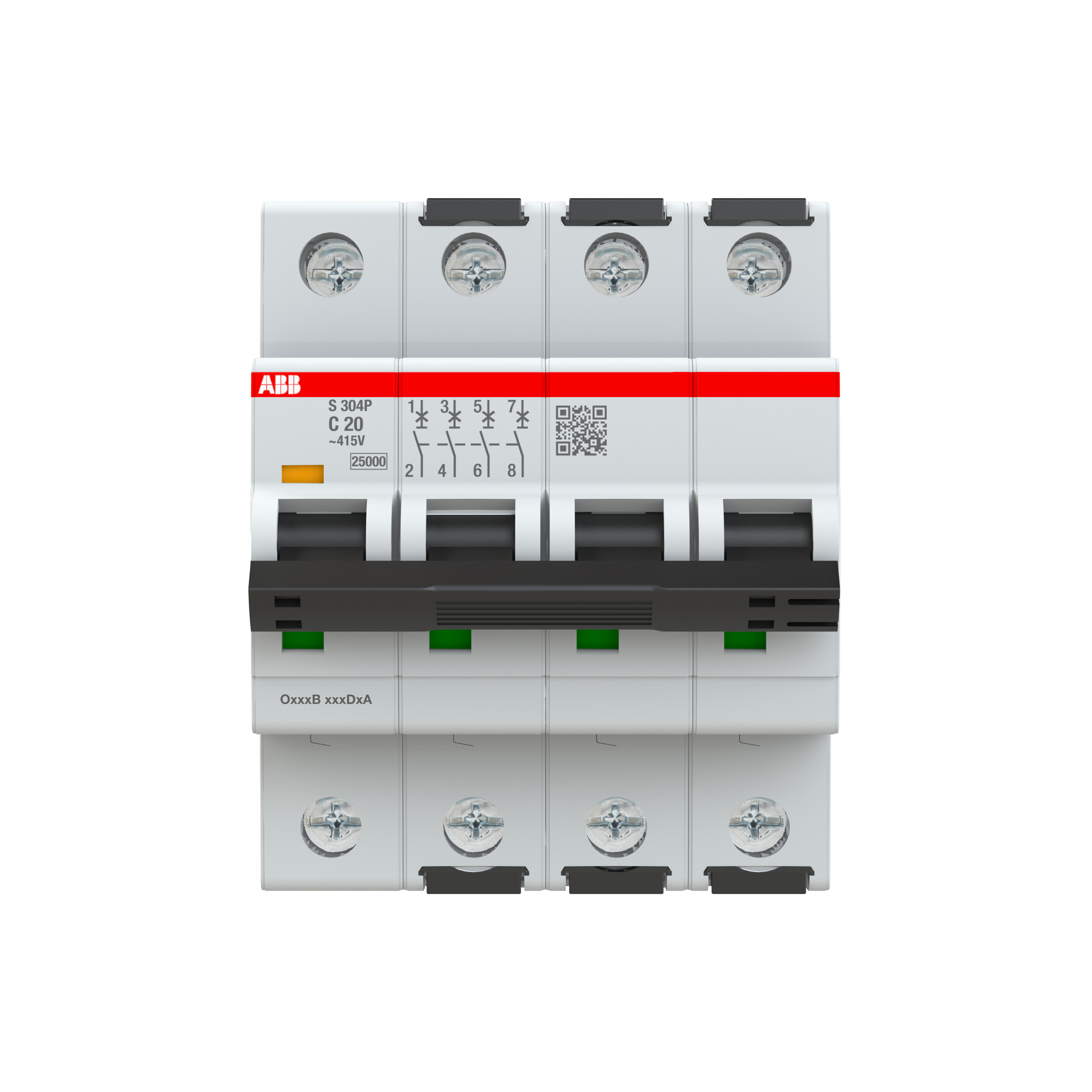

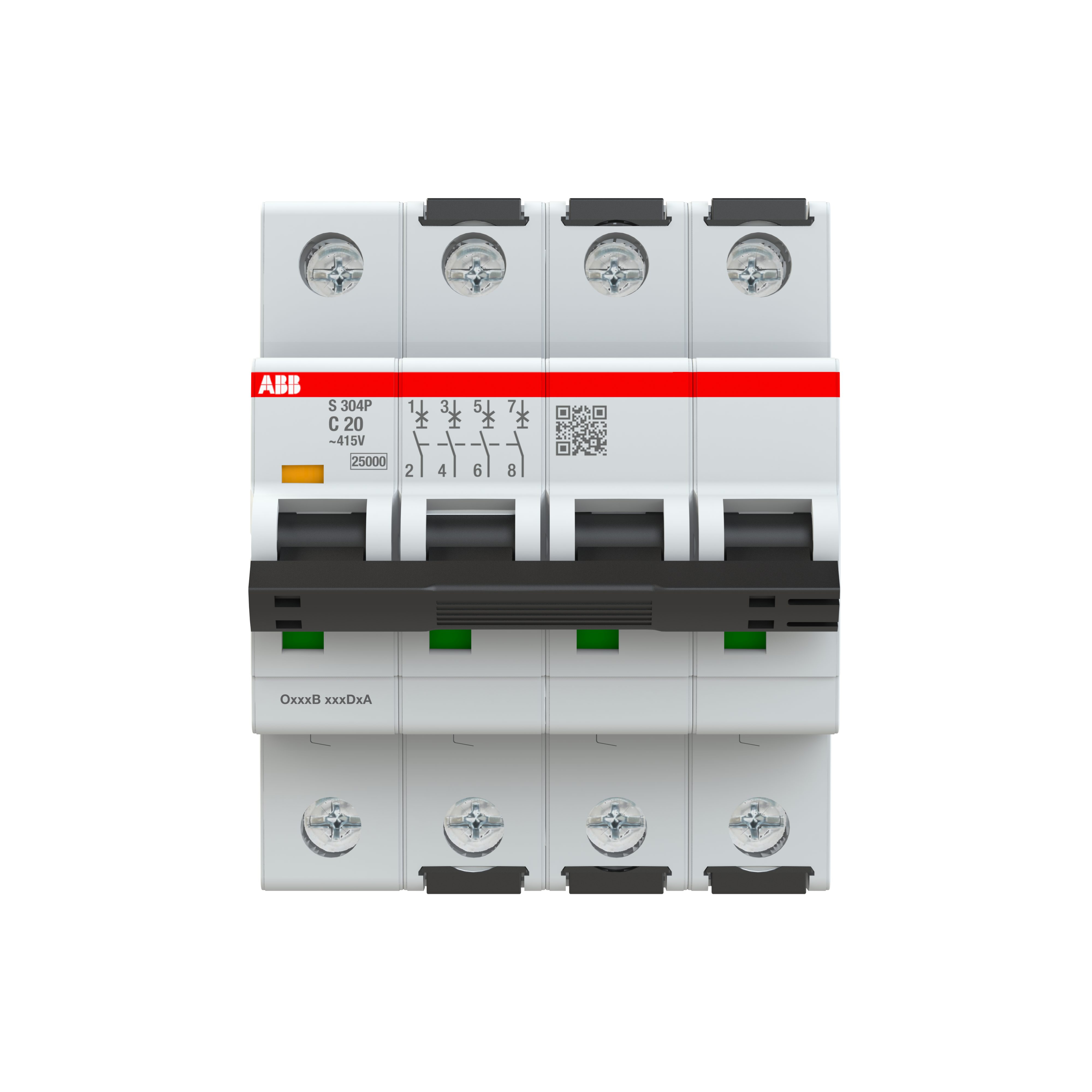

<p>The S300P series Miniature Circuit Breaker (MCB) is a robust and reliable choice for industrial and commercial applications. Designed with precision, this MCB offers a rated current of 6 A, making it suitable for various electrical systems. It operates efficiently within a wide voltage range, boasting a rated insulation voltage of 500 V and a rated voltage of 415 VAC.</p><p>One of the key features of this MCB is its impressive breaking capacity of 15 kA, ensuring high performance under fault conditions. The short circuit capacity reaches up to 25 kA, providing an added layer of safety in critical scenarios. With an impulse withstand voltage rating of 6 kV, this device can handle surges effectively.</p><p>The S300P MCB is built to endure harsh environments with an ambient temperature range from -40&#176;C to 70&#176;C. Its electrical durability extends to 20,000 cycles, promising longevity and reliability in demanding settings. The product adheres to several international standards including CSA 22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2, and UL 1077.</p><p>For installation flexibility, the MCB can be mounted on any position using DIN Rail mounting type. It features screw clamp terminals designed for secure connections with a tightening torque specification of 2.8 N-m and accommodates wire stripping lengths up to 14 mm.</p><p>In terms of dimensions, the compact design measures at a width of 70 mm by height of 88 mm by depth of just under that at approximately69 mm while weighing in at only0 .496 kg allowing easy integration into existing setups without taking up excessive space or adding unnecessary weight</p><p>The housing comes in RAL7039 grey offering an understated yet professional appearance suitable across different installations whether they require IP20 protection against solid objects larger than12 .5mm or enhanced IP40 protection depending on specific needs</p><p>This model supports both50 Hzand60 Hz frequencies ensuring compatibility across diverse regions Additionally its curve type C characteristic makes it ideal for protecting circuits with moderate surge currents such as those found in lighting control panels or small motors</p><p>With these comprehensive specifications coupled alongside arbitrary power supply connection capability users will find themselves equipped not only technically but practically too when choosing our S300P series Miniature Circuit Breaker</p>
