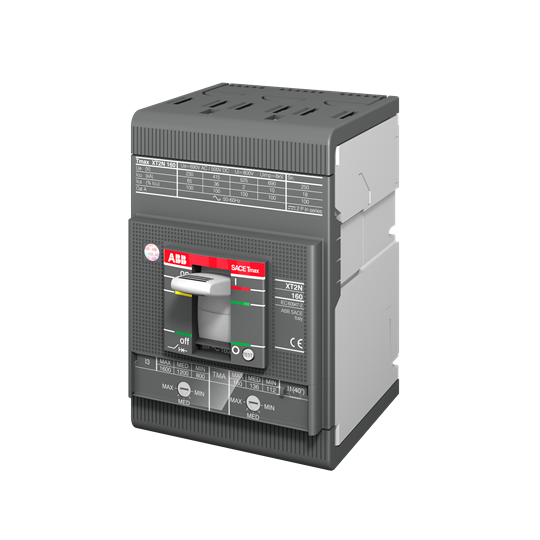

<p>When selecting a reliable MCCB (Molded Case Circuit Breaker) for your industrial or commercial applications, understanding the technical specifications is crucial. This particular MCCB offers a rated current of 5 A, making it suitable for various low to medium power circuits. It boasts an impressive rated impulse withstand voltage of 8 kV and a rated insulation voltage of 1000 V, ensuring robust performance even under high voltage conditions.</p><p>Operating at a rated voltage of up to 690 VAC or 500 VDC, this MCCB provides flexibility across different electrical systems. The thermal-magnetic (TM) release type and the TMD trip unit are designed to offer precise protection against overloads and short circuits. With a breaking capacity of 70 kA, it can handle significant fault currents effectively.</p><p>This model features three poles and utilizes front connection type with bolt terminals, facilitating straightforward installation in varied setups. Its degree of protection is IP20, indicating basic protection against solid objects but not liquids; hence it&#39;s best suited for indoor environments where moisture exposure is minimal.</p><p>In terms of dimensions, the breaker has a width of just 90 mm, allowing it to fit comfortably within compact panels without compromising on space efficiency. Weighing in at only 1.1 kg makes handling and installation manageable by one person if necessary.</p><p>The MCCB adheres to IEC60947-2 standards and approvals, affirming its compliance with international safety and performance benchmarks—a critical factor when considering equipment reliability in demanding scenarios.</p><p>For those concerned about energy efficiency, this circuit breaker incurs minimal power loss at just 3.3 W during operation. It supports main circuit connecting capacities ranging from 32.5 sq-mm to an ample 100 sq-mm—providing versatility for different conductor sizes.</p><p>Designed for compatibility with XT2H systems, this breaker operates seamlessly within these configurations while offering adjustable current settings between 3.5 A and its maximum rating—ensuring tailored protection aligned with specific application needs.</p><p>Rated short-circuit current stands at an adequate threshold of 50 A which aligns well with typical operational demands encountered in practice across various sectors including manufacturing facilities or commercial buildings operating on standard frequencies between either globally recognized rates: namely either fifty hertz frequency bands commonly found throughout Europe Asia Pacific regions alongside sixty hertz sets more prevalent within North American territories respectively thus accommodating diverse geographical installations effortlessly without necessitating additional modifications nor adaptations whatsoever simplifying overall deployment processes considerably thereby enhancing user convenience ultimately delivering peace-of-mind assurance through steadfast dependability inherent unto every aspect associated herewith per se MPN:</p>
