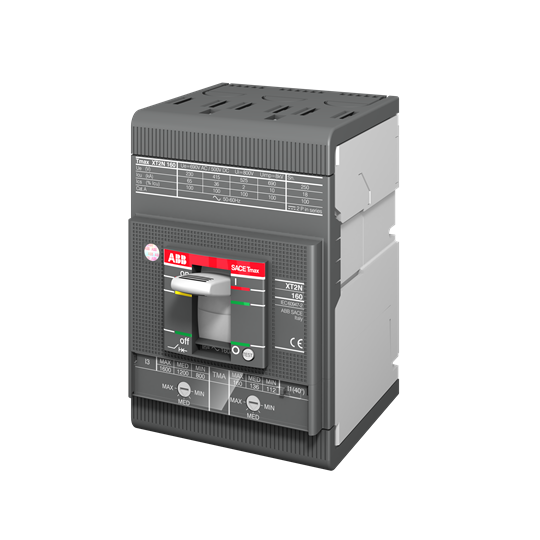

<p>This MCCB (Molded Case Circuit Breaker) is designed to meet the rigorous demands of industrial and commercial environments, offering a reliable solution for electrical protection. With a rated current of 100 A, it provides robust performance suitable for various applications.</p><p>The breaker supports a rated impulse withstand voltage of 8 kV and an insulation voltage of 1000 V, ensuring safety and durability under high-stress conditions. It operates efficiently across both AC and DC systems with rated voltages of 690 VAC and 500 VDC respectively. The device employs a thermal magnetic (TM) release type with a TMG trip unit, allowing precise control over circuit protection.</p><p>This MCCB features three poles and boasts an impressive breaking capacity of 50 kA, making it highly capable in interrupting fault currents without compromising on safety or functionality. It connects via the front using bolt-type terminals, facilitating straightforward installation in diverse setups. The product&#39;s degree of protection is IP20, providing adequate resistance against solid objects while maintaining easy access for maintenance.</p><p>With dimensions including a width of just 90 mm and weighing only 1.1 kg, this compact device integrates seamlessly into existing systems without demanding excessive space or structural adjustments. Its power loss stands at a minimal 8.08 W, contributing to energy-efficient operations.</p><p>Conforming to IEC60947-2 standards ensures that this MCCB meets international safety requirements and quality benchmarks. It operates effectively within a frequency range of 50/60 Hz which aligns well with most global power systems.</p><p>For those seeking compatibility details, this circuit breaker is suitable for use with XT2S units, enhancing its versatility in application scenarios. The current setting range from 70-100 A offers flexibility in adapting to specific load requirements while the main circuit connecting capacity accommodates conductors sized between 32.5-100 sq-mm.</p><p>Overall, this MCCB delivers balanced performance through its combination of technical specifications aimed at safeguarding electrical circuits reliably across varied environments.</p>
